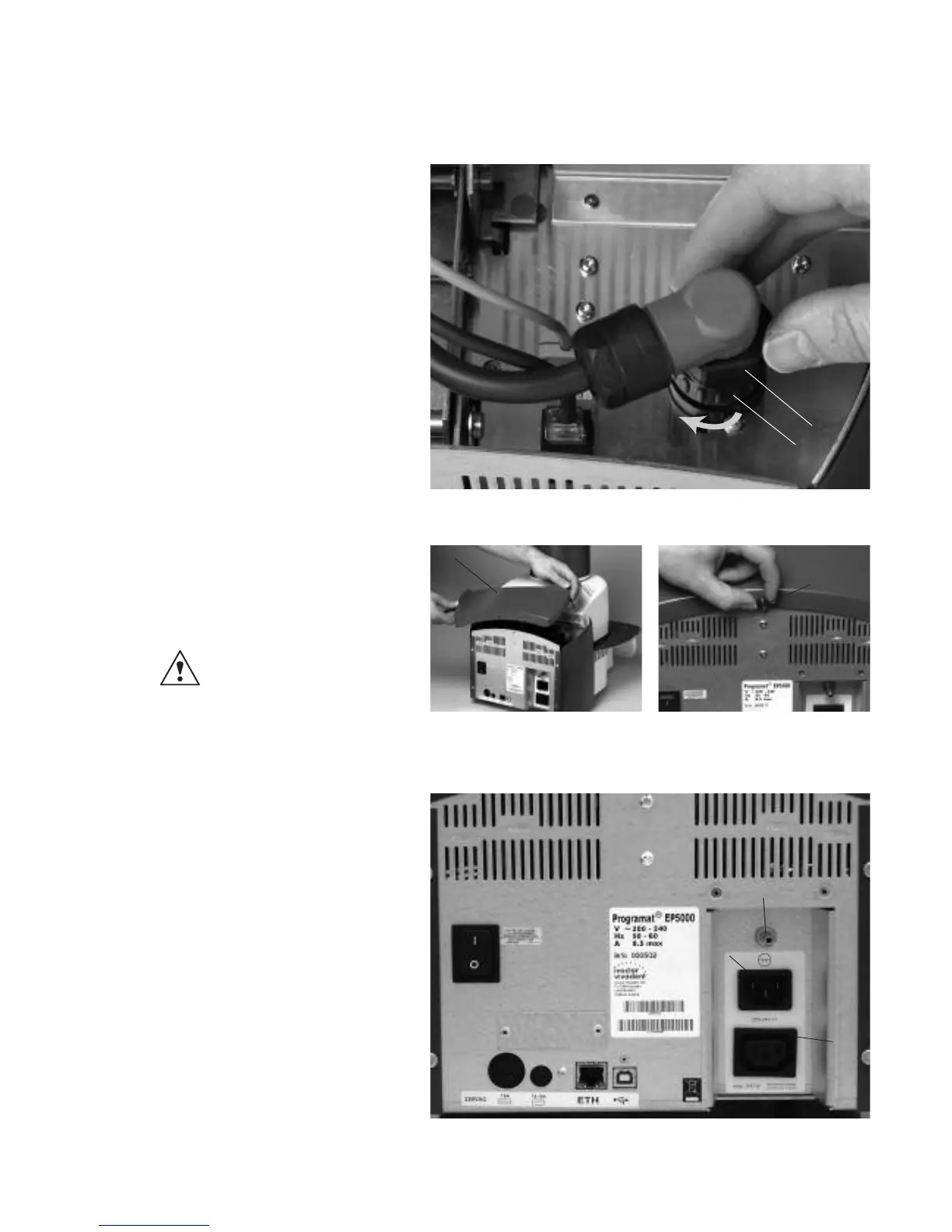

Secure the heater plug (28) with the plug fuse (27)
by turning it until the heater plug (28) has been
secured.
Step 5:
Mounting the hood (36)
Once all cables are properly connected to the
furnace base, the hood (36) can be mounted.
Subsequently, secure the hood with the knurled
screw (37).
The furnace may only be operated with
the hood mounted.
18
17
21
Step 6:
Establishing additional connections
Power connection
Please make sure that the voltage indicated on the
rating plate complies with the local power supply.
Connect the power cord (16) with the power
socket (17) of the furnace.
Vacuum pump connection
Connect the vacuum pump plug with the vacuum
pump socket (18).
We recommend using only the VP4 vacuum pump
from Ivoclar Vivadent, since this pump is especially
coordinated with the furnace.
If other pumps are used, please observe and do not
exceed the maximum power consumption.
27
28
36
37
