MONITOR DESCRIPTION

Model 7600/7800 Operation Manual 17

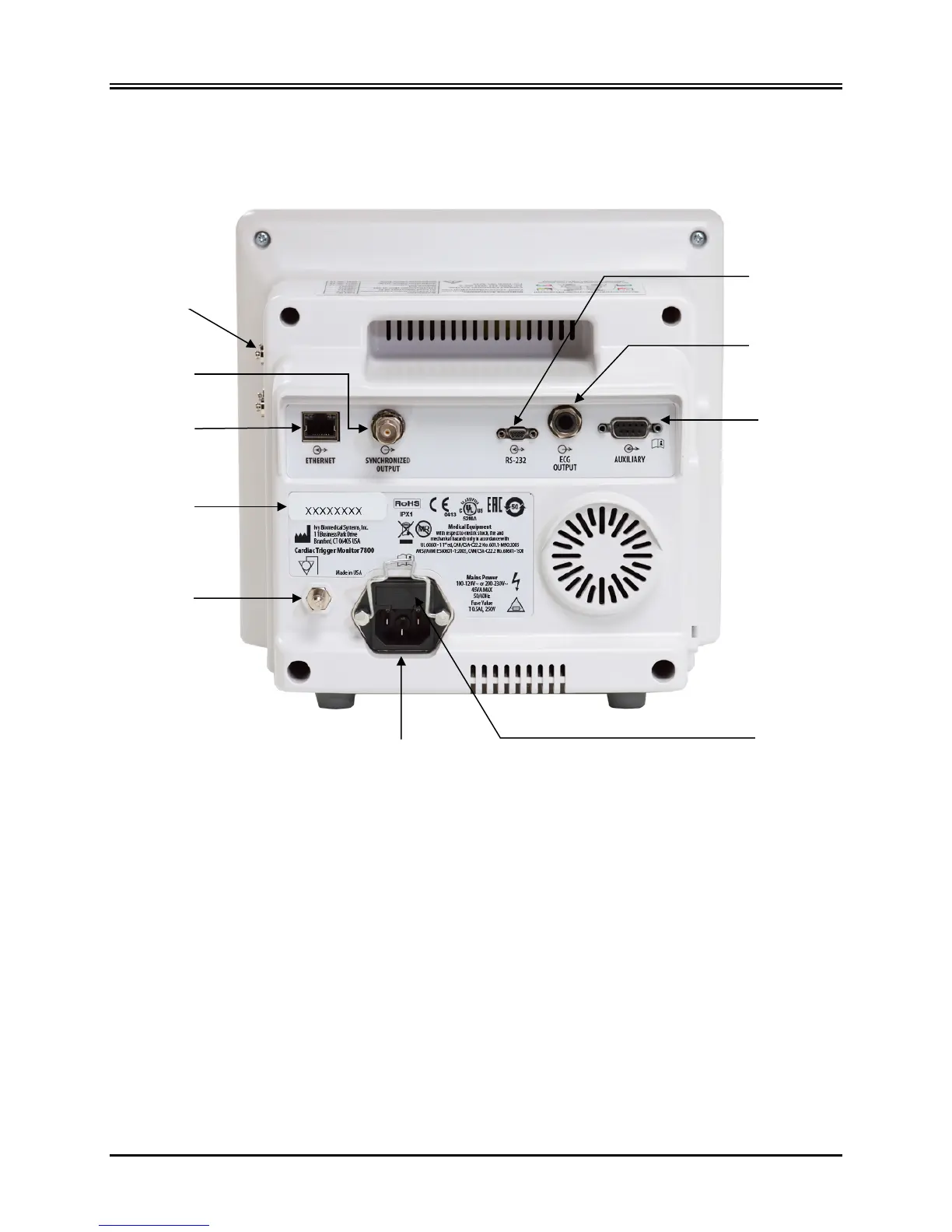

6.10 Rear Panel

Model 7800 shown

6.11 Fuse Ratings

The fuses are located behind the cover of the power entry module. To replace the fuses, unplug the ac power cord.

Remove the power entry module cover and replace the fuse(s) only with same rating and type: T 0.5AL, 250V.

¼” Stereo Jack

ECG OUTPUT

9-Pin micro-D

RS-232

Fuses

(Behind Panel)

PEQ Ground

Power Entry Module

Mains Power Input

Serial Number

Label

RJ45 Connector

ETHERNET

(Model 7800 Only)

BNC Connector

SYNCHRONIZED

OUTPUT

9-pin D-subminiature

AUXILIARY

(Model 7800 Only)

4-Lead ECG Simulator

RA, RL, LL, LA
