RECORDER OPERATION
Model 7600/7800 Operation Manual 35
XRAY (Model 7800 Only) - Xray mode automatically prints 20 seconds of ECG waveform after the
occurrence of an X-ray:
10 seconds before and 10 seconds after the occurrence of an X-ray
12.3 Recorder Speed
Use the following procedure to change the recorder speed.
Press the [SPEED] touch key in the [DISPLAY MENU] select the recorder speed. Selections are 25, and 50
mm/s.
NOTE: The [SPEED] touch key also changes the speed of the ECG trace.

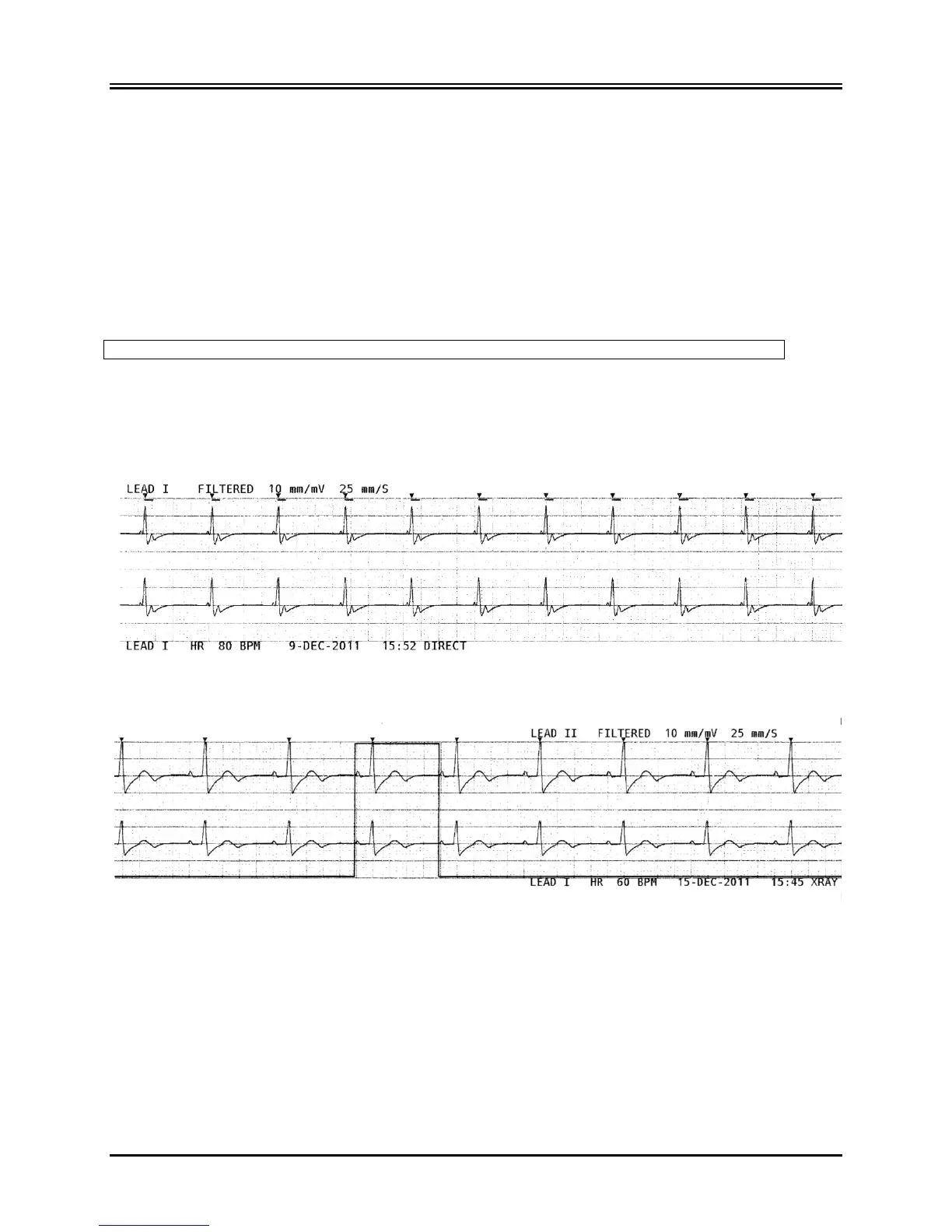

12.4 Sample Printouts
DIRECT Mode:
XRAY Mode (Model 7800 Only):
