10.0 SYSTEM INTERLOCK OPERATION
10.1 X-RAY Status Messages (Model 7800 Only)
When the Model 7800 is interfaced via the rear panel AUXILIARY connector to a CT scanner, the monitor can store
ECG data and transfer this data to a USB Memory Stick.
There are three X-RAY status messages:
1. XRAY ON: The CT Scanner X-Ray is active or “ON”. The Model 7800 will store ECG data during this
time.
2. XRAY OFF: The CT Scanner X-Ray is “OFF”.
3. XRAY DISCONNECT: The Model 7800 and the CT scanner are NOT interfaced correctly.
4. STORING DATA: ECG data is being stored.

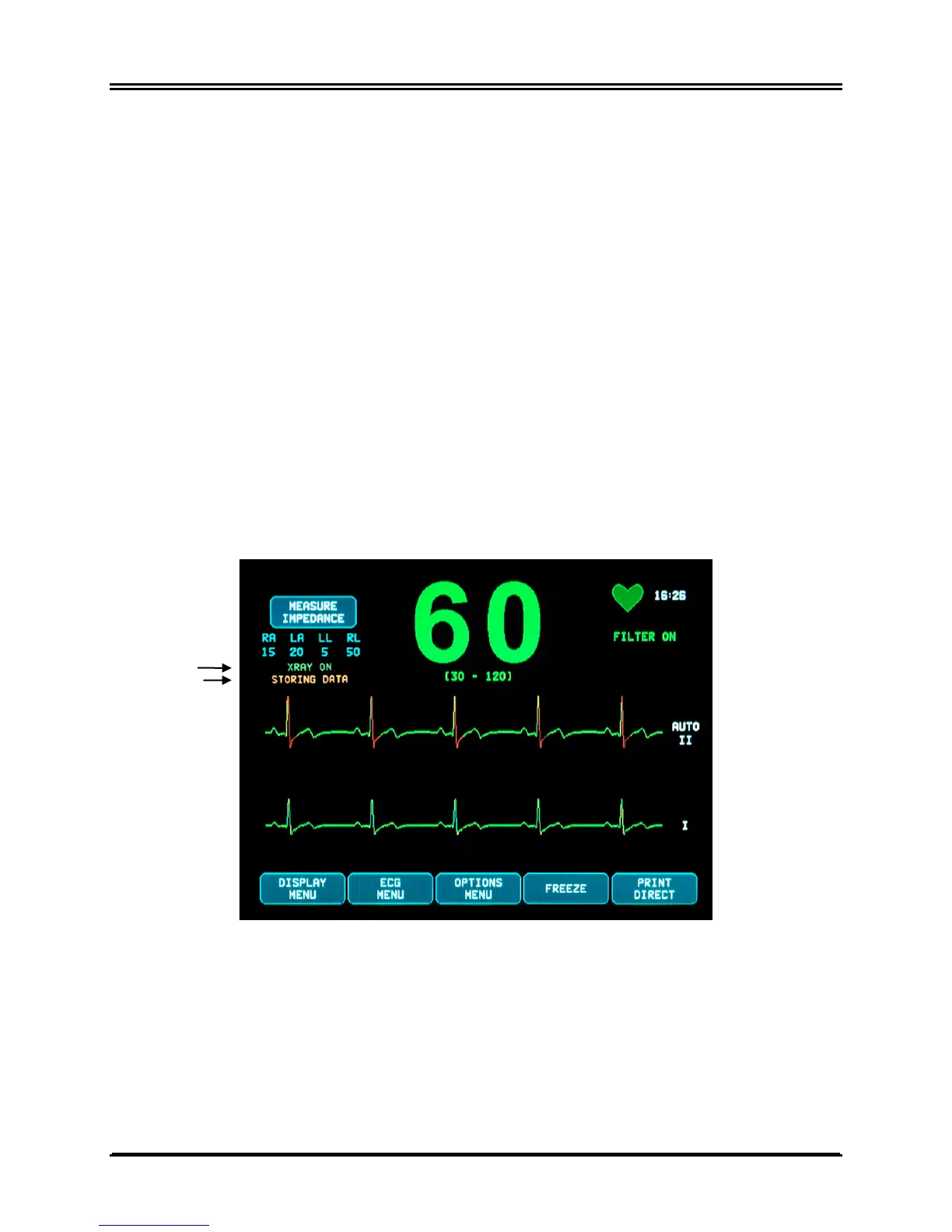

X-RAY Status
STORING DATA
