J2 680 System Manual
Version 1.0 May 11, 2012
The 680 also supports the newer digital video standard DisplayPort connector. This
connector supports a DisplayPort monitor or a HDMI display or DVI monitor. When
used with HMDI or DVI display a passive adapter cable is used. When used with a
HDMI display Audio is support via the same HMDI cable.
The secondary video displays can be configured as a Twin, Intel Dual Display Clone, or
Extended Desktop. Most all monitor resolutions from 640 x 480 to 2560 x 2048 are
supported.
Note that only one external video display is support at a time, either on the VGA video
port or the DisplayPort video port.

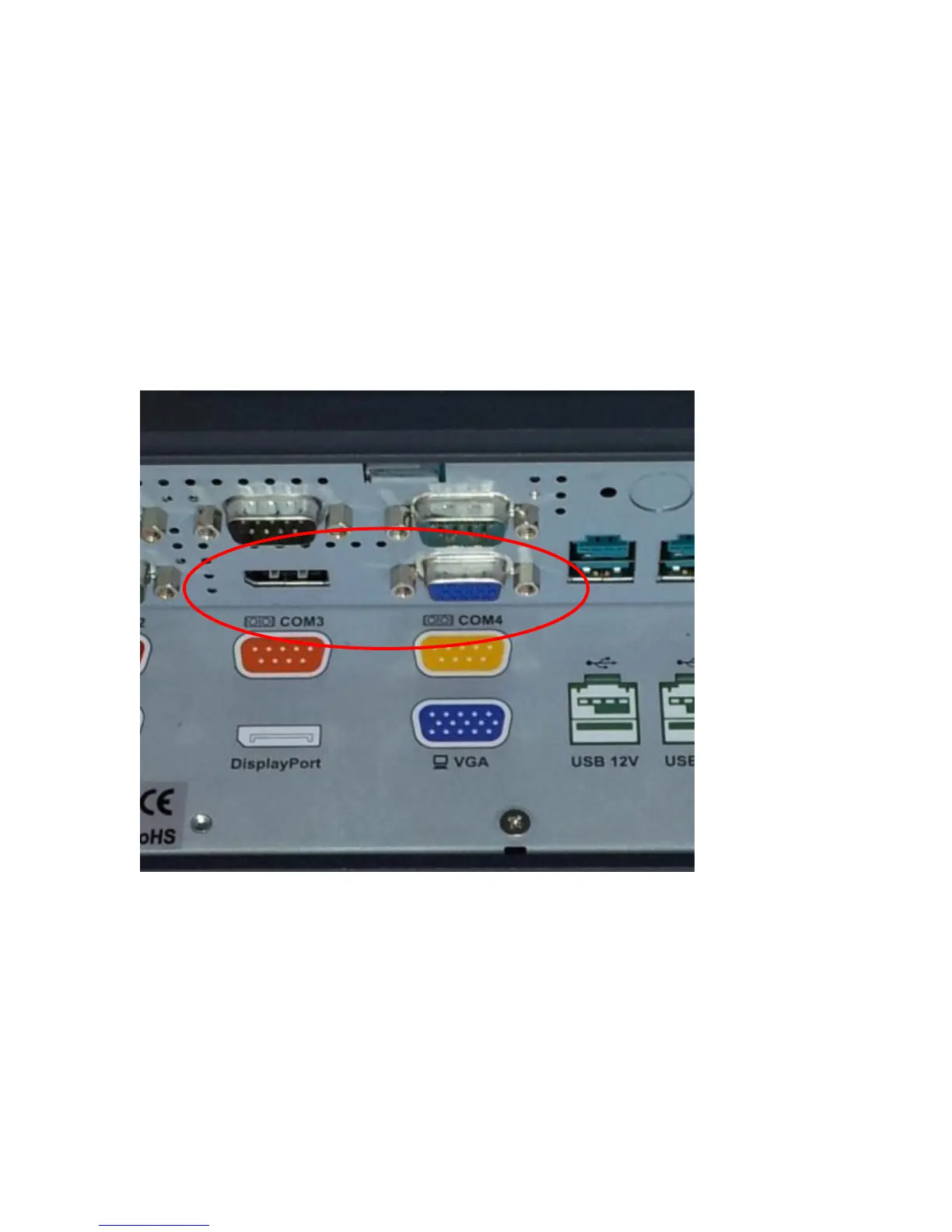

VGA and DisplayPort Video Ports
