J2 680 - Removing the Power Supply Unit

J2 680 System Manual
Version 1.0 May 11, 2012
27
Removing the Power Supply
The power supply is normally located in the counter top base. When using a wall mount
bracket or the J2 UPS, the power supply would be external from the unit.

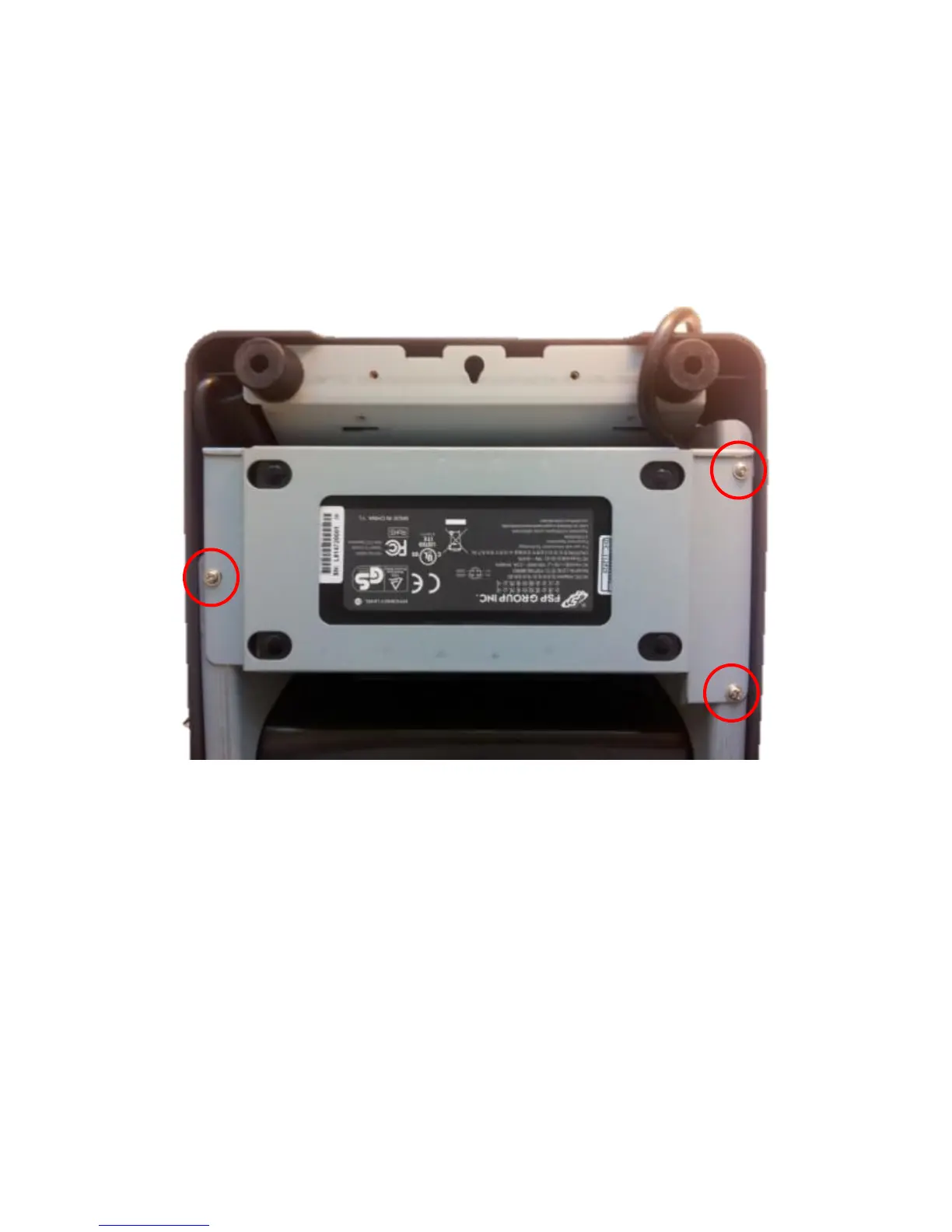

To remove the power supply from the base, three screws needs to be removed as shown.
Screw locations
