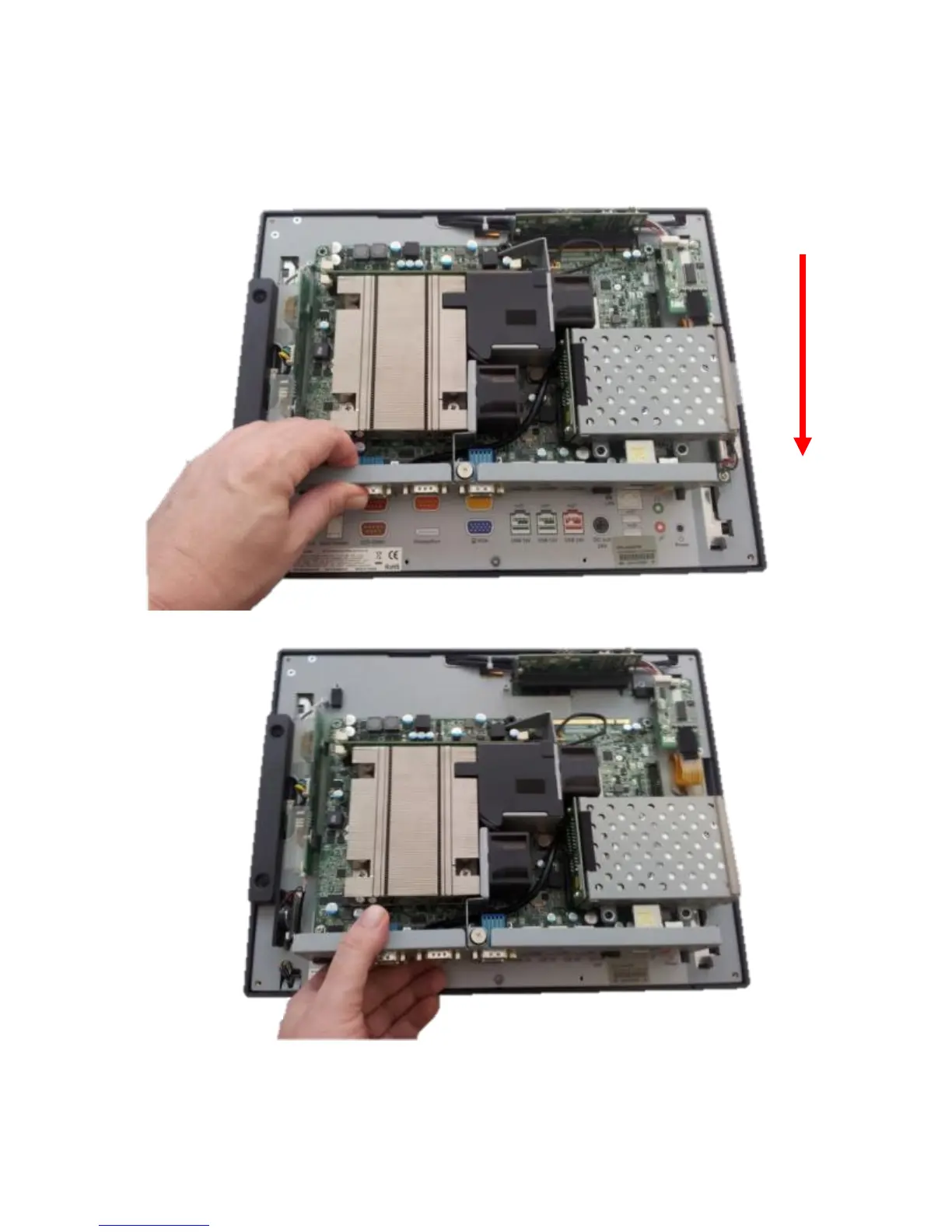

After the screws are removed the system board can be unplugged from its connector.
While using the I/O bracket to pull on, slide the board out towards the bottom of the unit
as shown.
When reinstalling the system board make sure the locking tabs on the bottom of the board
lock into their mating slots.
