Timing – setting the time limits for transmissions and setting the connection checking period.
ARC test – by pressing you will start a manual test to check connection with the respective protocol.
Note – here, you can note details of ARC settings, commencement date of the service etc.
10.11.1 Requrements for the setup of transmission paths to an ARC
The JA-14K(R) control panel can establish transmission paths to the ARCs according to European standards
EN 50136-1 and EN 50136-2. The following table states the individual parameters to comply with a specific ATS
class. There must be full support of the ATS classes on the ARC side.

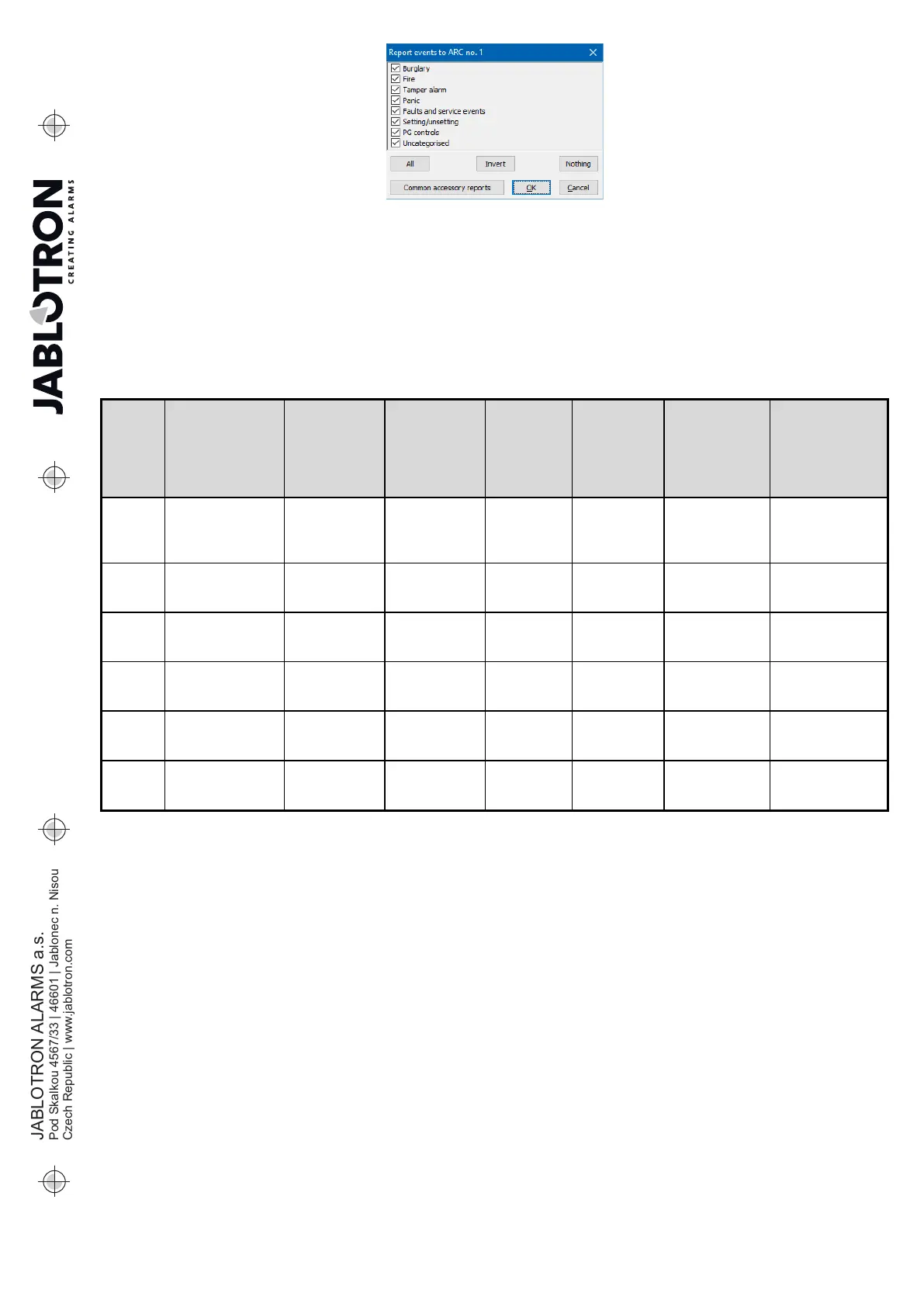

ATS
Class
Useable
interfaces
(Alarm
protocols)
Connection
check at
fixed time
Connection
check time
Fault
when
event
report
delay over
limit
Number of
repeats
Period of
waiting after
an
unsuccessful
attempt
Encryption
System time
Event time
SP2
PSTN / GSM /
LAN
(JABLO IP, SIA
IP, SIA CID)
Optional 1× per 24 hrs 120 s 2 30 s
Optional
Required
Required
SP3
GSM / LAN
(JABLO IP, SIA
IP, SIA CID)
Not allowed 1× 30 min 60 s 2 30 s
Optional
Required
Required
SP4
GSM / LAN
(JABLO IP, SIA
IP)
Not allowed 1× 3 min 60 s 3 20 s
Required
Required
Required
SP5
GSM / LAN
(JABLO IP, SIA
IP)
Not allowed 1× 1 min 30 s 6 5 s
Required
Required
Required
DP2
LAN + PSTN
(JABLO IP, SIA
IP)
Not allowed 1× 30 min 60 s 2 30 s
Optional
Required
Required
DP3
LAN + GSM
(JABLO IP, SIA
IP)
Not allowed 1× 3 min 60 s 3 20 s
Required
Required
Required
10.11.2 Transmission paths
For GSM(GPRS) and LAN communication using IP protocols:
1) Protocol ANSI SIA DC-09, SIA IP (DC9), methods DCS or ADM_CID (data message)
- encryption according to the AES standard with 128, 192 or 256 bit keys
- unique message time stamps inserted
- very precise time synchronization between alarm system and ARC
2) Protocol JABLO_IP (data message)
- Proprietary Jablotron protocol
- 256 bit encryption
- unique message time stamps inserted
- very precise time synchronization between alarm system and ARC
3) JABLO_SMS (data SMS messages)
- based on JABLO_IP protocol with floating data encryption
