FAULTS:
6

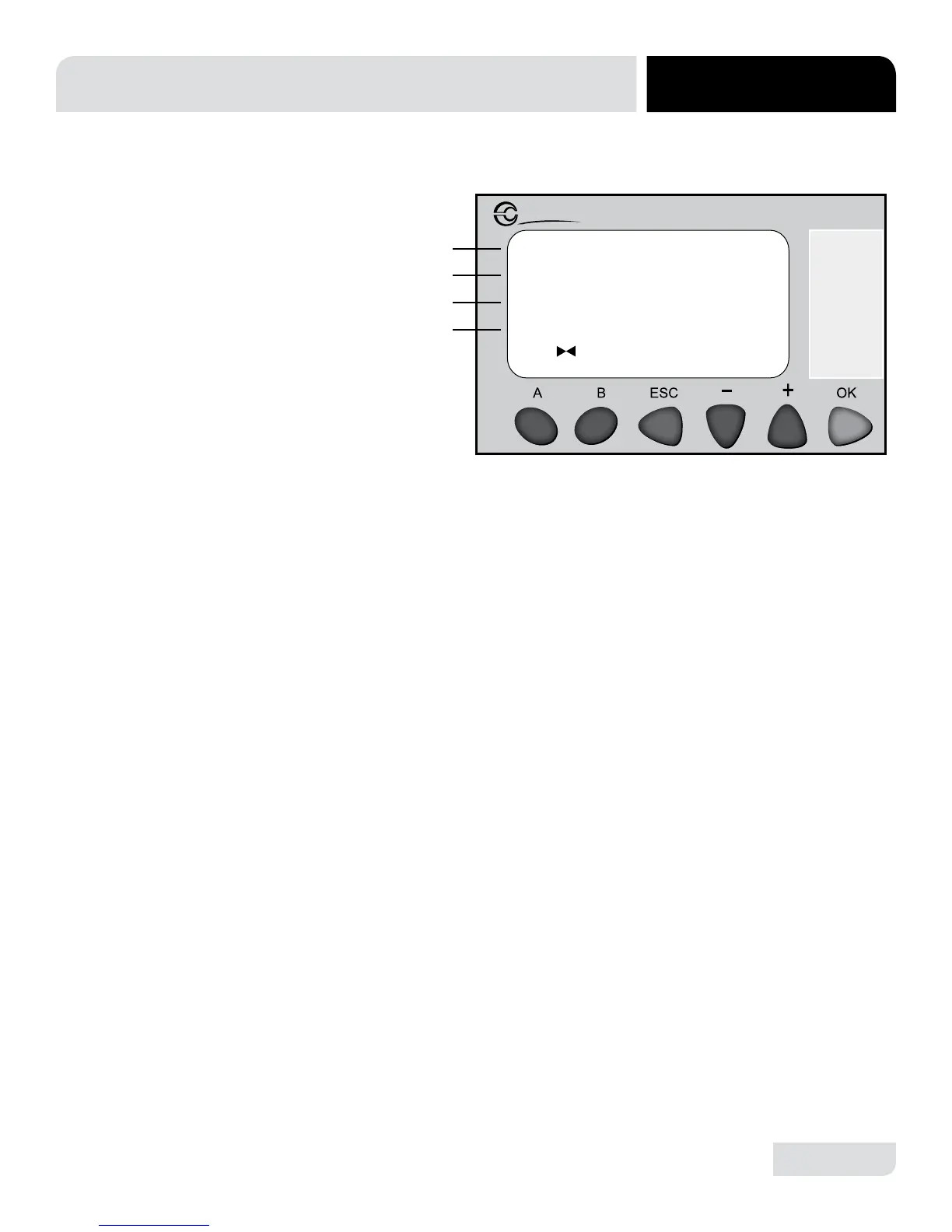

The “Faults” screen will be displayed when the operator has pressed “A” or “B” to cycle
through screens and is intended to show the technician any faults that have occurred.
A
B
C
D
PLC TROUBLESHOOTING
MAINTENANCE
SCREEN 2:
FAULTS
Line C will show any fault observed from previous cycles. The faults will be identied as
1-6 and are detailed below (multiple faults may be active at the same time):
Fault 1: Indicates the horizontal oat switch did not close during the initial ll.
• Open the door and check the water level. If low, turn machine off then
back on to start an additional ll cycle.
Fault 2*: Indicates the vertical oat switch has activated and the machine is overlled.
• To clear this fault verify the water level and remove the standpipe.
• Attempt to drain the machine by cycling power on then off.
• If the machine is not overlled, manually trigger the oat switch and verify
status of input on PLC.
Fault 3: Indicates the horizontal oat switch opened for more than 5 seconds.
• Allow cycle to complete to determine if fault 3 clears.
• If not, open the door and verify the standpipe is fully seated, strainers are
in place, and water level is low.
Fault 4: Indicates Sanisure was active for the maximum wash cycle time.
• Verify incoming water meets minimum temperature and pressure specication.
• Adjustment of rinse tank differential set point may be needed (see screen #7).
• Not applicable for AVENGER LT-E Models.
Fault 5: Indicates fault 4 has been activated for 5 consecutive cycles.
• If fault #5 is active contact technical service for assistance.
• Not applicable for AVENGER LT-E Models.
Fault 6: Indicates the drain cycle has completed and the hortizonal oat switch is still
active.
• Verify standpipe is removed prior to turning machine off.
• Verify water level. If high and standpipe is removed verify there are no
clogs in drain line.
* Faults 2 and 5 will prevent the unit from cycling.
