WASH CYCLE TIMERS:
Wash Time: 00075s
Rinse Time:
Drain Time: 00008s
s
Millenium 3
Crouzet

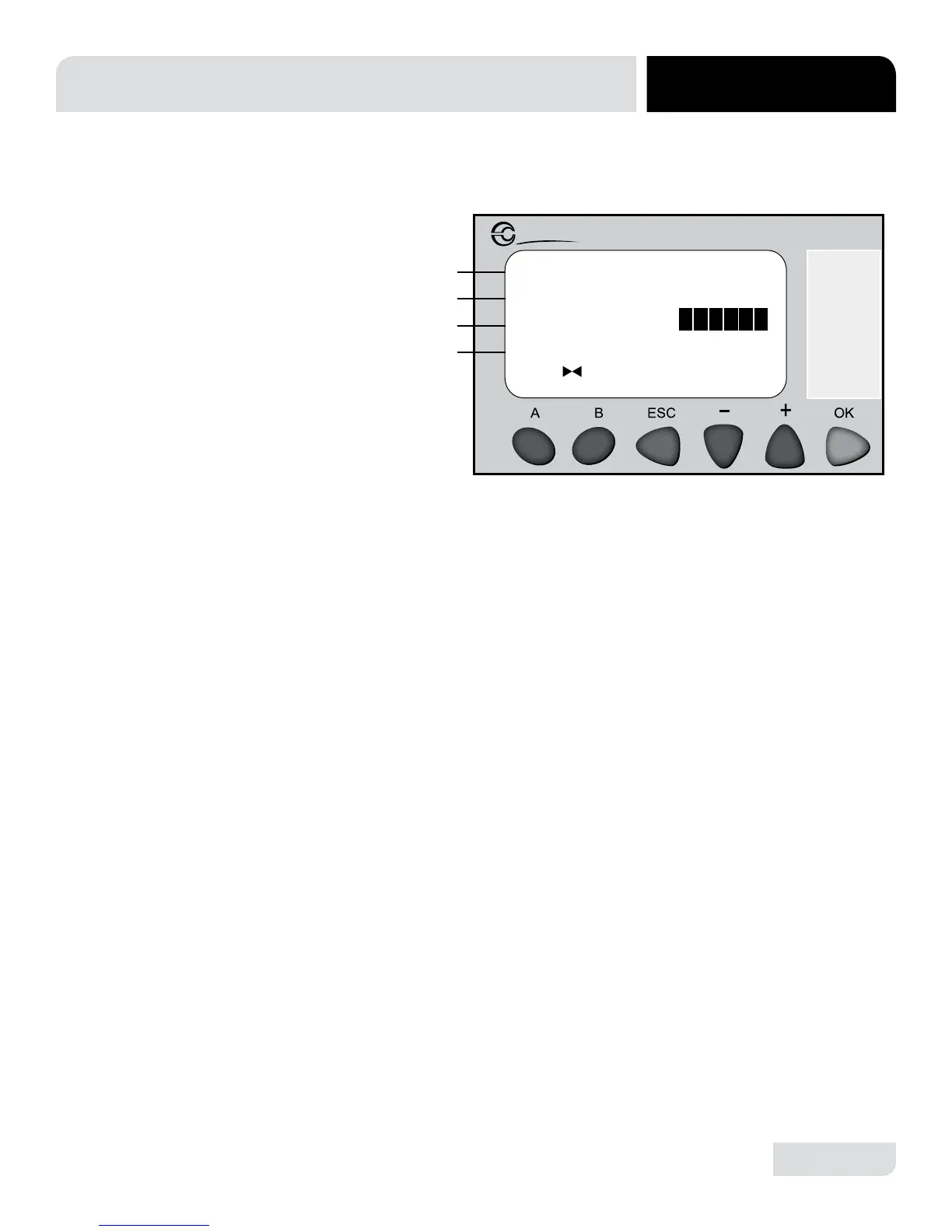

Screen 4 is the rst “Wash Cycle Timers” screen and allows the user to edit the wash,
rinse and drain timers for the initial wash cycle.
A
B
C
D
PLC TROUBLESHOOTING
MAINTENANCE
SCREEN 4:
WASH CYCLE
TIMERS 1
1. Line B shows the wash time.
• Press + or - to highlight line B.
• Press OK to enter highlight mode.
• Press + or - to make any adjustments needed.
* Wash Time: 75 to 268 seconds.
• Press OK to conrm adjustments.
2. Line C shows the rinse time.
• Press + or - to highlight line C.
• Press OK to enter highlight mode.
• Press + or - to make any adjustments needed.
* Rinse Time: 8.5 to 13 seconds.
• Press OK to conrm adjustments.
3. Line D shows the drain time.
• Press + or - to highlight line D.
• Press OK to enter highlight mode.
• Press + or - to make any adjustments needed.
* Drain Time: 8 to 15 seconds.
• Press OK to conrm adjustments.
