Jackson Conserver AXL - Table Dimensions

Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION

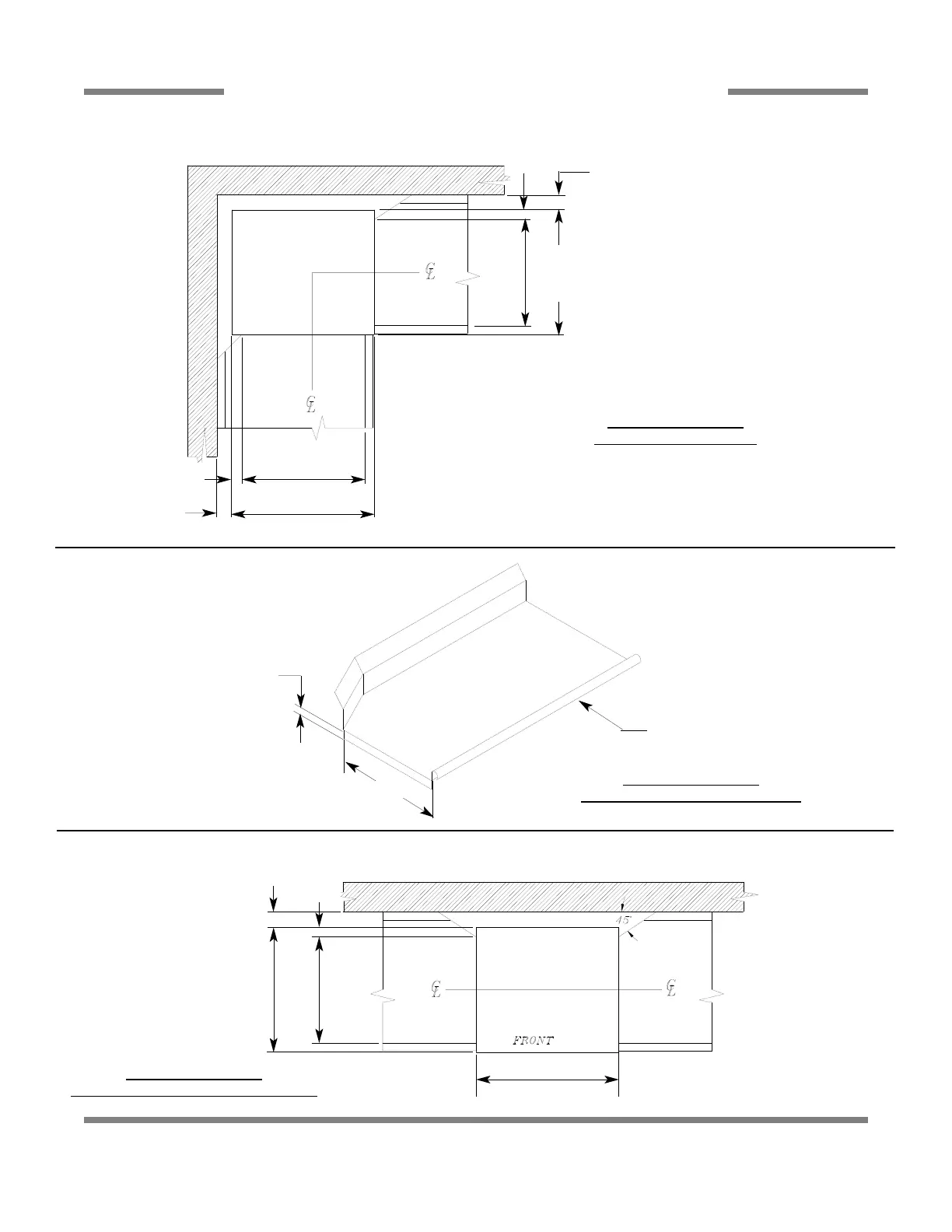

TABLE DIMENSIONS
13
TABLE DIMENSIONS
CORNER INSTALLATION
TABLE DIMENSIONS
CONNECTION TO DISHMACHINE
TABLE DIMENSIONS
STRAIGHT
THROUGH INSTALLATION
20 1/2” (521mm)
OPENING
25 1/4”
(641mm)
2 1/2” (63mm)
4” (102mm)
MINIMUM
2 1/2”
(63mm)
4” (102mm)
MINIMUM
20 1/2” (521mm)
OPENING
25 1/4”
(641mm)
20 1/2” (521mm)
3/4” (19mm)
1 1/2” (381mm) ROLL
4” (102mm)
MINIMUM
2 1/2” (64mm)
25 1/4”
(64.1mm)
20 1/2” (52.1mm)
OPENING
25 1/4” (641mm)
XL SERIES
44” (1117mm)
XL2 SERIES
