Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 5: PARTS SECTION

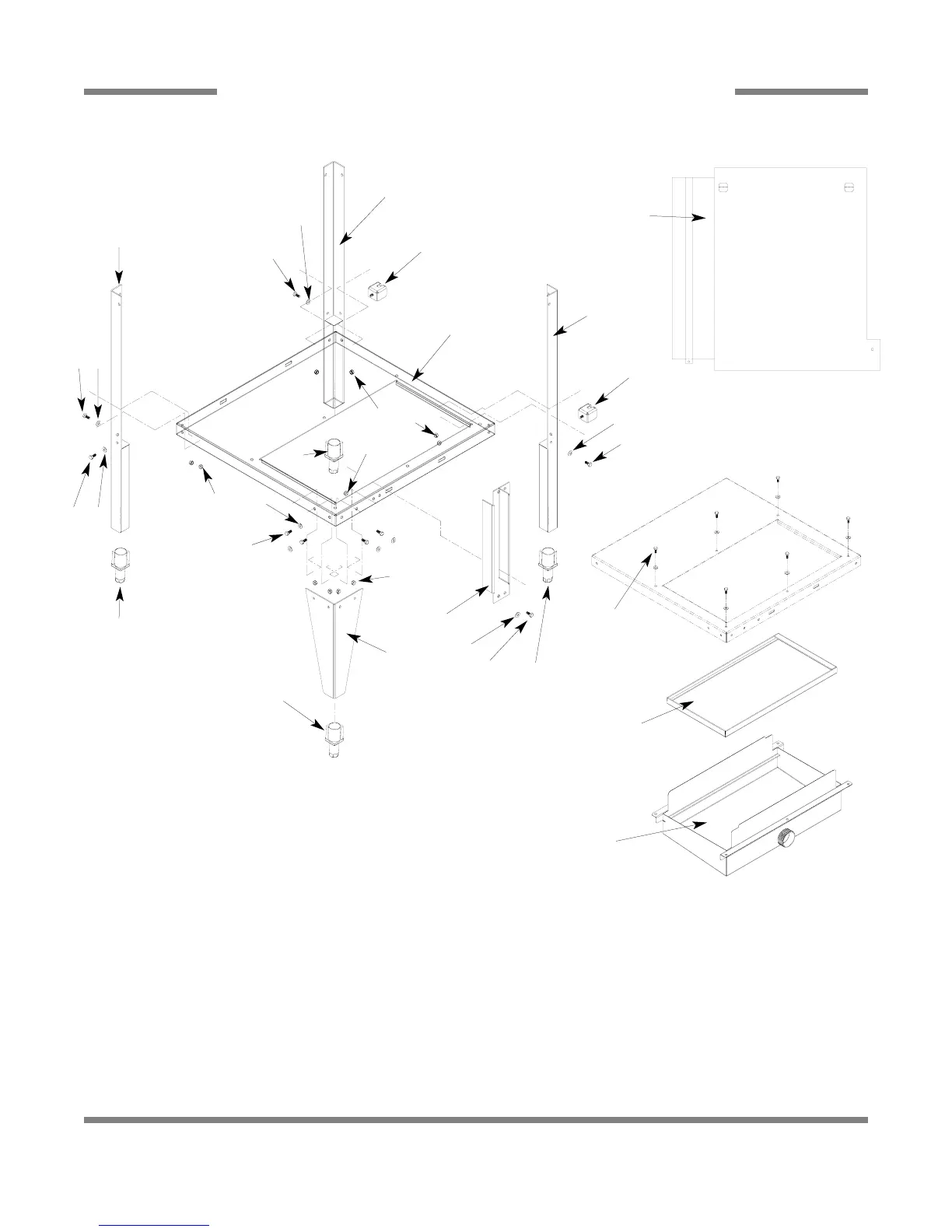

CONSERVER XL FRAME ASSEMBLY & LEFT HANDED FALSE PANEL WELDMENT (Prior to S/N 04D10286)
67
ITEM QTY DESCRIPTION Mfg. No.
1 1 Lower Frame, Conserver XL 05700-001-99-80
2 1 Leg, Front Left Frame Assembly 05700-002-04-36
3 1 Leg, Short, Conserver XL 05700-002-03-72
4 2 Bracket, Spring Mounting 05700-002-04-37
5 1 Tub Support 05700-001-99-83
6 4 Bullet Feet 05340-108-02-06
7 - Bolt, 1/4"-20 x 1/2" Long 05305-274-02-00
8 - Washer, Flat, 1/4" ID 05311-174-01-00
9 11 Locknut, 1/4"-20, with Nylon Insert, S/S 05310-374-01-00
10 1 Leg, Rear Left Frame Assembly 05700-002-24-69
11 1 Leg, Rear Right Frame Assembly 05700-002-23-96
12 1 Left Handed False Panel Weldment 05700-002-30-95
10
4
1
11
4
8
12
7
6
5
8
7
3
9
6
7
8
9
6
9
9 9
8
7
2
8
7
7 8
6
Accumulator Strainer
05700-002-00-38
Accumulator Weldment
05700-002-04-63
7, 8, 9
