Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 5: PARTS SECTION

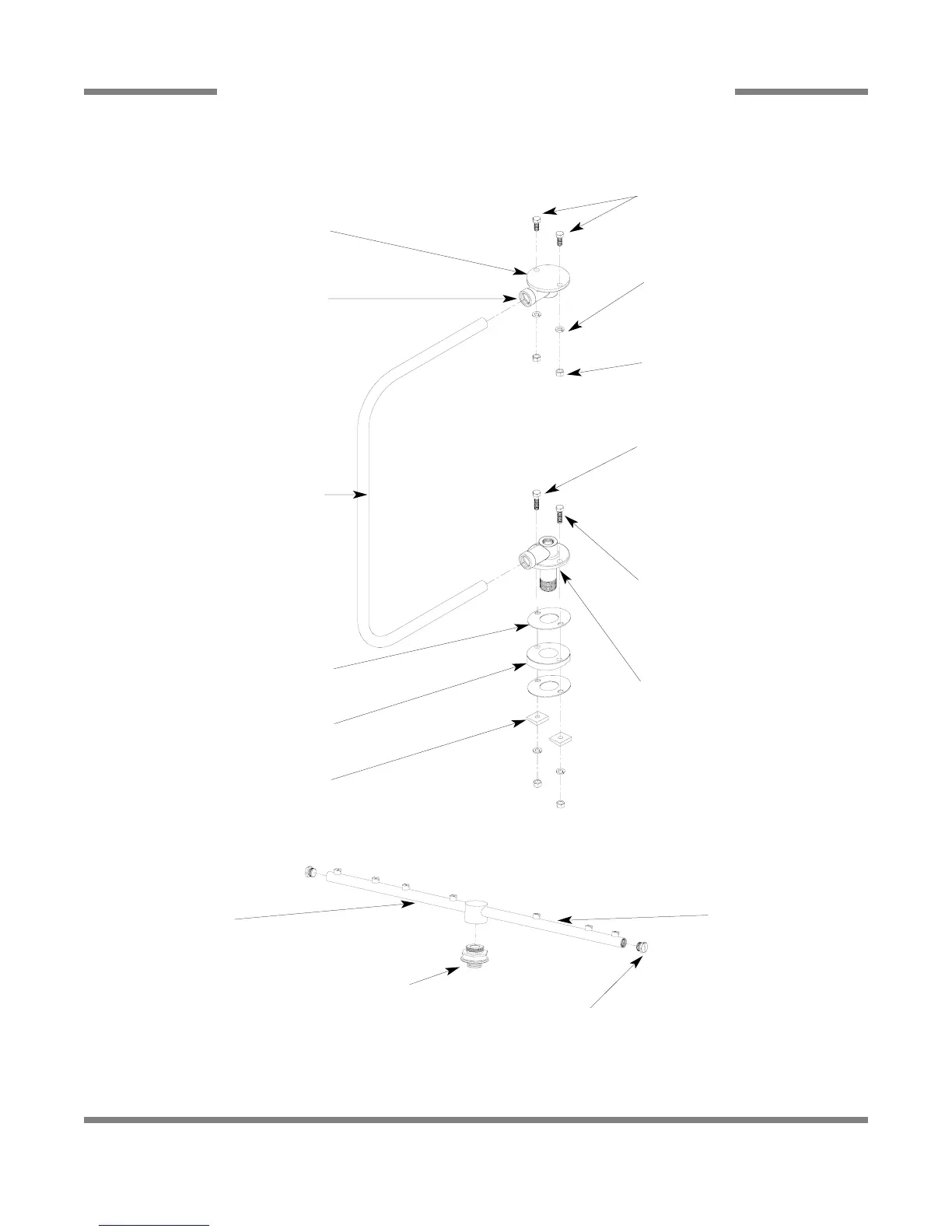

WASH MANIFOLD ASSEMBLY
58
Gasket, Wash Manifold
2 per assembly
05700-111-35-03
Casting, Manifold Wedge
09515-011-46-61
Conserver XL
Weldment, Lower Wash Manifold
05700-002-05-87
Conserver XL2 Series
Weldment, Lower Wash Manifold
05700-031-46-00
Conserver XL
Bolt, 3/8”-16 x 1 1/4” Long
05305-276-10-00
Conserver XL2 Series
Bolt, 3/8”-16 x 1 3/4” Long
05306-011-36-94
Conserver XL
Bolt, 3/8”-16 x 1 3/4” Long
05306-011-36-94
Conserver XL2 Series
Bolt, 3/8”-16 x 2 1/4” Long
05306-011-95-12
3/8” Hex Nut, S/S
4 per assembly
05310-276-01-00
3/8” Lockwasher
4 per assembly
05311-276-01-00
Casting, Upper Wash Manifold
05700-031-34-82
Bolt, 3/8”-16 x 7/8”, Hex Head, S/S
2 per assembly
05306-011-36-95
Washer, 3/8”, Bevel, Square
2 per assembly
05311-011-35-36
O-Ring
2 per assembly
05330-111-35-15
Manifold Tube
(Conserver XL
Prior to S/N 04D10286)
05700-002-00-19
Manifold Tube
(Conserver XL2 Series)
(Conserver XL Starting with
S/N 04D10286)
05700-031-34-59
Manifold Positioning Tube Bracket
05700-011-34-63
Wash Arm End Cap
2 per Wash Arm
05700-011-35-92
Wash Arm Bearing
1 per Wash Arm
05700-021-35-97
Wash Arm O Ring
1 per Wash Arm
05330-002-60-69
Wash Arm Weldment
Conserver XL
2 per unit
05700-021-63-42
Wash Arm Assembly
Conserver XL
2 per unit
05700-021-87-76
Wash Arm Assembly
Conserver XL2 Series
4 per unit
05700-002-57-98
Wash Arm Weldment
Conserver XL2 Series
4 per unit
05700-021-50-96
Complete Manifold Assembly
(1 for Conserver XL and 2 for Conserver XL2 Series)
