Jackson Conserver AXL - Conserver XL Door & Wrap Assemblies (Prior to S;N 04 D10286)

Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 5: PARTS SECTION

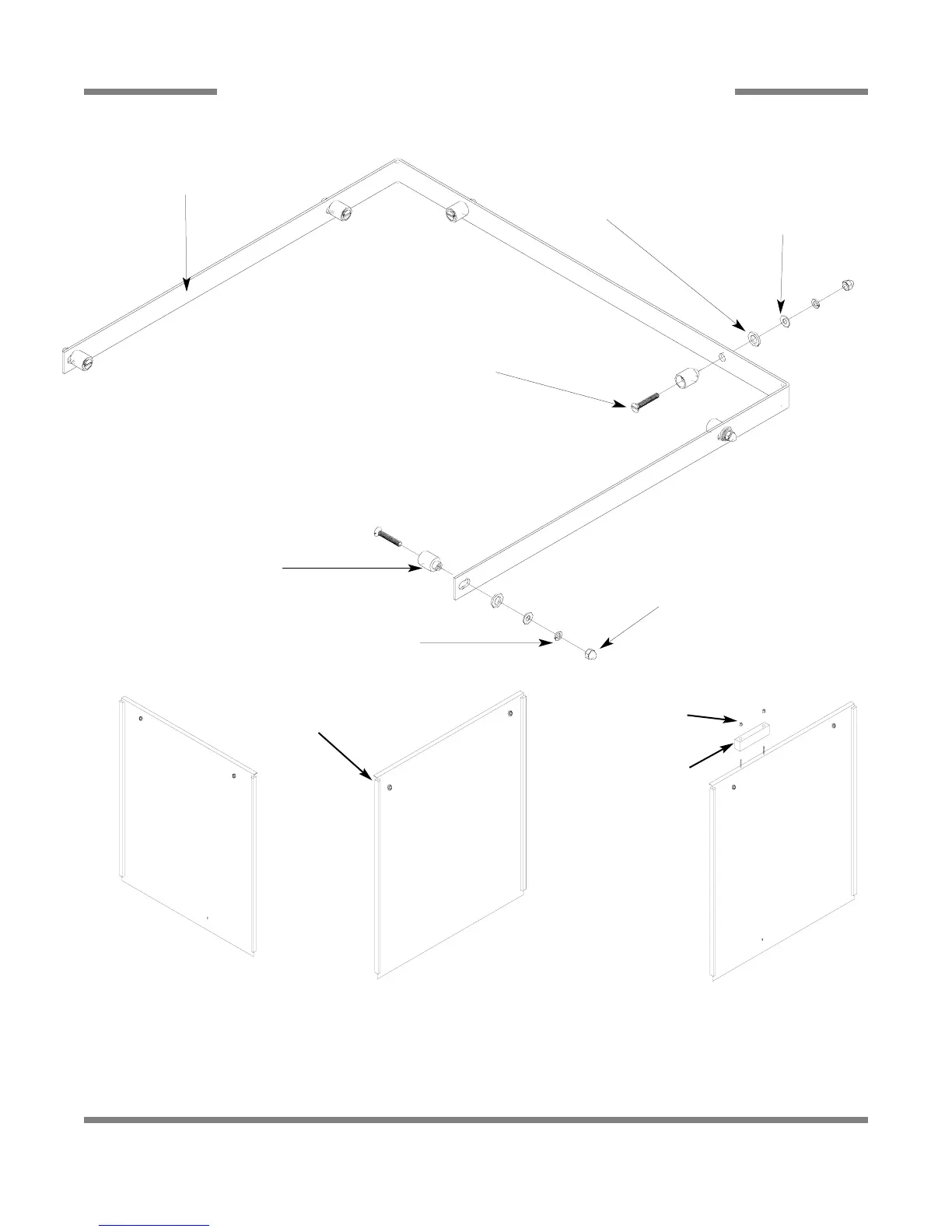

CONSERVER XL DOOR & WRAP ASSEMBLIES (Prior to S/N 04D10286)
66
Nut, Acorn, 1/4"-20
6 per assembly
05310-174-01-00
Washer, Lock, Split, 1/4", S/S
6 per assembly
05311-274-01-00
Screw, Phillips Flathead, 1/4"-20 x 1 1/2"
6 per assembly
05305-011-44-50
Washer, Flat, 1/4", S/S
6 per assembly
05311-174-01-00
Nylon Washer
6 per assembly
05311-369-03-00
Door Wrap
05700-001-99-96
Nylon Door Bushing
6 per assembly
05700-000-86-66
Conserver XL Left Door Assembly
with Door Guides
05700-002-04-51
Conserver XL Left Door
05700-002-03-01
Door Guides
05330-600-02-00
Locknut, 8-32 S/S
Hex with Nylon Insert
05310-272-02-00
Magnet
05930-111-51-68
Conserver XL Front Door Assembly
with Door Guides
05700-002-04-50
Conserver XL Front Door
05700-002-01-28
Conserver XL Right Door Assembly
with all shown parts
05700-002-04-52
