Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 5: PARTS SECTION

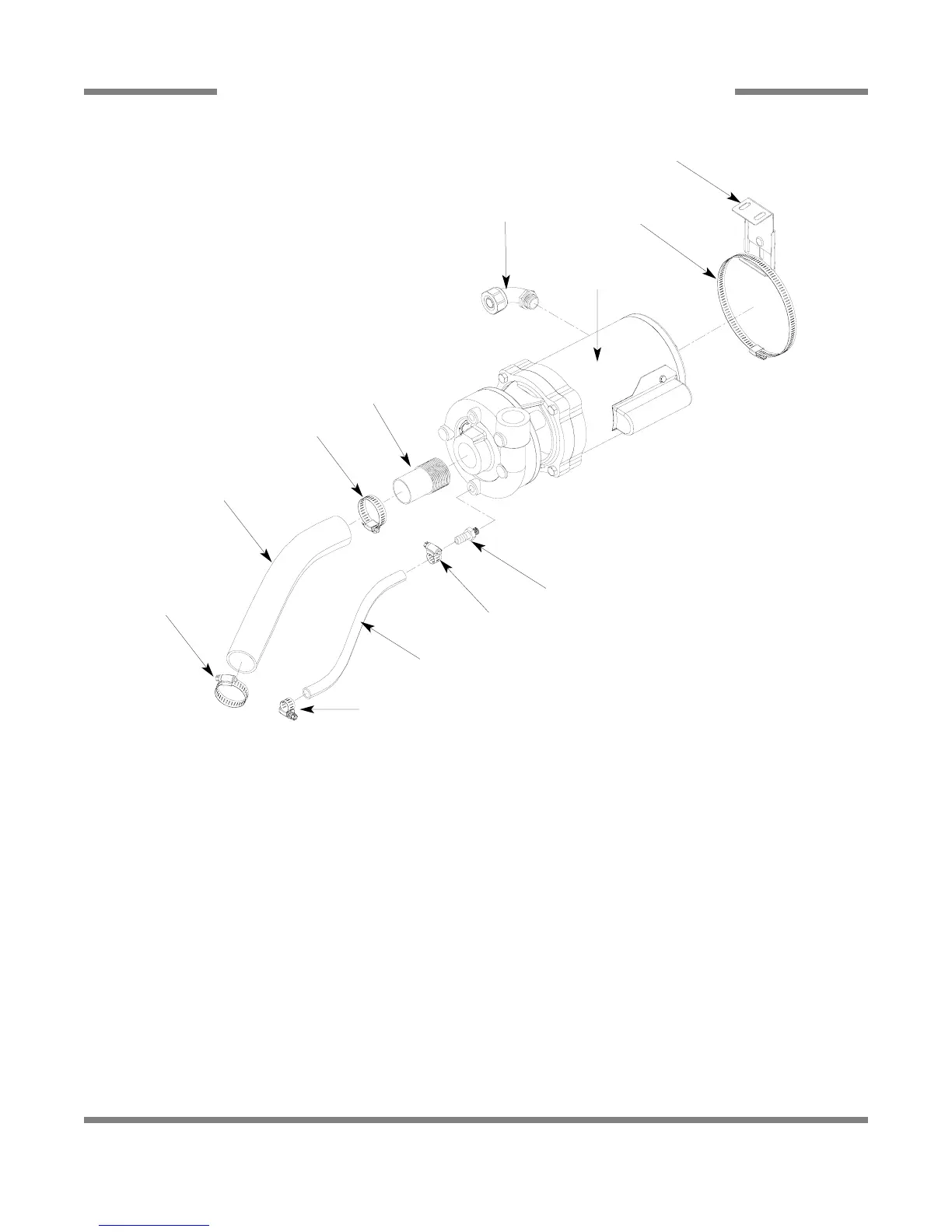

CONSERVER XL WASH MOTOR ASSEMBLY
56
ITEM QTY DESCRIPTION Mfg. No.
1 1 Pump & Motor Assembly, 50 HZ 06105-002-19-87
1 Pump Assembly, 50 HZ 05700-002-85-38
1 Motor Assembly, 50 HZ 06105-002-85-36
1 1 Pump & Motor Assembly, 60 HZ 06105-002-69-78
1 Pump Assembly, 60 HZ 05700-002-79-51
1 Motor Assembly, 60 HZ 06105-002-79-61
2 1 Pump Support Assembly 05700-002-05-88
3 1 Nipple, Pump Outlet 05700-021-33-50
4 2 Clamp, 1 5/16" to 2 1/4" 04730-719-01-37
5 1 Fitting, Brass Elbow 04730-002-18-96
6 2 Clamp, 7/16" to 25/32" 04730-011-36-05
7 1 Hose, 3/8" ID x 12" Long (115 Volt Machine) 05700-002-69-73
7 1 Hose, 3/8" ID x 14" Long (240 Volt Machine) 05700-002-04-40
8 1 Hose, 1 1/2" ID x 7 3/4" Long 05700-111-33-52
9 1 Connector, Liquidtite, 90° 05975-111-01-00
10 1 Clamp, 5 5/8" to 6" 04730-011-34-90
11 2 Locknut, 1/4"-20, with Nylon Insert, S/S 05310-374-01-00
10
1
9
3
4
8
4
6
6
7
5
2
