Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 6: ELECTRICAL SCHEMATICS

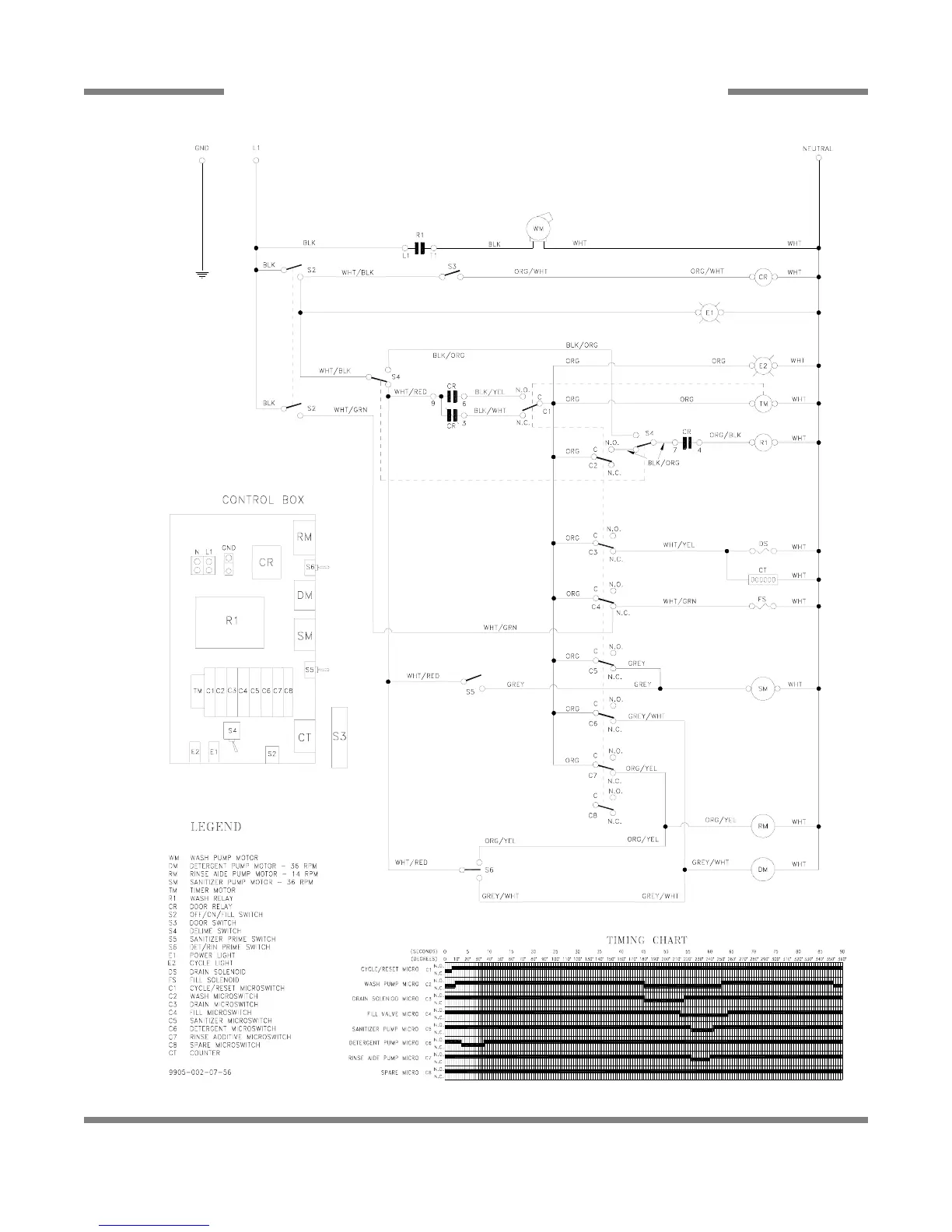

CONSERVER XL (MECHANICAL TIMER) 115 VOLT - 60 HERTZ - SINGLE PHASE
76
