Jackson Conserver AXL - Drain Solenoid Assembly

Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 5: PARTS SECTION

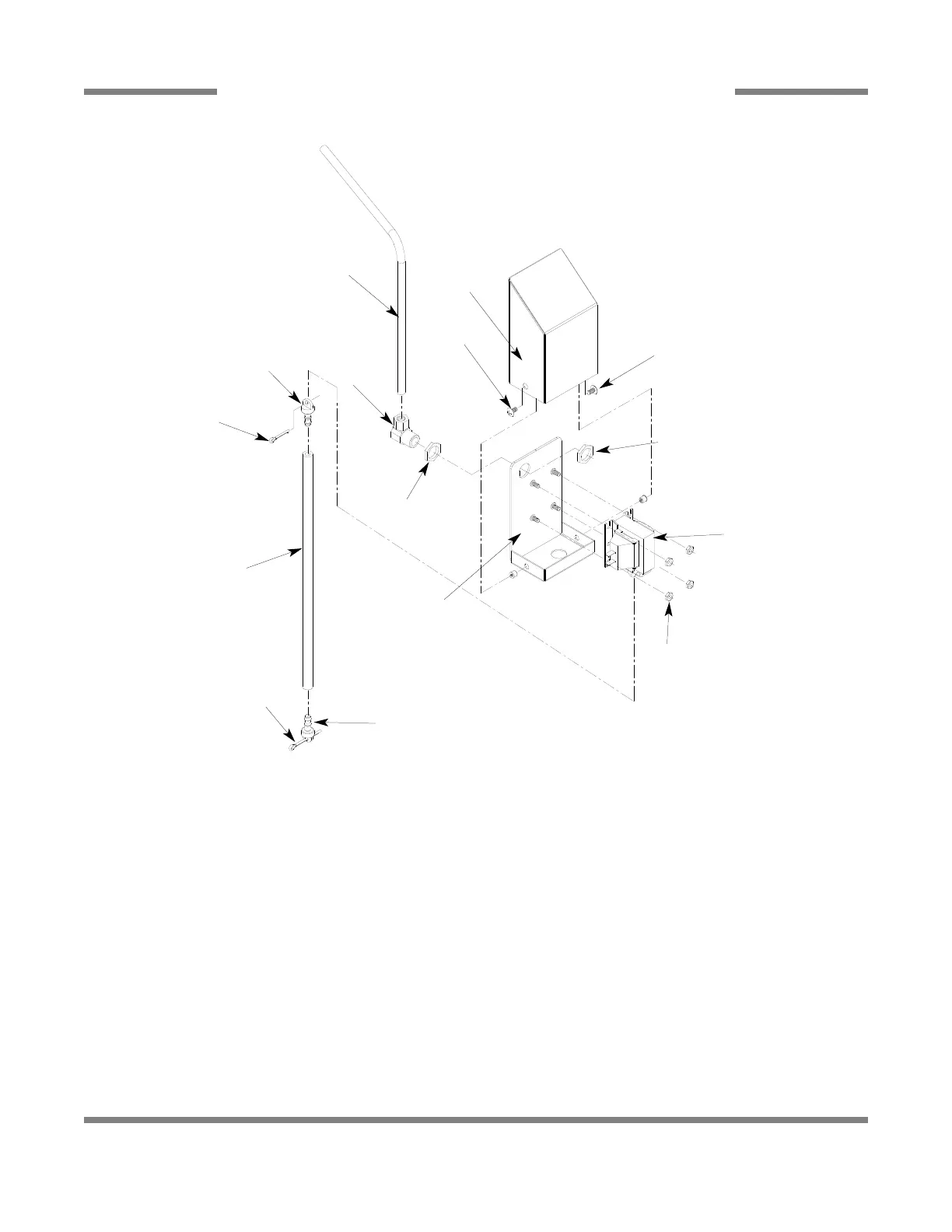

DRAIN SOLENOID ASSEMBLY
59
ITEM QTY DESCRIPTION Mfg. No.
1 1 Solenoid Bracket Weldment, Conserver XL (Prior to S/N 04D10286) 05700-002-05-91
1 1 Solenoid Housing Weldment, Conserver XL (Starting with S/N 04D10286) 05700-002-79-29
2 1 Elbow, 3/8" Tube x 3/8"-18 NPT 04730-206-23-00
3 2 Locknut, Brass, 3/8"-18 NPT 05700-000-66-01
4 4 Locknut, 10-24 S/S Hex with Nylon Insert 05310-373-01-00
5 2 Cotter Pin, 3/32 x 3/4" Long 05315-207-01-00
6 1 Drain, Solenoid, 115 V 04810-200-11-00
6 1 Kit, Drain, Solenoid, 115 V 06401-003-08-58
6 1 Drain, Solenoid, 240 V 04810-111-87-74
6 1 Kit, Drain, Solenoid, 240 V 06401-003-08-59
7 1 Cover, Solenoid Weldment 05700-002-05-90
8 2 Screw, 10-24 x 3/8", Phillips Head 05305-173-03-00
9 1 Solenoid Conduit,Conserver XL (Prior to S/N 04D10286) 05700-002-04-55
9 1 Solenoid Conduit,Conserver XL (Starting with S/N 04D10286) 05700-002-92-47
10 2 Hose Eye 05700-002-05-61
11 1 Hose, Plunger Link 05700-002-05-70
