Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 5: PARTS SECTION

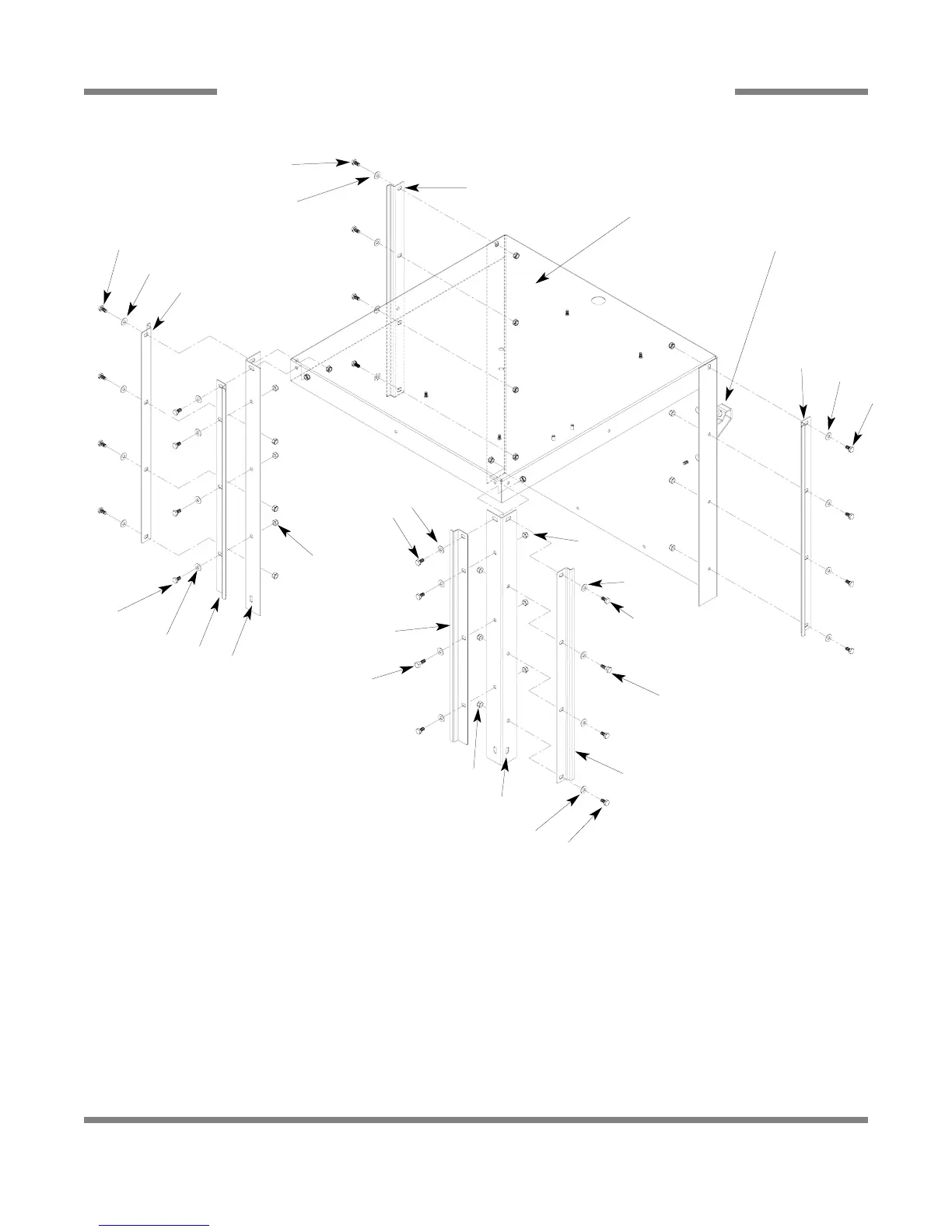

CONSERVER XL HOOD ASSEMBLY (Prior to S/N 04D10286)
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hood Weldment 05700-002-04-44
2 1 Support, Left, Hood 05700-002-00-18
3 1 Support, Right, Hood 05700-002-00-17
4 1 Right Door Guide 05700-002-05-74
5 1 Left Door Guide 05700-002-05-75
6 4 Door Guide 05700-002-05-73
7 26 Locknut, 1/4"-20 with Nylon Insert, S/S 05310-374-01-00
8 26 Washer, 1/4"-20 05311-174-01-00
9 22 Bolt, 1/4"-20 x 1/2" Long 05305-274-02-00
10 2 Bolt, 1/4"-20 x 3/4" Long 05305-274-04-00
11 2 Support Bracket 09515-003-15-64
11 6 Wear Buttons 05700-011-88-01
11
6
8
9
1
9
8
6
9
8
6
9
8
5
2
2
8
9
4
10
7
3
6
10
9
8
7
8
9
65
