Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 5: PARTS SECTION

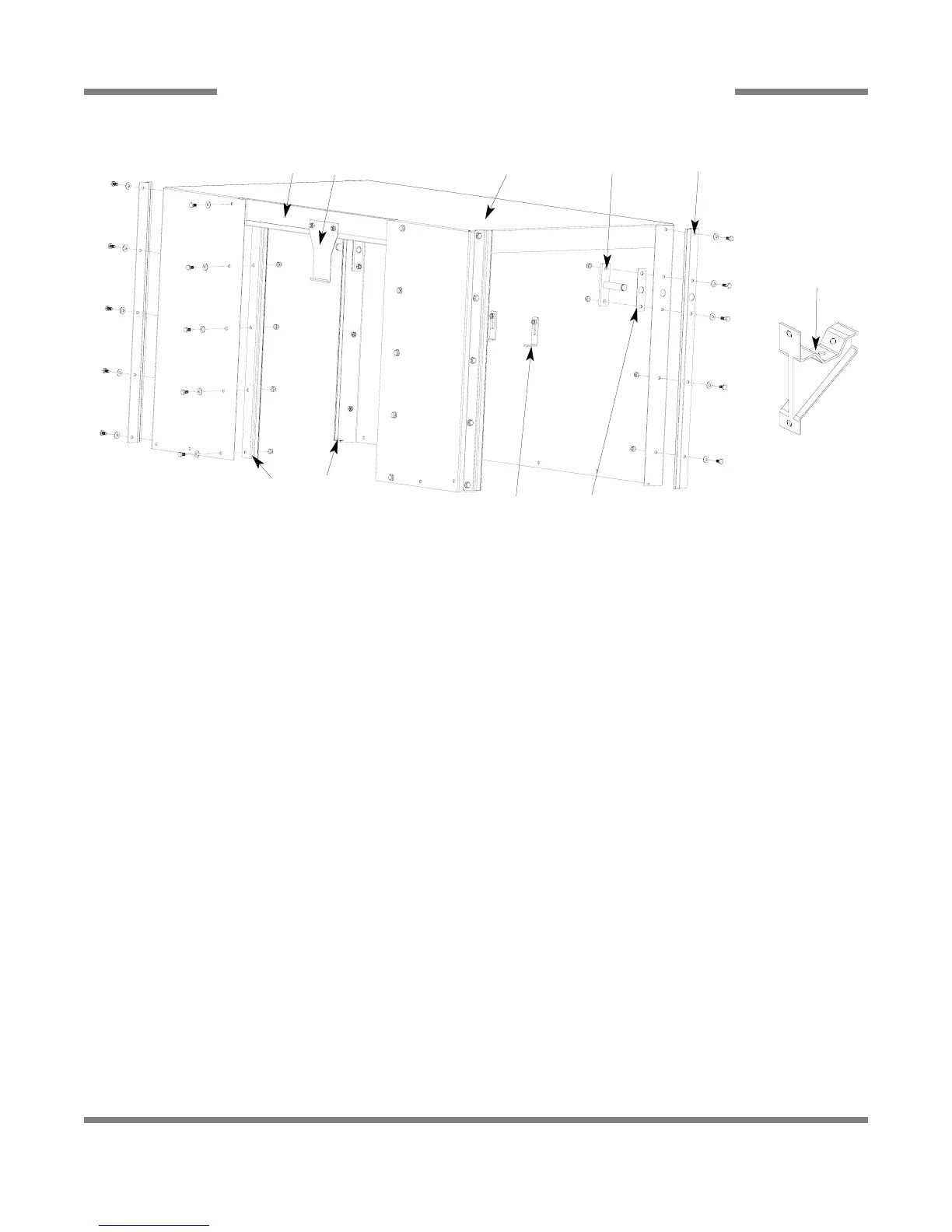

CONSERVER XL2 HOOD ASSEMBLY
46
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hood Weldment, Conserver XL2 - Old Style 05700-002-21-67
1 1 Hood Weldment, Conserver XL2 - New Style 05700-002-60-76
1 1 Hood Weldment, Conserver AXL2 05700-003-25-05
2 4 Door Guide 05700-021-44-94
3 1 Door Guide, Left Rear 05700-021-33-16
4 1 Door Guide, Right Rear 05700-021-33-15
5 2 Arm Support Weldment 05700-011-43-52
6 2 Arm Support Weldment Gasket 05700-111-36-01
7* 1 Front Door Stop (Not Shown) 05700-021-60-27
8* 1 Stiffener, Hood Support (Not Shown) 05700-002-47-39
9 2 Manifold L-Bracket 05700-011-34-63
10 1 Door Catch 05700-011-46-50
11 1 Hood Stiffener 05700-002-08-24
12* 2 Bracket, Cantilever Support 09515-003-15-64
13* 6 Wear Button 05700-011-88-01
14 1 Door Guide, Left Rear, New Style 05700-021-84-71
15 1 Door Guide, Right Rear, New Style 05700-021-84-70
1
2
3
6
4
5
11 10
9
12, 13*
OLD STYLE: If your unit uses items 5 and 6, it is the old style hood weldment. Items 3 thru 6 are used only with the old style Hood Weldment.
The hood will have the proper mounting holes in the rear door guides and in the hood itself.
NEW STYLE: If your unit does not use items 5 and 6, then it is the new style hood weldment. Items 12 thru 15 are used only with the new
style Hood Weldment. The hood will have two places on the back of the hood to attach the cantilever support bracket assembly shown above
to the right.
