Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 5: PARTS SECTION

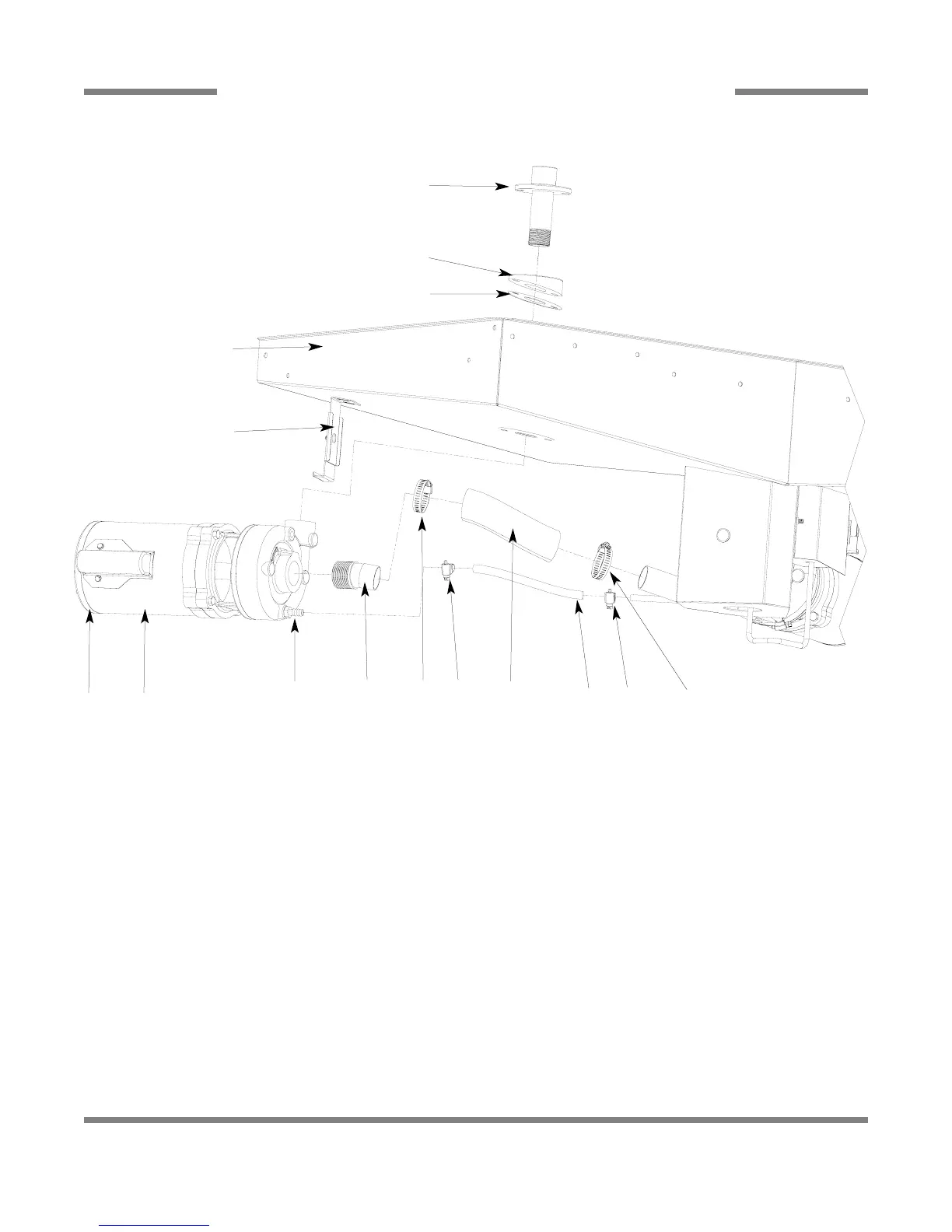

CONSERVER XL2 TUB ASSEMBLY (LEFT FRONT VIEW)
51
ITEM QTY DESCRIPTION Mfg. No.
1 2 Lower Wash Manifold Weldment 05700-031-46-00
2 2 Casting, Manifold Wedge 09515-011-46-61
3 4 Manifold Gasket 05700-111-35-03
4 1 Wash Tub Weldment 05700-002-21-50
5 2 Wash Motor Support Assembly 05700-021-66-48
1 Bracket, Pump Support Weldment 05700-021-66-47
1 Bracket, Lower Pump Support 05700-021-66-46
1 Nut, 1/4"-20 Serrated Nut 05310-011-66-49
6 2 Wash Motor 60 Cycle 06105-002-69-78
7 1 Fitting, Brass Elbow 04730-002-18-96
8 2 Pump Inlet Nipple 05700-021-46-84
9 4 Hose Clamp, Regular, 1 5/16" - 2 1/4" 04730-719-01-37
10 4 Hose Clamp, Mini, 7/16" - 25/32" 04730-011-36-05
11 2 Hose, 1 1/2" ID x 7 3/4" Long 05700-111-33-52
12 2 Hose, 3/8" ID x 12" Long 05700-002-69-73
13 2 Hose Clamp, Regular, 5 5/8" - 6" 04730-011-34-90
1
2
3
4
5
13
6
7
8
9
10 11
12 10
9
