SPECIFICATIONS AND GENERAL INFORMATION
2
Machine Identification
Machine Serial Number

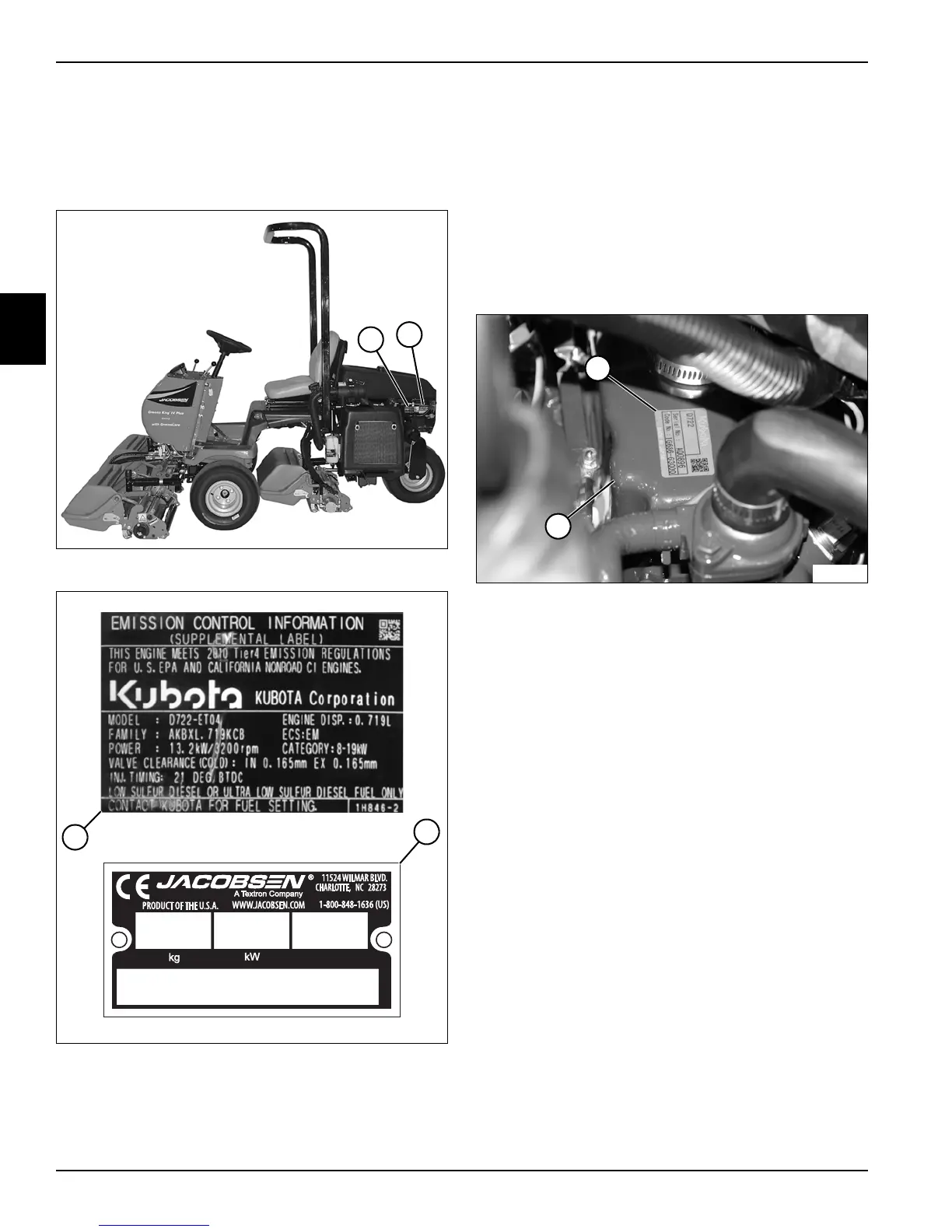

See Figures 2-1 and 2-2.
Figure 2-1
Figure 2-2
A machine emission control information label (1) lists the
engine model and family along with other specifications.
The serial number plate (2), which includes the machine
model number and weight, attaches to the rear frame of
the mower near the steering yoke. Always provide the
serial number of the machine when ordering replacement
parts or requesting service information.
Engine Serial Number (Diesel)
See Figure 2-3.
Figure 2-3
The engine serial number plate (1) is attached to the top
of the rocker arm cover (2). The plate also includes the
engine model number and the engine code number.
TN3242
1
2
TN3245, TN3243
1
2
TN3244
1
2
