Jacobsen 62287 - Page 53

ENGINE
4247530-Rev A 3-19
3

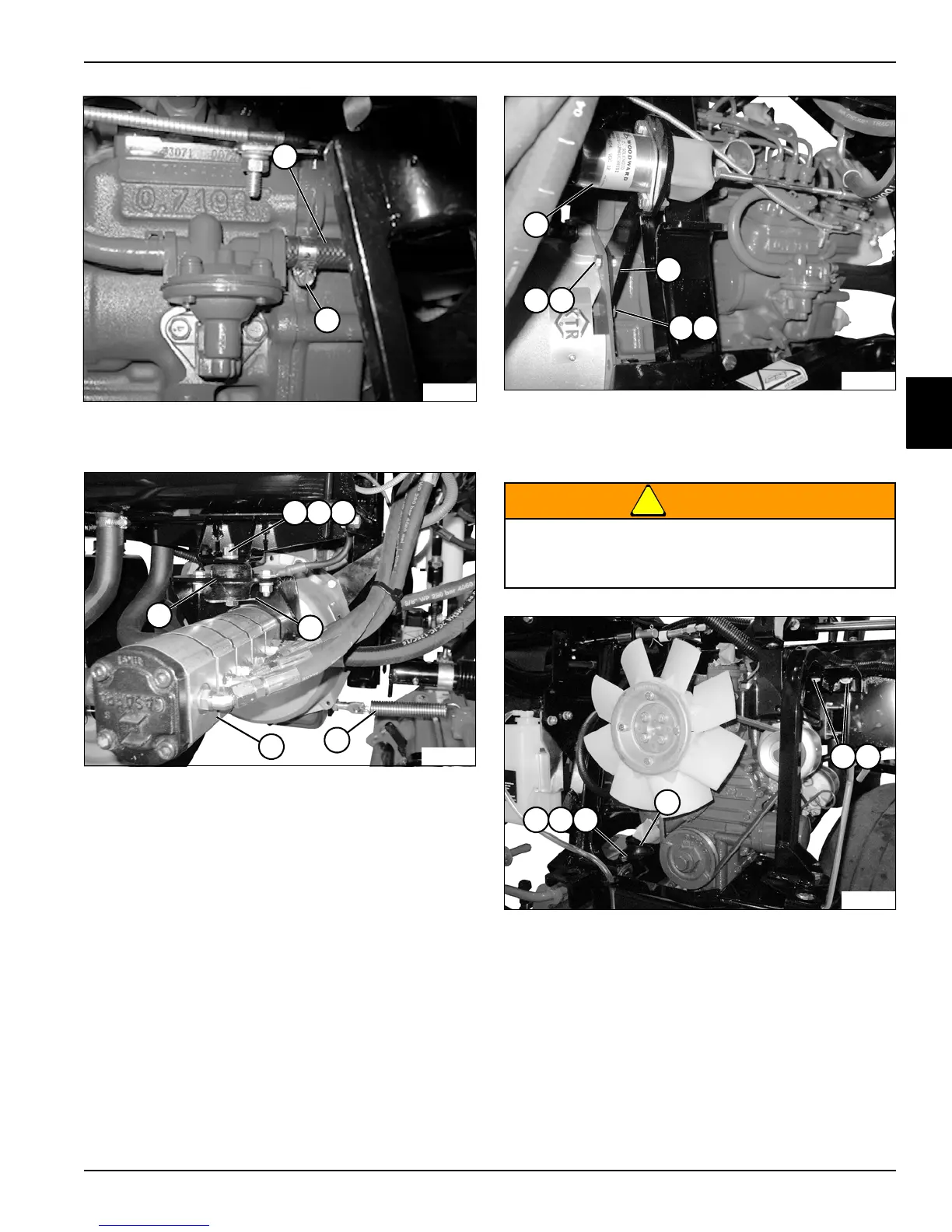

Figure 3-33
11. Loosen hose clamp (6) and remove fuel line (5).
Figure 3-34
12. Remove gear pump (12). (See “Gear Pump” on
page 5-31.)
13. Remove anti-sway spring (11) from the center cutting
unit.
14. Remove nut (7), lock washer (8), screw (9), and plate
(10) from engine isolation mount (13).
Figure 3-35
15. Remove two screws (16) and washers (17), and
remove fuel shutoff (14) and fuel shutoff bracket (15).
!
WARNING
Figure 3-36
16. Using a suitable engine hoist, support the engine and
remove nut (20), lock washer (21), and screw (22)
from engine isolation mount (23).
17. Remove two screws (18) and flat washers (19)
securing the engine mount to the frame.
18. Check for any connected wires and components, and
carefully remove the engine and engine mounts from
the machine.
6
5
TN3377
TN3394
12
987
11
13
10
Prevent personal injury. Use a properly rated
lifting device. Always be sure the load is
balanced before lifting.
TN3395
15
16
14
16 17
17
TN3398
20 21
18 19
22
23
