Jacobsen LF 3400 Service Manual

33
> Change from previous revision
To avoid injury when working with battery
1. Always connect the black ground (–)
cable last and remove it first.
2. Keep sparks and flames away, and
avoid contatc with acid.
To avoid injury when jumping battery
1. Connect positive (+) terminal to
positive (+) terminal.
2. Connect negative (–) terminal on good
battery to frame of vehicle that
has dead battery.
!
DANGER
Radiator is under pressure. Remove
cap slowly to avoid personal injury
!
WARNING
7
12
4
5
3
10
823
9
1. No opere esta maquina sin previo
entrenamiento, instruccion y sin haber
leido el manual de operacion.
2. Tenga todas las guardas en su lugar y
piezas bien aseguradas.
3. Neutralice todas las velocidades y
apague el motor antes de vaciar los
recolectores de pasto, darle servicio,
limpiar, adjustar y destrabar la maquina.
4. Mantenga las manos, los pies y ropa
suelta lejos de piezas en movimiento.
5. No deberan transportar pasajeros si
no existe un asiento para ellos.
6. Si no sabe leer ingles, pida que alguien
le lea las calcomanias de avisos y los
manuales de instruccion y operacion.
!
ATENCION
6
1. Backlap Switch...Backlap
2. Follow "To Start"
Instructions.
3. Cutting Units..........Lower
4. Throttle....................Slow
5. Reel Switch.........Backlap
6. Backlap Speed Control
Valves....................Adjust
7. With extreme caution,
apply lapping
compound with long
handled brush.
8. Backlap switch must
be returned to mow
position
To Backlap
LF 4675 / LF 4677

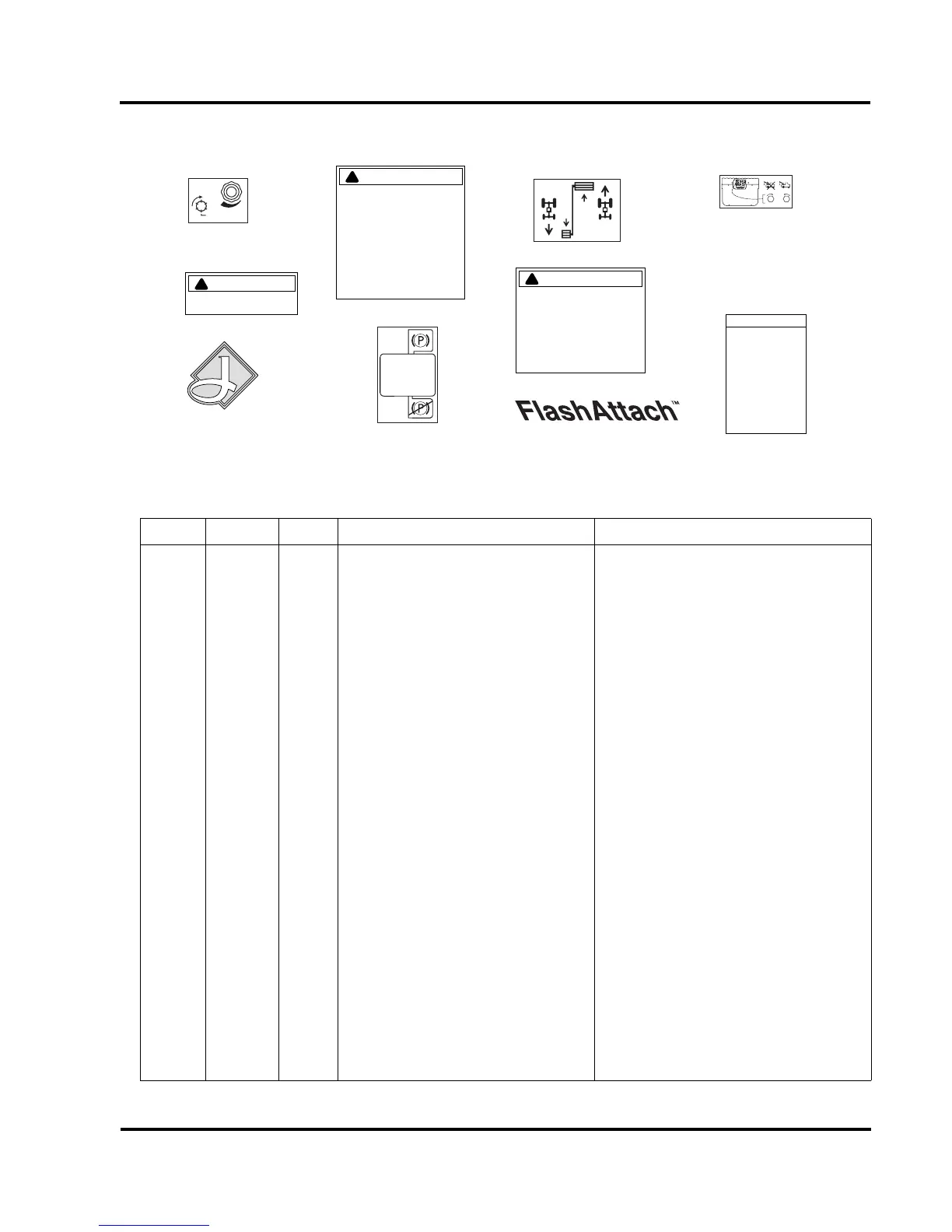

Item Part No. Qty. Description Serial Numbers/Notes
1
3009718 1 Decal, Controller
2 2812267 1 Decal, Service
3 3008683 2 Decal, Backlap Located on Front Axle
4 365956 1 Decal, Radiator Warning Located on top of Radiator
5 3007129 1 Emblem, Diamond J
6 340830 1 Decal, Spanish Caution
7 3008521 1 Decal, Traction Pedal
8 3008522 1 Decal, Brake
9 3001435 1 Decal, Battery Danger Located on Controller Housing
10 3008682 1 Decal, Tow Valve
11 3007527 1 Decal, LF 3800
12 3009253 1 Decal, Backlap Instructions Located on Controller Housing
13 3009528 1 Decal, Instrument Panel LF 4675 / 4677
13 3007236 1 Decal, Instrument Panel LF 3400 / 3800
14 3008327 1 Decal, 4WD 4WD Only
15 3002363 1 Decal, Backlap Switch Located on Controller Housing
16 3007505 2 Decal, Jacobsen
17 3007514 2 Decal, Textron
18 3007750 1 Decal, Left Side Blue Stripe
19 3007751 1 Decal, Right Side Blue Stripe
20 2809927 1 Decal, Operating Instructions
21 2812204 2 Decal, LF 4677
22 2812203 2 Decal, LF 4675
23 3008930 1 Decal, Flash Attach
24 3007526 1 Decal, LF 3400
