97
> Change from previous revision

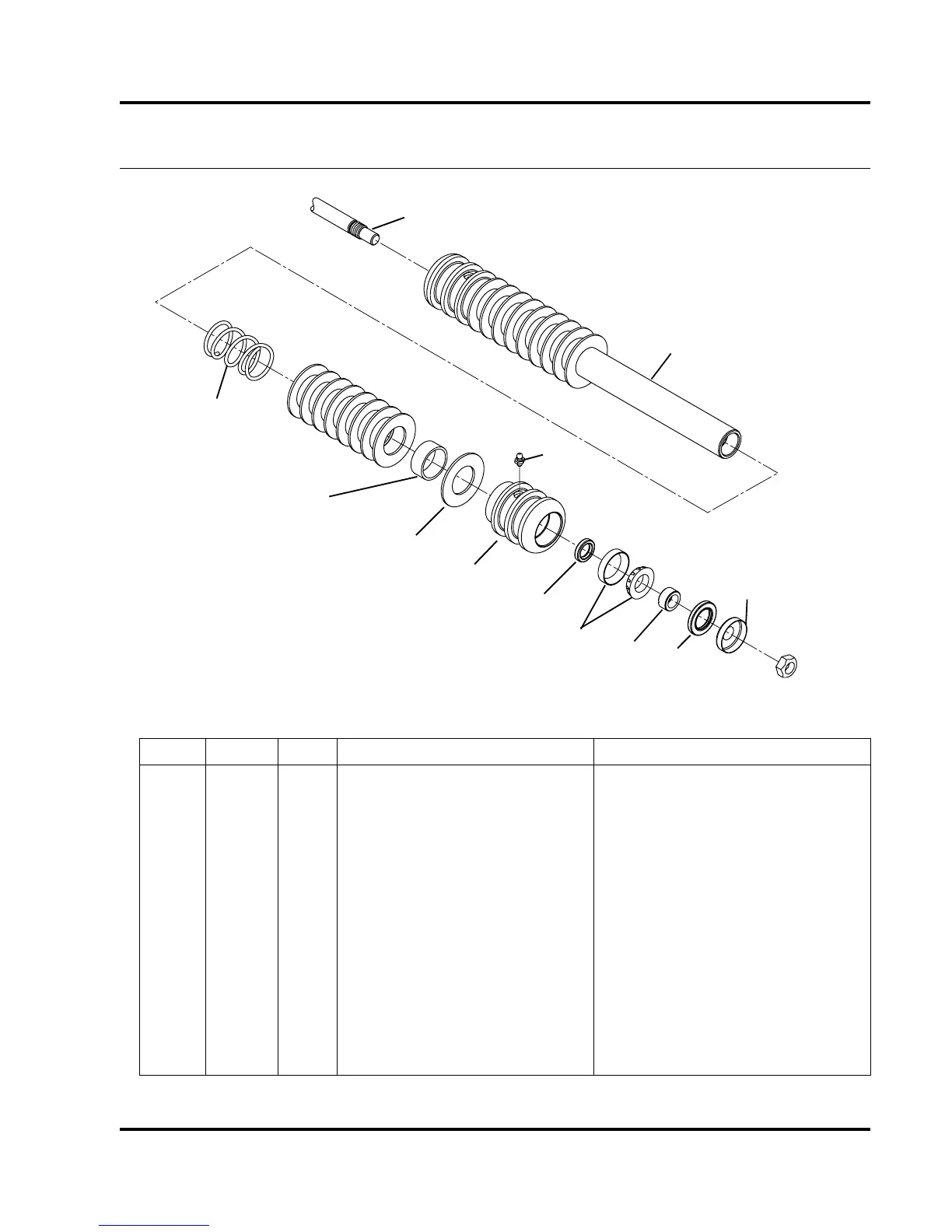

LF 4675 / LF 4677
Item Part No. Qty. Description Serial Numbers/Notes
1
3003416 1 Shaft
2 3000115 1 Tube
3 500534 2 Bearing, Cup and Cone
4 471214 2 Grease Fitting
5 338647 2 Grease Seal
6 N/S 16 Spacer
7 3004882 2 Grease Seal
8 3005156 2 Sleeve,Wear
9 367029 2 Locknut
10 241838 2 Bearing Housing
11 365016 1 Spring, Heavy
12 N/S 18 Washer
5000097 1 Roller Rebuild Kit Includes Items
44.1 Front Roller
Part Number 123268
Serial No. All
1
2
3
4
5
6
7
8
9
10
11
12
