3 ADJUSTMENTS
12
3.6 CRUISE CONTROL SWITCH _________________________________________________
If the cruise control does not disengage when brake
pedal is depressed, cruise control switch must be
adjusted.
1. Loosen hardware (F).
2. Adjust switch (G) so contacts are closed with the
brake disengaged and open as soon as the brake
pedal is pressed. If additional adjustment is needed,
loosen hardware (I) and adjust bracket as required.
3. Tighten hardware to secure switch and recheck
switch operation.

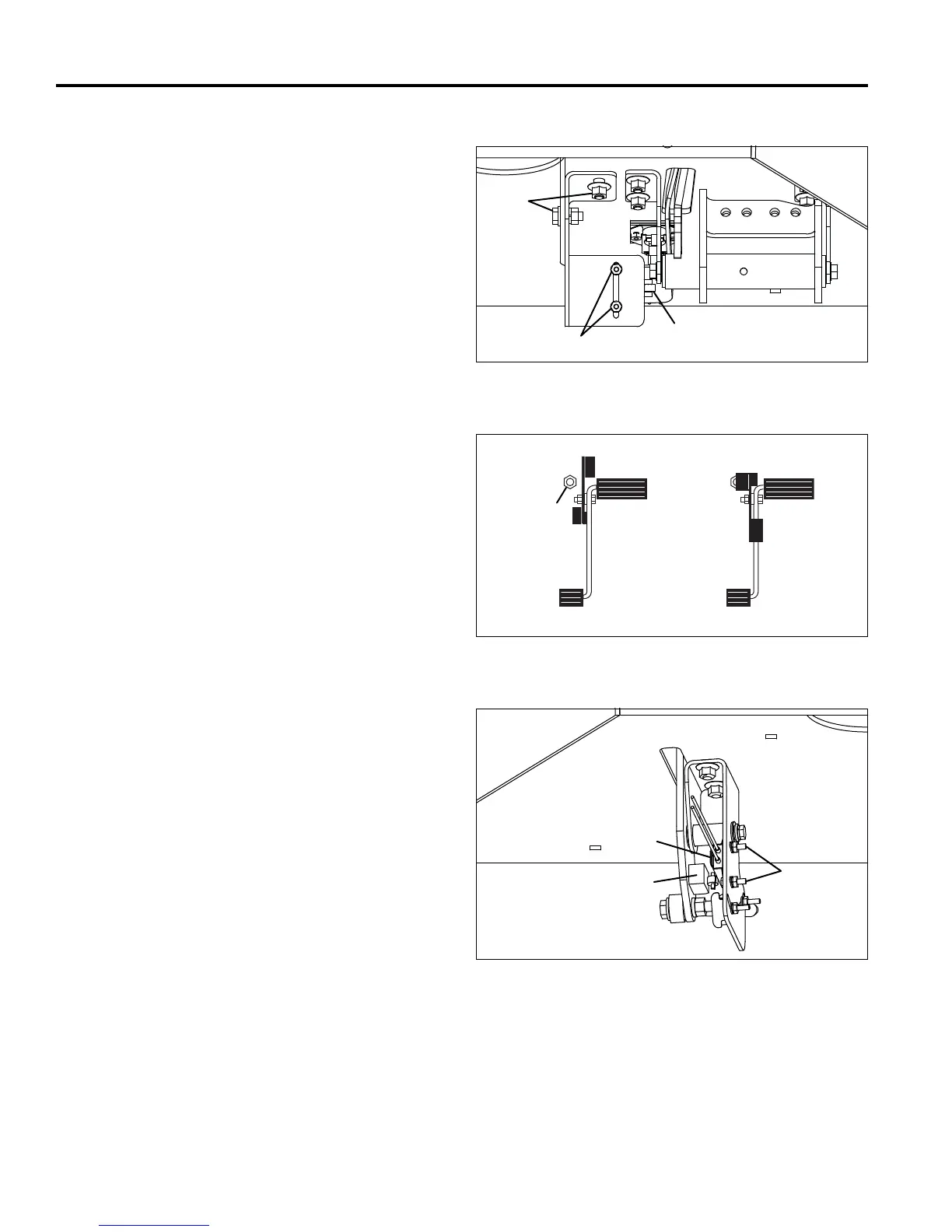

Figure 3E
3.7 MOW SPEED _____________________________________________________________
Cutting quality is better at speeds well below the
transport speed of the mower. An initial mow speed of
seven to eight mph is set at the factory and should be
satisfactory for most cutting conditions. Local turf
conditions however may respond better to a different
speed.
To set mow speed, loosen jam nut (R), and adjust stop
screw up to reduce speed, down to increase speed.
Tighten nut to hold adjustment in place.
Figure 3F
3.8 REVERSE SENSING SWITCH ________________________________________________
1. Loosen switch hardware (R).
2. Adjust switch (S) so switch contacts are open with
switch roller contacting the adjustment block (T) and
the traction pedal in Neutral and close when pedal is
moved in the forward direction.
3. Secure switch adjustment and test operation.
4. If adjustment cannot be made, contact your
authorized Jacobsen Dealer.
Figure 3G
