Jacobsen R-311T - Control Valve

130
> Change from previous revision
P
LD
ST
F
CD
SW
L
SD
DL
4WD
T

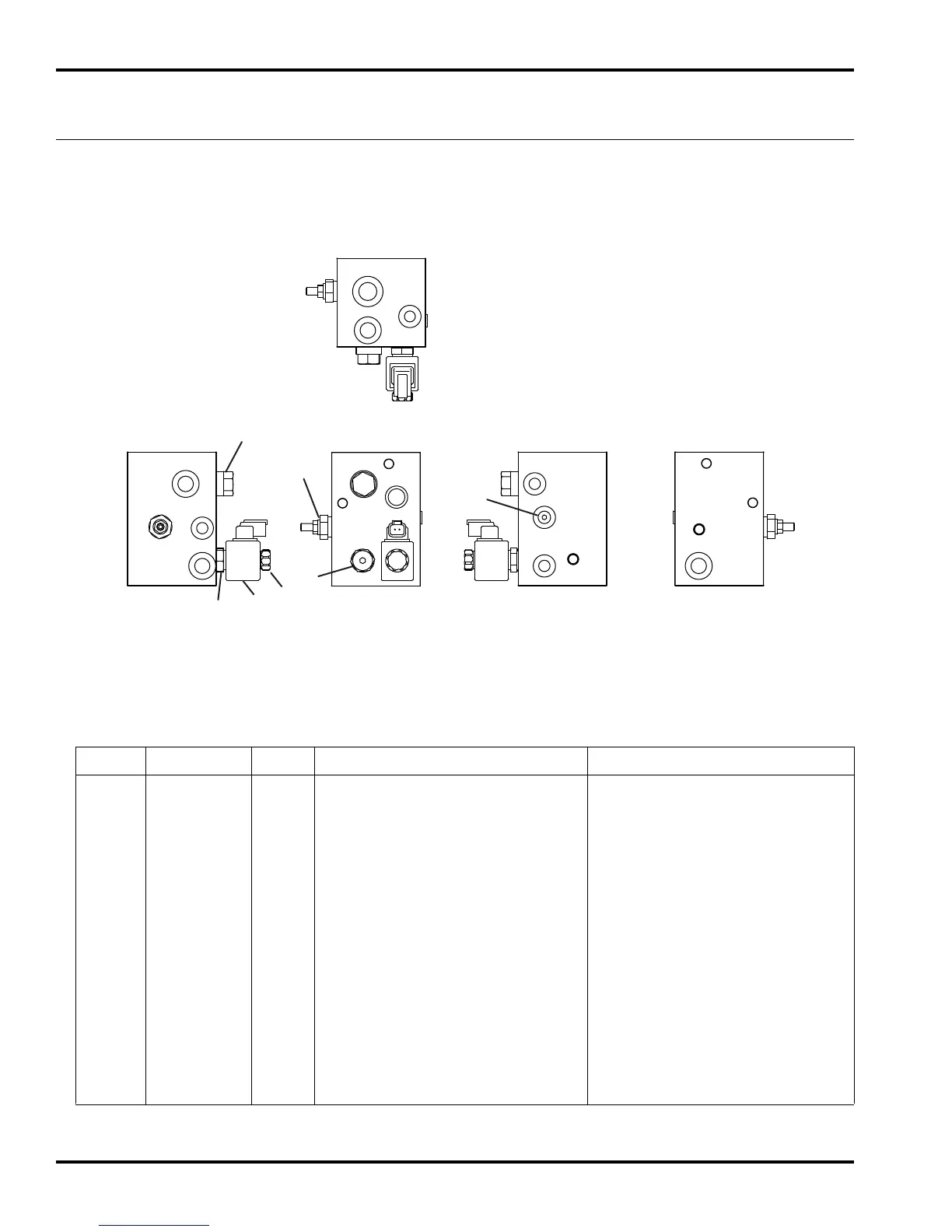

Viewed from Top
Viewed from Rear Viewed from Right Viewed from Front Viewed from Left
5
4
6
1
2
3
7
R-311T
49.1 Control Valve
Part Number 4174300
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
5003510 1 Relief Valve, 200 psi
5003579 1 • Seal Kit
2 556845 1 Flow Control Valve, 4.5 GPM
5003579 1 • Seal Kit
3 3010199 1 Plug
4 4199500 1 Solenoid Valve, 4WD
5003578 1 • Seal Kit
5 4199520 1 Plug, Cavity
4199521 1 • Seal Kit
6 4134532 1 Coil, 4WD REFERENCE K14, See 56.1
7 2811253 1 Nut, Coil
