R-311T

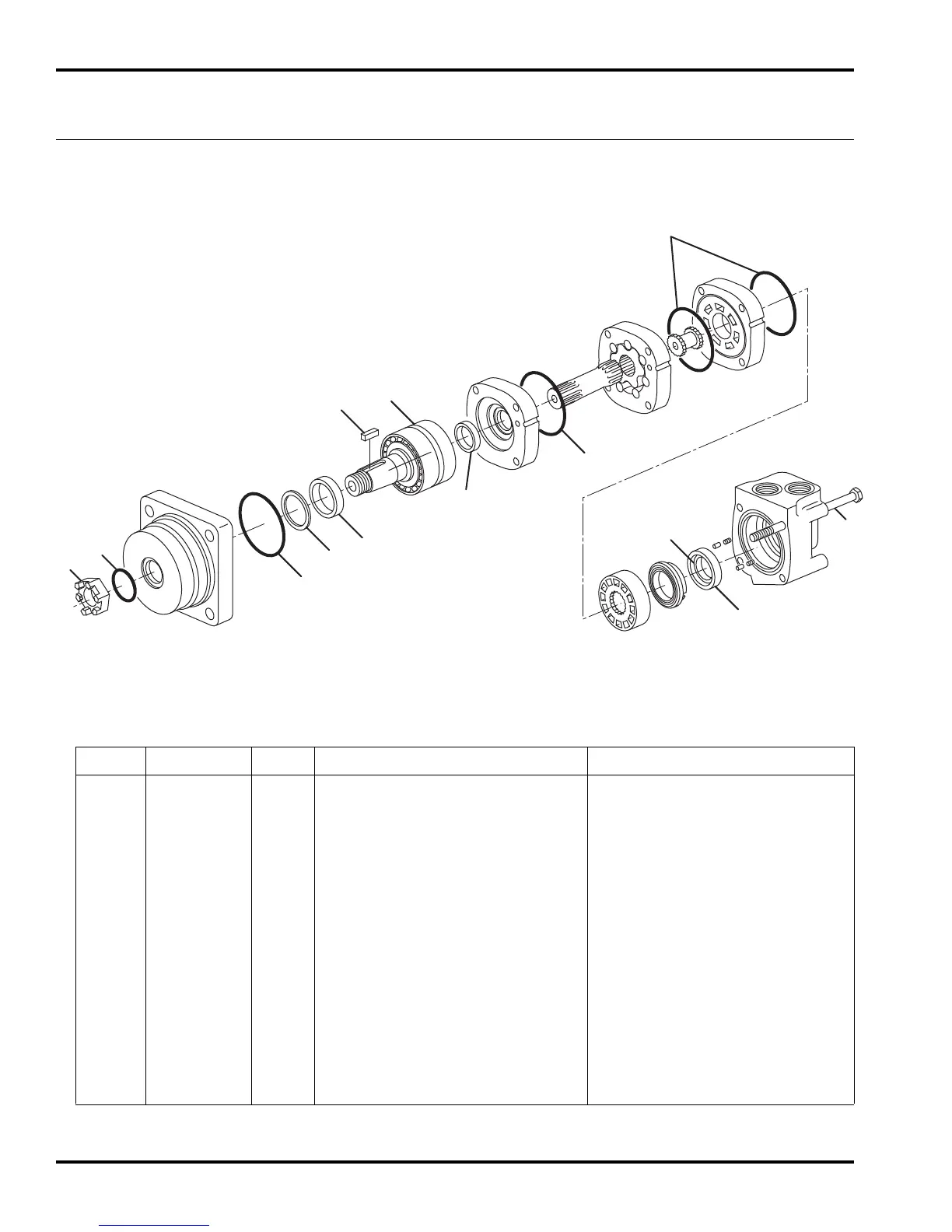

52.1 Rear Wheel Motor
Part Number 4178560
Serial No. All
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
●
1
N/S 1 Seal Exclusion
● 2 N/S 4 Seal, 3” I.D.
▼ 3 N/S 1 Back-Up Ring
▼ 4 N/S 1 Shaft Seal
5 5003384 1 Shaft and Bearing Kit
6 554780 1 Key
7 554779 1 Nut
● 8 N/S 1 Shaft, Face Seal
● 9 N/S 1 Inner Face Seal
● 10 N/S 1 Outer Face Seal
11 556450 4 Bolt
● 4178561 1 Rear Seal Kit
▼ 4178562 1 Front Seal Kit
