Jacobsen R-311T Maintenance Manual

77
> Change from previous revision
7
9
5
12
12
12
14
15
16
6
7
9
7
1
10
8
11
7
4
13
3
2
R-311T
Item Part No. Qty. Description Serial Numbers/Notes
1
4196900 1 Muffler
2 4263130 1 Exhaust Pipe
3 553020 1 Gasket, Exhaust Included with Engine
4 363586 4 Screw, M8-1.25 x 20 mm Hex Head
5 1000050 2 Muffler Bracket
6 400188 4 Screw, 5/16-18 x 1” Hex Head
7 452006 14 Flat Washer, 5/16
8 3000098 4 Mount, Isolation
9 444718 6 Locknut, 5/16-18 Center
10 443106 4 Nut, 5/16-18 Hex
11 446136 4 Lockwasher, 5/16 Heavy
12 162236 2 Clamp, 2-1/8” Muffler
13 450411 4 Lockwasher, M8
14 4262997 1 Bracket, Exhaust See 18.1 for Mounting Location
15 4262998 1 Bracket, Exhaust Pipe
16 441614 2 Carriage Bolt, 5/16-18 x 1”

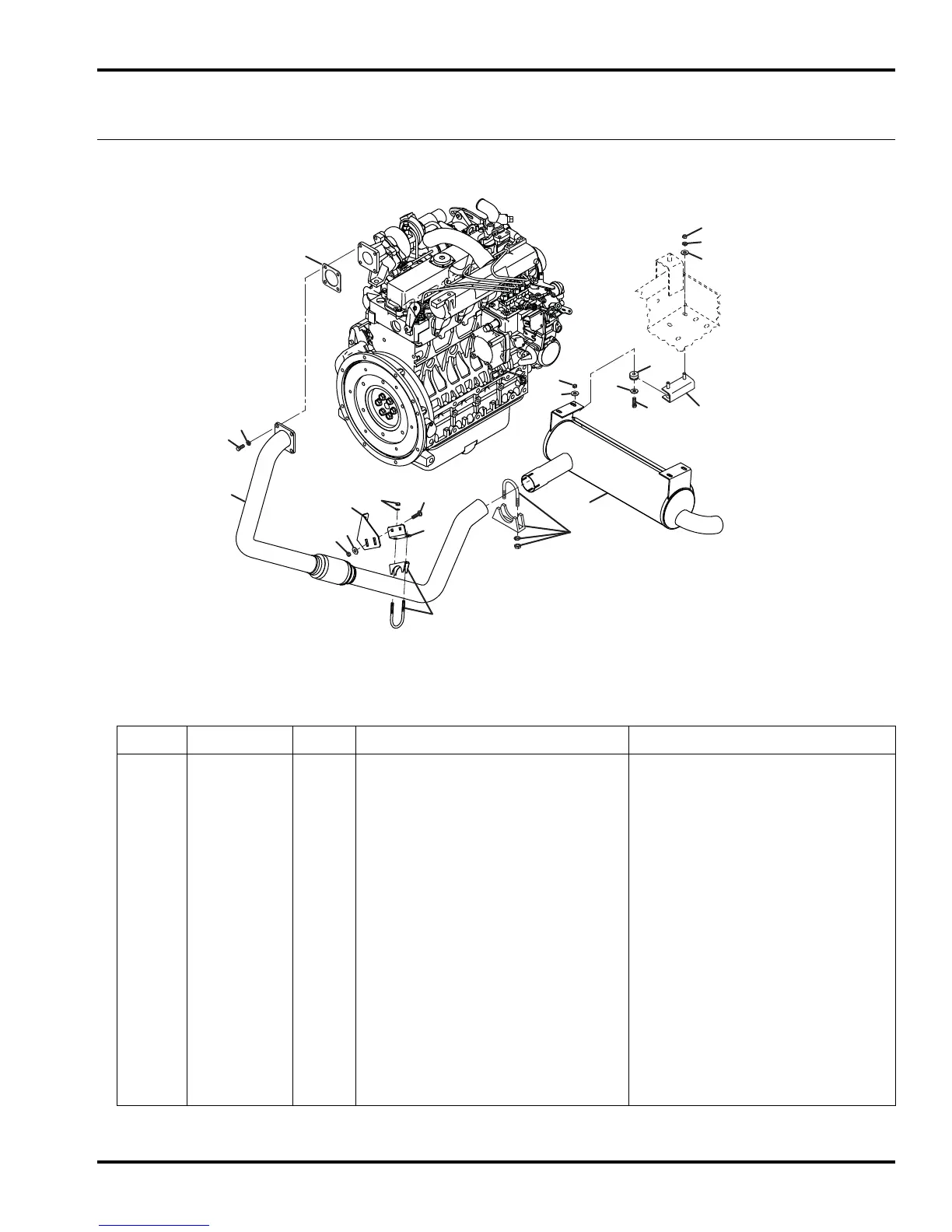

23.1 Muffler
