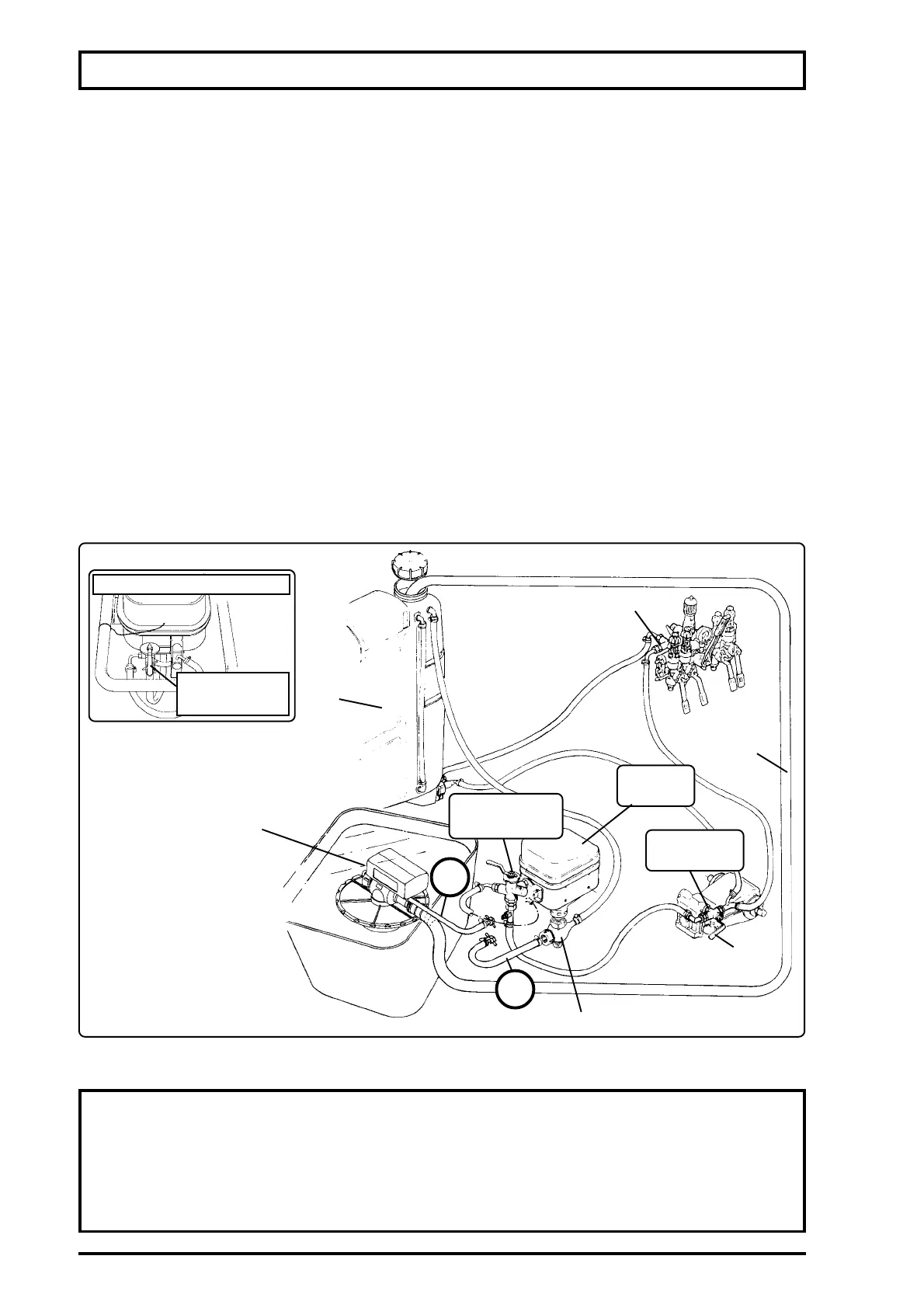

28
MAIN COMPONENTS OF SPRAYER
FILLER UNIT (OPTIONAL ACCESSORY)
-Put 13.20 gallons of water in the tank.
- Turn up the lever (1) (on the pump outlet valve). The decal affixed to the sprayer column indicates
"Válvulas Superiores" ("Upper Valves").
NOTE: The lever must be turned up in order to avoid the return of the chemical mixture existing in
this part of the circuit.
- Remove the hose "A" which connects the chemicals mixer valve with the chemical mixer base.
-Install the filler unit hose "B" in the place of the hose "A".
-Turn the lever (1) down (the decal affixed to the sprayer column indicates "Chemicals Mixer").
-Put the filler unit (3) in the water source and the end of its hose (4) in the tank opening.
-Engage the PTO (max. 540 rpm).
-The lever of the chemicals mixer valve (5) must be set to bypass the flow to the filler unit.
Attention: always be alert while filling the tank in order to avoid spillage of the chemical mixture onto
the ground.
- After finishing the filling operation, connect the hose "A" again to the chemicals mixer valve.
-Turn up again the lever (1) - "Válvulas Superiores" ("Upper Valves").
- Set the chemicals mixer lever (5) back to the working position.
PROTECT THE ENVIRONMENT.
IT IS EXTREMELY IMPORTANT FOR A HEALTHY LIFE.
ATTENTION
- THE SPRAYER FILLING OPERATION MUST BE DONE IN PLACES
APPROPRIATE FOR THIS PURPOSE OR THROUGH APPROPRIATE VEHICLES
(TRUCKS, TRAILERS, ETC.).
- NEVER COLLECT WATER FROM RIVERS, LAKES, DAMS, STREAMS, ETC.
BY USING THE SPRAYER´S RETURN SYSTEM.
Tank
filler unit
(3)
chemical control
(upper valves)
(1)
chemicals mixer body base
"A"
"B"
chemicals mixer
valve (5)
pump outlet
valve
chemicals
mixer
filling
hose (4)
setting of lever (5)
chemical
filling
