18

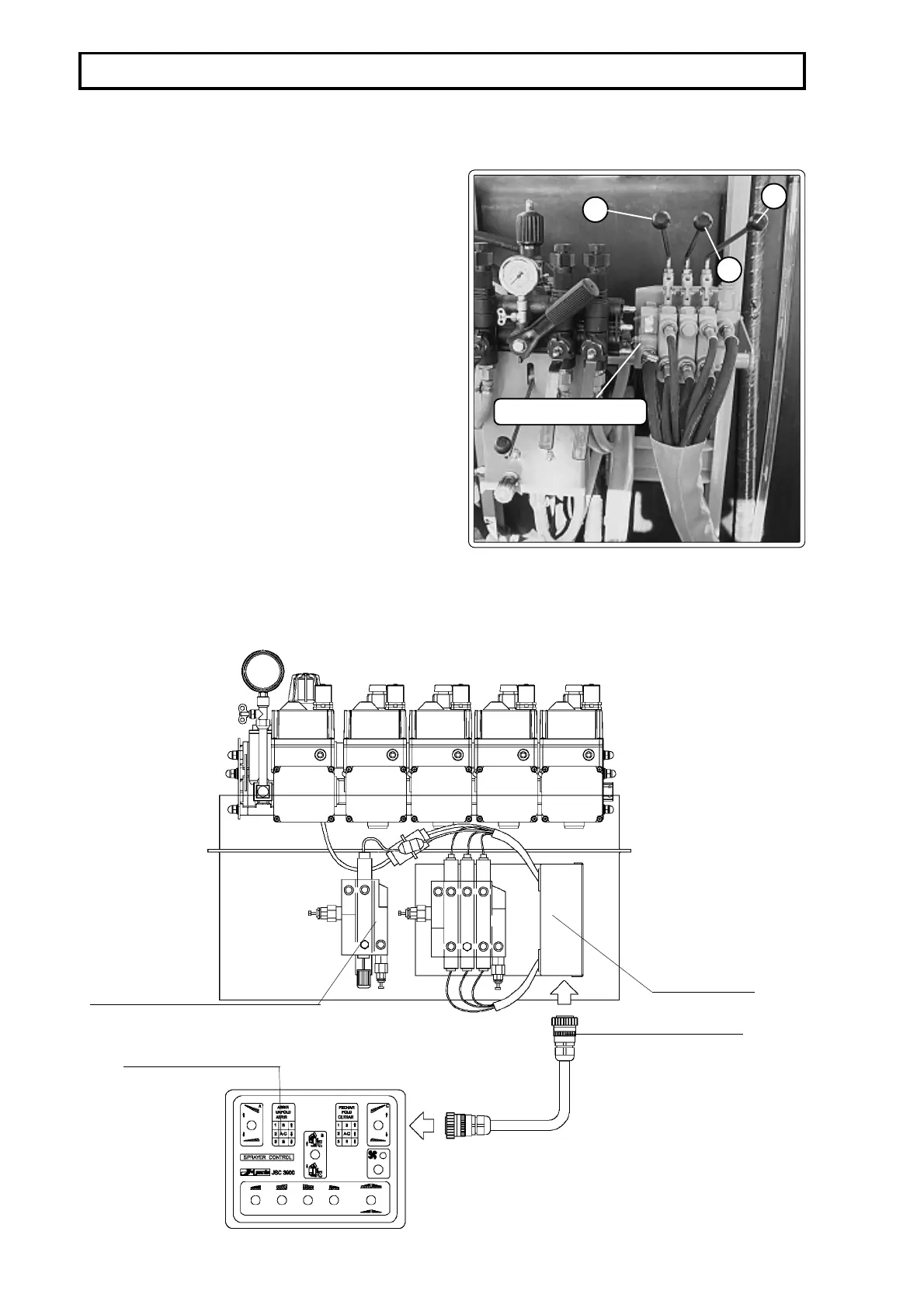

MAIN COMPONENTS OF SPRAYER
hydraulic boom control
01
02
03
This control is mounted to the tractor fender on
the most convenient position to the operator.
It comprise 3 levers:
- Lever 01: raises and lower the right boom.
- Lever 02: raises and lower the frame.
- Lever 03: raises and lower the left boom.
The boom can also be unfolded and folded
through the hydraulic control.
HYDRAULIC BOOM CONTROLS
BASIC CONTROL
JEC-3900 ELECTRIC CONTROL
Located under the spray control, the electric hydraulic boom control is connected to the distributing
box, which is connected to the control panel fastened near to the operator.
distributing
box
cable
electric hydraulic boom control
control panel
