Jacto FALCON VORTEX User Manual

59

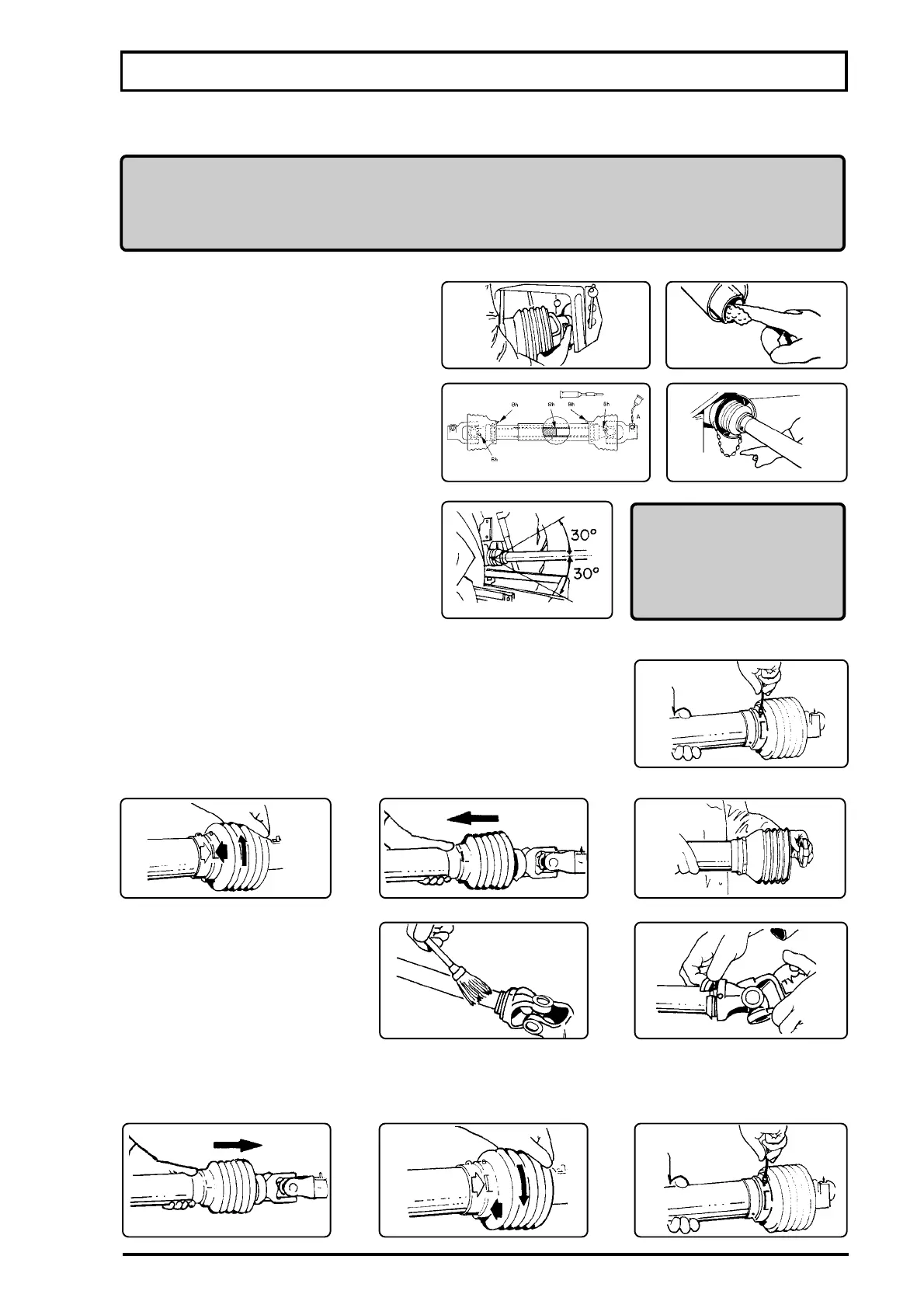

MAINTENANCE
02- SERVICING
a) DISASSEMBLING
1- Remove the lock screw.
2- Turn the guard cone until the indicated position.
3- Pull the guard cone.
4- Remove the sliding ring.
b) ASSEMBLING
5-Clean and lubricate the male
and female tubes.
6-Install the sliding ring into the
fitting with the grooves pointing
toward the tube.
7-Install the protection guards.8-Turn the guard cone until the
indicated position.
9-Install the lock screw.
ATTENTION
ONLY OPERATE WITH
PTO SHAFT EQUIPPED
WITH PROTECTION
GUARDS.
01- CONNECTING
-Check the PTO shaft length.
-Adjust the length by cutting the tubes
and protection guards proportionately.
Note:File and remove all burrs.
-Lubricate the male and female tubes.
-Connect the PTO shaft and install the
safety chain.
Note:Leave some slack on the
chain considering angular
movements.
-Disengage the PTO when making
sharp turns.
CONVENTIONAL PTO SHAFT
WARNING: ONLY OPERATE WITH PTO SHAFT EQUIPPED WITH SAFETY GUARD. ALL
KIND OF MAINTENANCE ON THE PTO SHAFT MUST BE DONE WITH THE USE OF
APPROPRIATE PROTECTIVE CLOTHING, SUCH AS: GLOVES, BOOTS, GOGGLES,
ETC.
