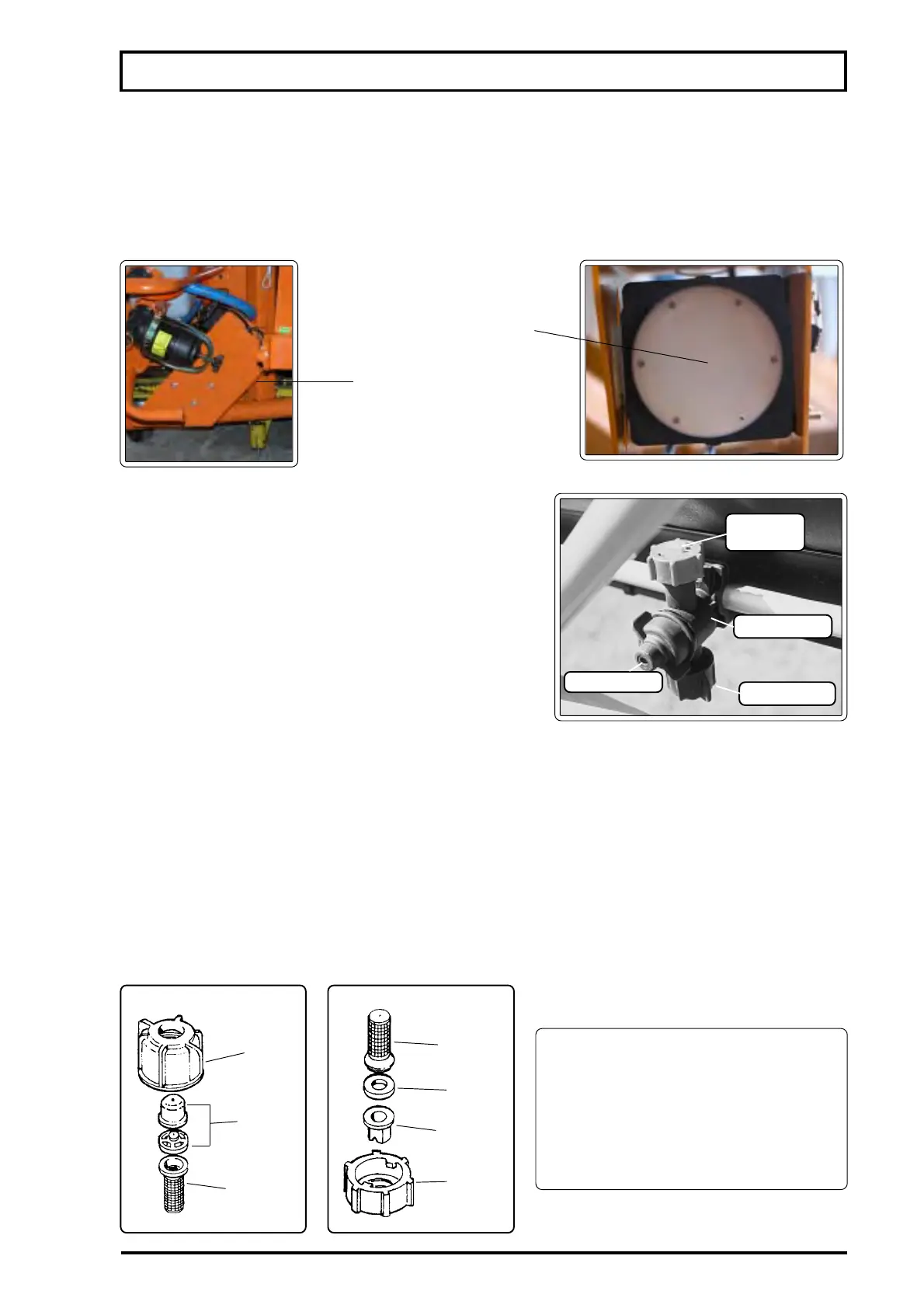

MAIN COMPONENTS OF SPRAYER
BIJET NONDRIP DOUBLE NOZZLE HOLDER
The Bijet nozzle holder comprises a nondrip valve and
two ceramic nozzles - 1 cone and 1 flat fan.
Its nondrip valve shuts off the chemical mixture flow
once the pressure comes down to 10 psi, thus preventing
it from dripping.
nozzle holder
nondrip valve
flat fan
nozzle
cone nozzle
Cone nozzle
Flat fan nozzle
nozzle
cap
nozzle
filter
filter
seal
nozzle
nozzle
cap
ATTENTION:
Operating at pressures above or
below the recommended
can alter the nozzles
working characteristics.
NOZZLES
The job of the nozzles is to generate droplets and distribute them uniformly over the surface
being sprayed.
Flow, angle and droplet sizes vary according to working pressure. Operating with pressure over
that recommended by the manufacturer will decrease the nozzles' life.
This sprayer is equipped with alumina (ceramic) nozzles, which are very resistant to wear and to
chemical action, and fitted as shown in the figure below.
MOVEMENT SENSOR
The movement sensor is a device designed to replace the wheel sensor and its functions. It
provides the JSC-5000 with pulse signals that are coverted in information for better use of the
equipment and chemical application.
sensor support
movement
sensor
