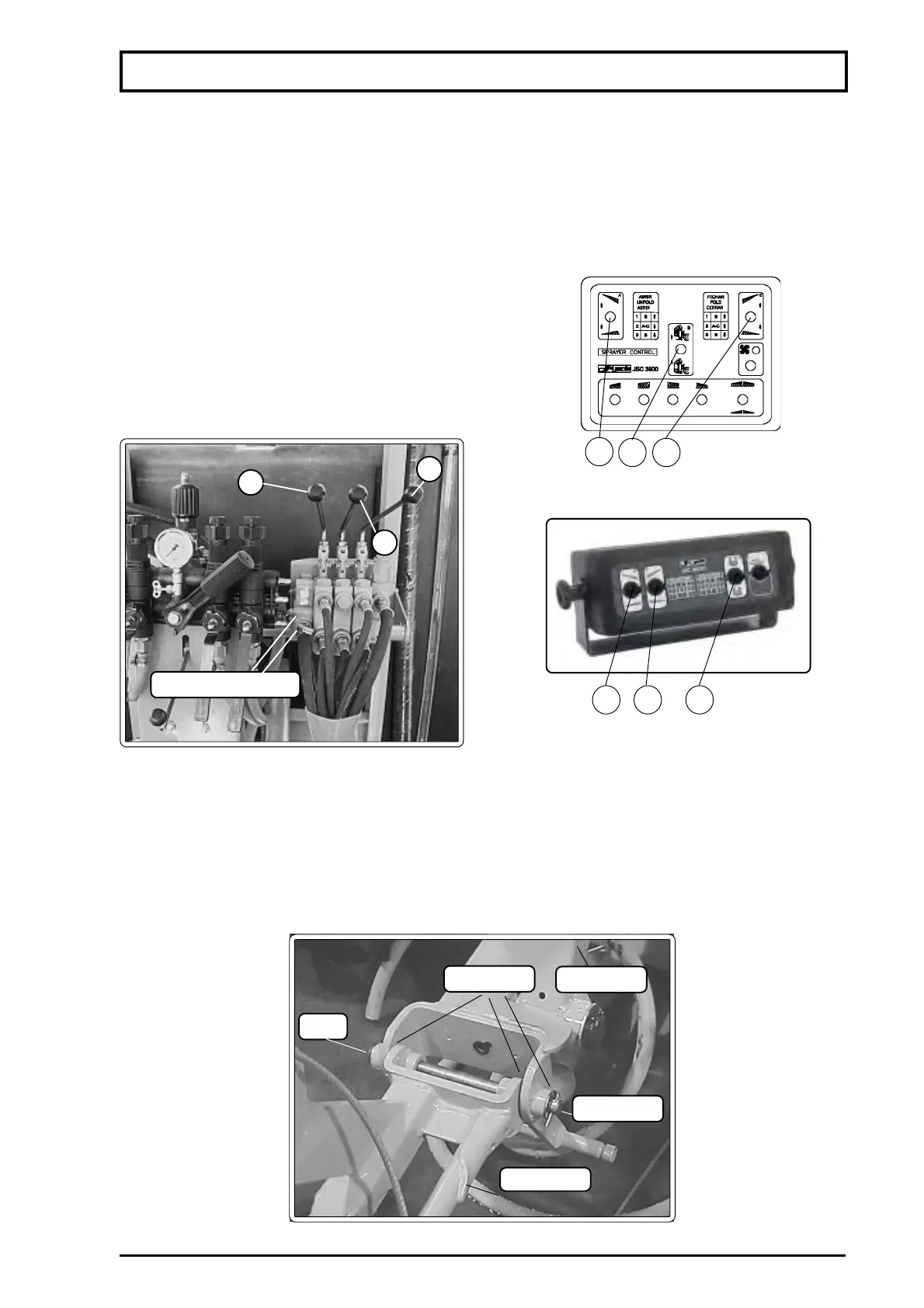

ASSEMBLING THE BOOM
ASSEMBLING THE BOOM
Hydraulic control
- Lever (1) - Operates the left boom.
- Lever (2) - Operates the frame.
- Lever (3) -Operates the right boom.
ASSEMBLING, UNFOLDING AND FOLDING THE BOOM
ATTENTION:
- Before begining to assemble the boom and operate the hydraulic system, put clean water in the
tank to prevent the operation from damaging the chemical pump.
- Only unfold and fold the boom in areas free of obstacles such as trees, electricity supply cables,
etc.
hydraulic control
01
02
03
- Before assembling the boom, lower to the lowest the frame.
- Install the shaft, observing the orientation of assembling and the fitting of the flat washer with
the elastic pin.
- Do the same with both right and left boom.
ATTENTION: The cotter pin should be fitted in the side opposite the air duct mounting.
sliding frame
spray boom
shaft
flexible pin
flat washer
JEC 3600
JEC 3900
02 03
01
01
0203
(1)
