LEVELLING BOX

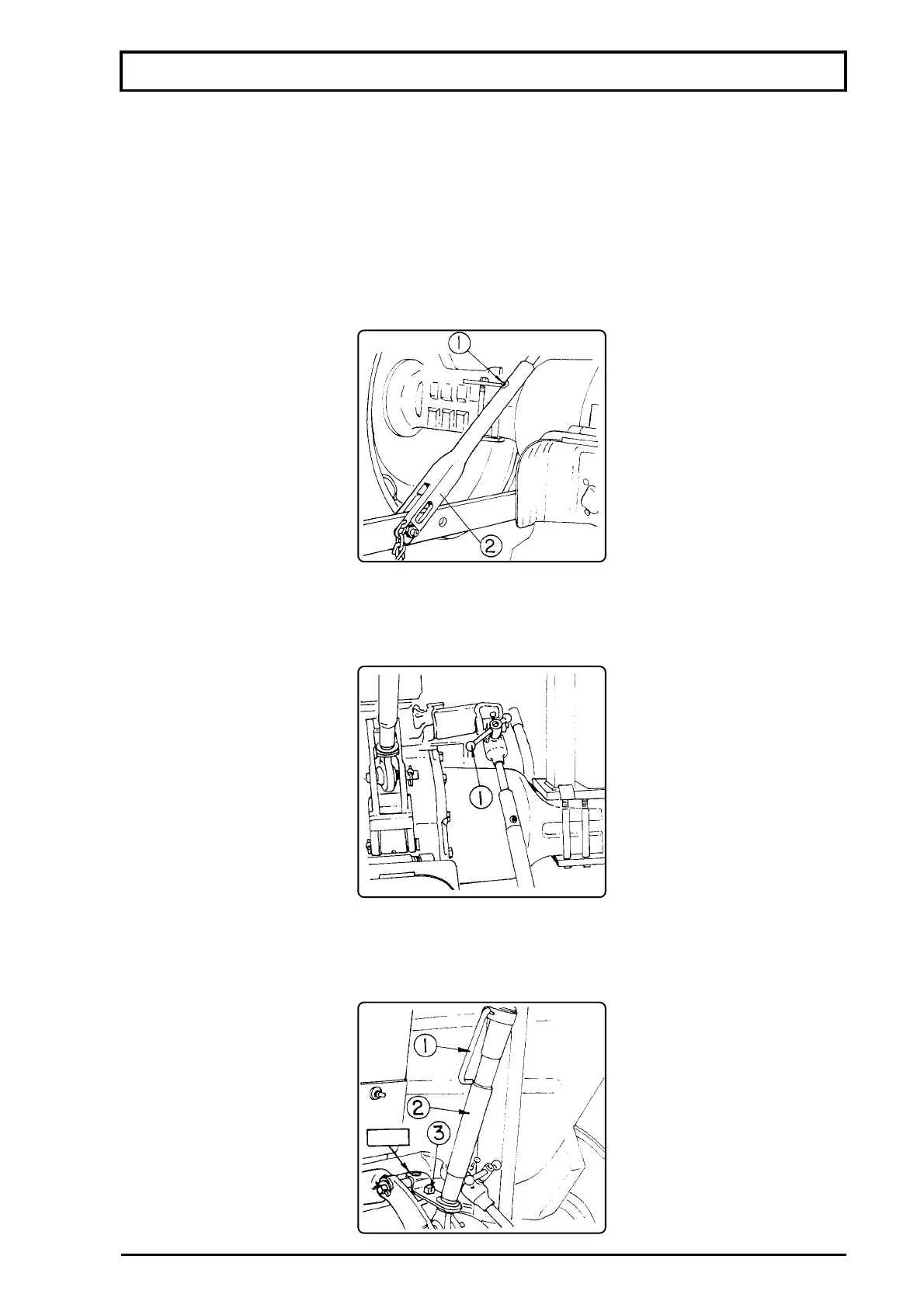

To adjust the transversal levelling of the sprayer, turn the crank (1) located on the levelling
box.
ADJUSTING THE THIRD POINT
Release the lock (1) and turn the sleeve (2) to adjust the length of the third point arm. During
transport, fasten the plate of the third point bar to the pin (3) of the frame.
SETTING UP TRACTOR
ADJUSTING PARTS TO HITCH TO THE TRACTOR'S THREE-POINT SUSPENSION
ATTENTION: The instruction below is an example of what should be done for properly hitching
the sprayer to the tractor's three-point suspension. To exemplify we have used the Ford 4600
tractor. However, you should proceed as directed in the operator's manual of your tractor.
TIE ARM OF THE LEFT BAR
To adjust the length of the left lift arm to the proper position, loosen the pin and turn the lower half
(2) of the lift arm.
NOTE: The grease fitting (1) should point up.
