29
MAIN COMPONENTS OF SPRAYER

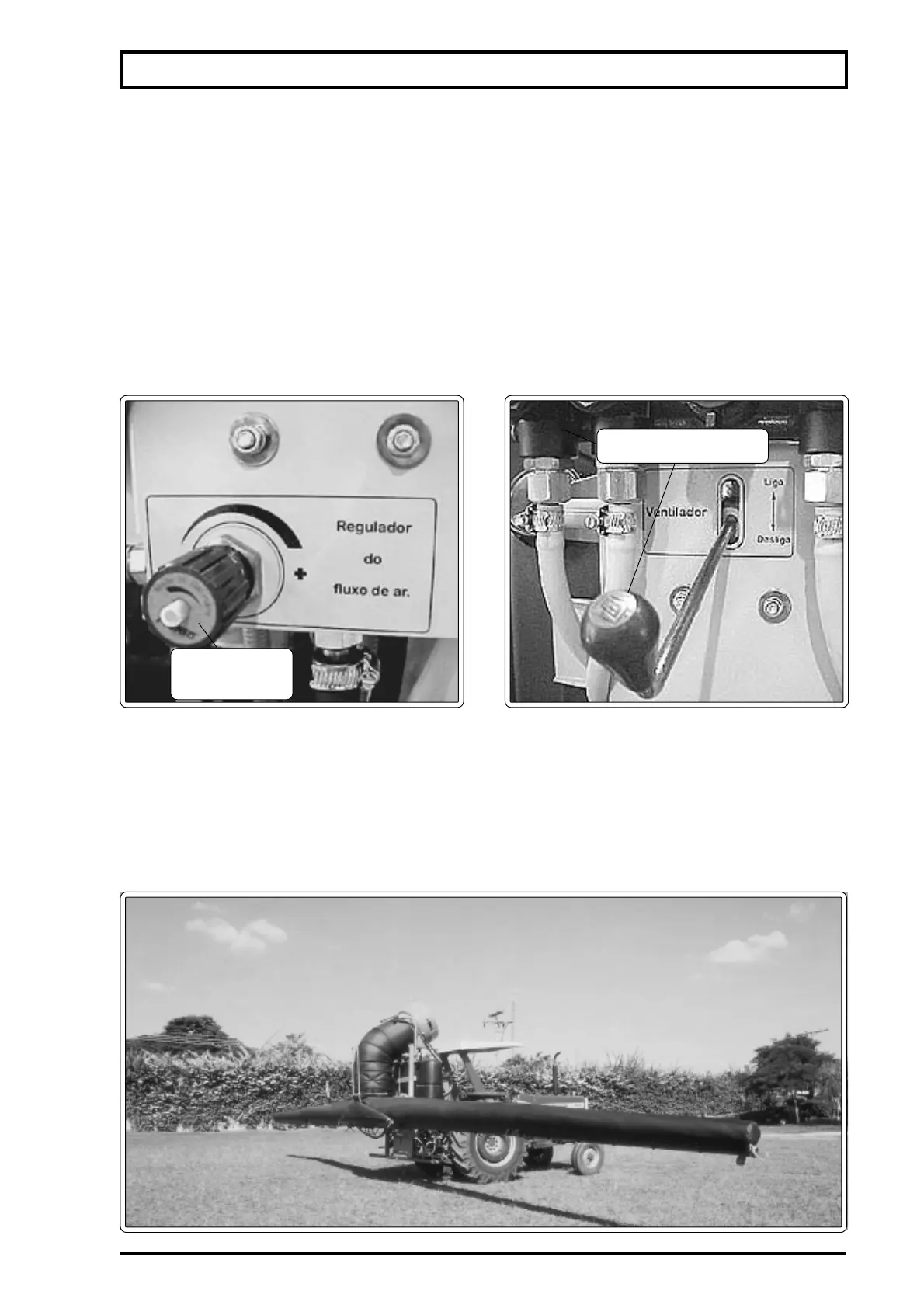

FAN ROTATION ADJUSTING VALVE
This valve adjusts the oil flow to run the hydraulic motor which actuates the fan.
The maximum fan rotation is 2,200 rpm.To change the rotation, just turn the knob:
clockwise to increase the rpm and counterclockwise to decrease the rpm.
Spraying grounds covered by vegetation (crops or strange plants) requires maximun
rpm, while for spraying clear grounds (no crop or vegetation) it is necessary to adjust the
rotation in order not to raise dust.
Another important factor is the power consumption: the lower the fan rpm, the lower the
power consumption (maximun power consumption with fan at 2,200 rpm=13 HP).
fan rotation
adjusting valve
hydraulic motor lever
SPRAY BOOM
This boom is specifically designed to make spray applications in windy days.
The air produced by the fan is uniformly distributed along the entire boom providing better
penetration of the chemicals with minimal drift level.
