MAIN COMPONENTS OF SPRAYER
FOAM MARKER (OPTIONAL)
ASSEMBLY PROCEDURES
MOUNTING THE FOAM MARKER SUPPORT

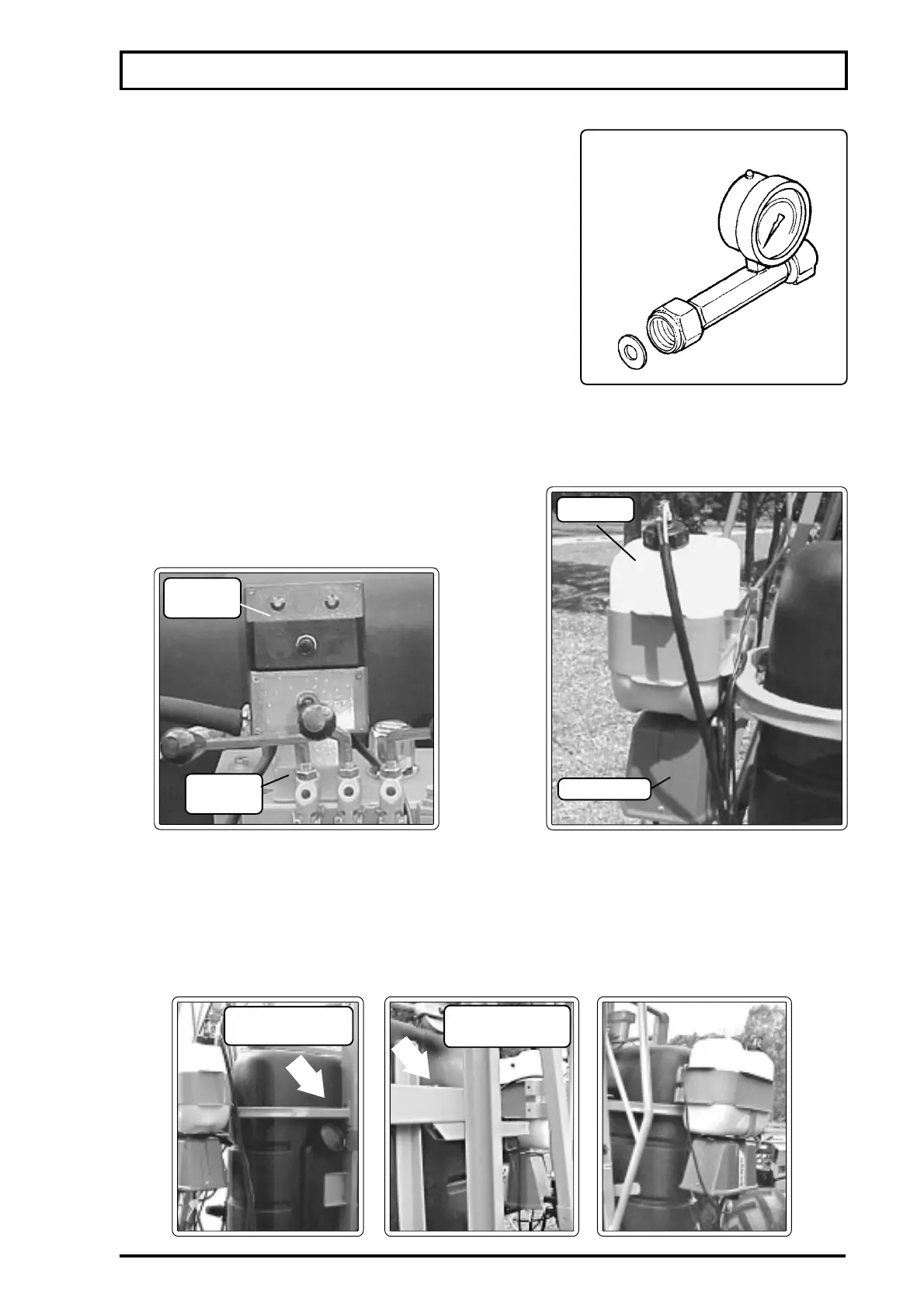

-The photographs below show how to mount the foam marker support to the sprayer chassis.
control
panel
hydraulic
control
tank
compressor
fastening point of
the support front
fastening point of
the support back
The low pressure gauge kit was designed for
checking the actual pressure on nozzles.
It can be installed on the sprayers assembled with
both universal nozzle caps and fittings and complex
nozzle holders, such as double and quadruple units.
The maximum pressure of this kit is 100 psi.
However, the pressure regulators of sprayers can
easily reach above 100 psi, which can damage the
pressure gauge. To ensure longer life of the pressure
gauge, close the valve after regulating the sprayer.
LOW PRESSURE GAUGE KIT (OPTIONAL)
LOW PRESSURE
GAUGE KIT
To Next Page
