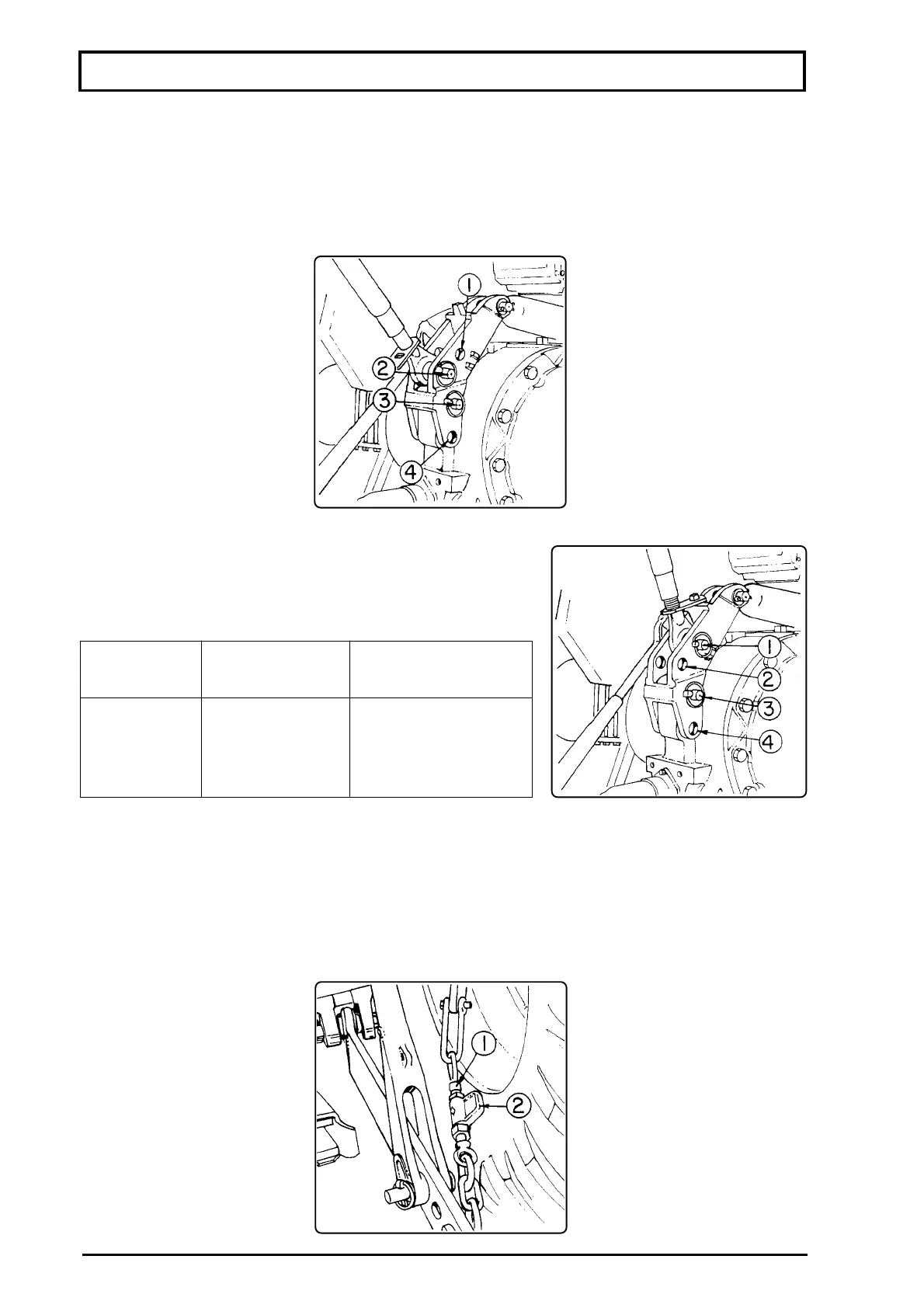

SETTING UP TRACTOR
THIRD POINT FRAME
The third point frame has two positions (1 and 2) to install the third arm and two positions
(3 and 4) to install the frame lower pin.
Thus there are four different positions for this assembly.
ADJUSTING PARTS TO HITCH TO THE TRACTOR'S THREE-POINT SUSPENSION
HOLES POSITION
The positions of the holes vary according to the duty to be
done.
Third arm's
position
No. 1
No. 1
No. 2
No. 2
Duty kind
Ultra-light
Light
Medium
Heavy
Frame
No. 4
No. 3
No. 4
No. 3
STABILIZING CHAINS
The stabilizing chains should be installed to limit the lateral movement of the sprayer hitched
to the three-point system.
These chains should be adjusted according to the boom of the sprayer to be used. To adjust
them, relieve the lock nut (1) and turn the adjusting nut (2), as necessary, and retighten the lock
nut.
