MAIN COMPONENTS OF SPRAYER
ELECTRIC-ELECTRONIC MSTERFLOW CONTROL WITH JSC-5000 SPRAYER
CONTROL AND JEC3600 ELECTRIC BOOM CONTROL
This is a system that automatically calibrates the sprayer and ensures constant liquid quantity
distributed per area, regardless of the speed fluctuations within the same gear.
With the introduction of the JSC-5000, the farmer will save time and chemicals. 10% errors
are practically unavoidable in manual calibrations, which are per trial and error. Besides the error
in the calibrations, the tractor speed fluctuations also affect the result. The JSC-5000 compensates
all fluctuations on the working speed and keeps constant liquid volume per area.
JSC-5000 Sprayer
Control
Electro-Electronic
Masterflow Control
Electric boom control
Electro-Electronic Masterflow Control

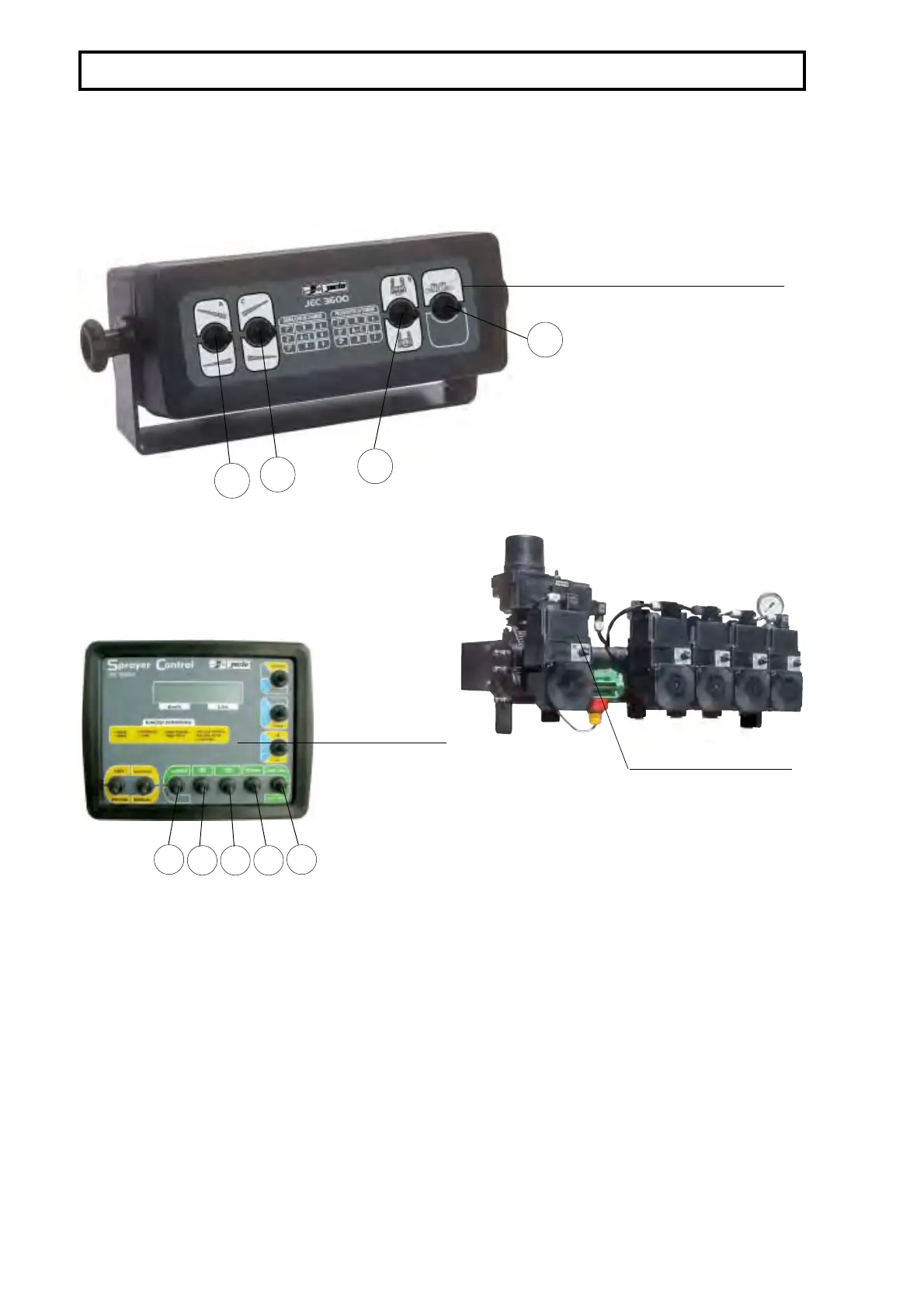

The JEC-3600 control allows to simply unfold and fold the booms.
.
Switch A: raises and lower the right boom.
Switch B: raises and lower the left boom.
Switch C: raises and lower the frame.
Switch D: Turn on/off the fan.
A
B
C
&
Switch 1: turns on the spray to the 2nd section of the right
boom.
Switch 2: turns on the spray to the 1st section of the right boom.
Switch 3: turns on the spray to the 1st section of the left
boom.
Switch 4: turns on the spray to the 2nd section of the left boom.
Switch 5: directs the flow to the booms or to the tank (return).
1
3
5
42
