19
MAIN COMPONENTS OF SPRAYER

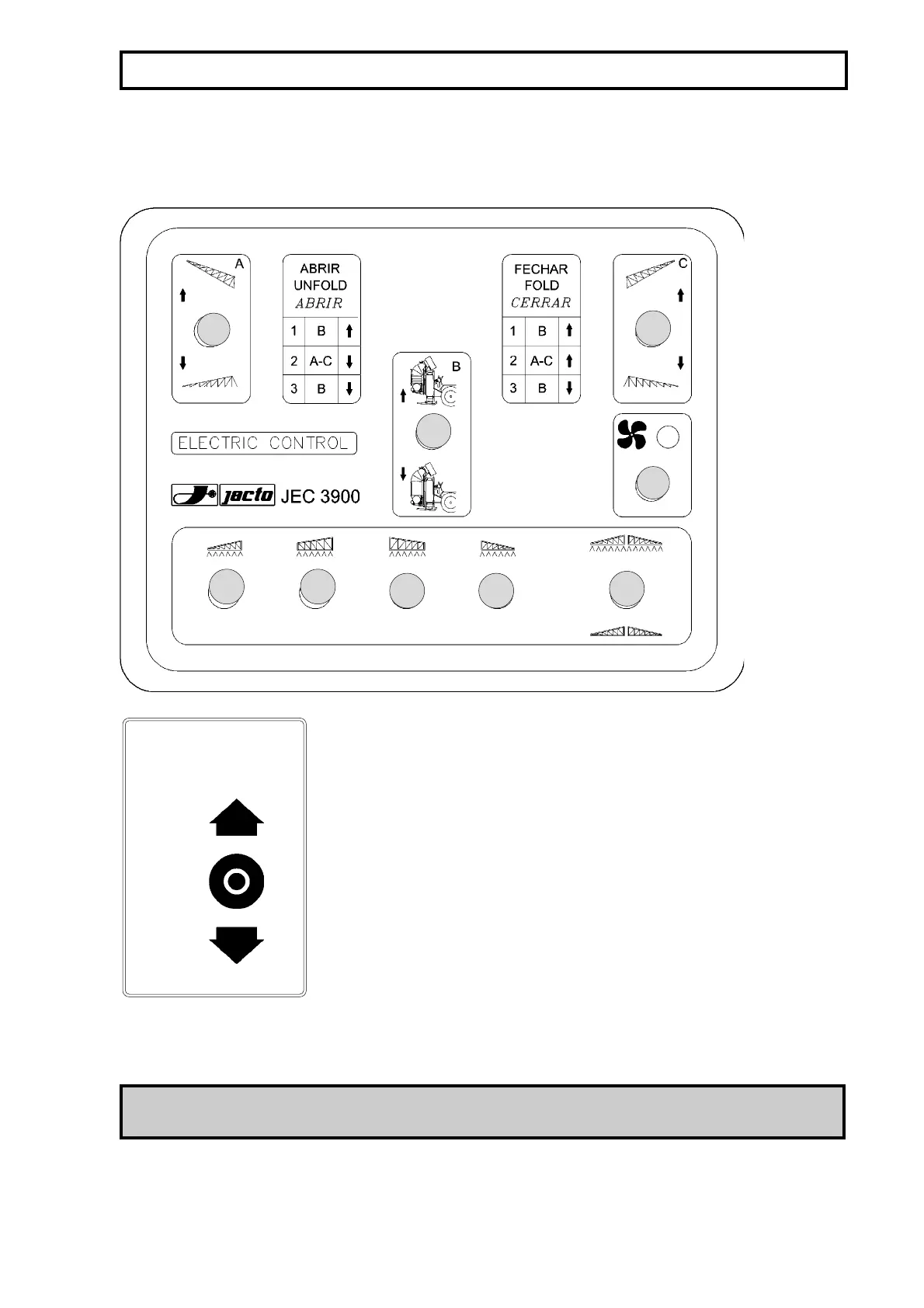

CONTROL PANEL
Switch A: raises and lower the right boom.
Switch B: raises and lower the left boom.
Switch C: raises and lower the frame.
Switch D: Turn on/off the fan.
ON
OFF
SWITCH
Switch positions
B
C
A
D
1 2
3 4
5
Switch 1: turns on the spray to the 2nd section of the right
boom.
Switch 2: turns on the spray to the 1st section of the right
boom.
Switch 3: turns on the spray to the 1st section of the left
boom.
Switch 4: turns on the spray to the 2nd section of the left
boom.
Switch 5: directs the flow to the booms or to the tank (return).
NOTE: To actuate the switches 1, 2, 3 or 4, the switch 5 must be on (upward).
Sprayer Control
ELECTRIC HYDRAULIC BOOM CONTROL and SPRAYER CONTROL
