JADEVER
7
Place the indicator on a flat and stable surface.
Verify the input voltage and the plug type matches the local AC power
supply.
Warm up the scale for 15 minutes before using it the first time.
Keep the indicator away from EMI noise, strong wind and vibration, which
might cause incorrect reading.
Avoid sudden temperature changes(suitable operating temperature is
between 0~ 40℃)
Disconnect the power supply before cleaning the indicator.
Don’t immerse the indicator in water or other liquids.
Service should be performed by authorized personnel only.
Package:
------------------------------------------------------------
The package should contain:
JDI indicator
Adaptor
U disk
User manual
Power Supply:
------------------------------------------------------------
Adapter Input: 100-240~50/60Hz 800mA
Output: DC 6.0V, 2.5A

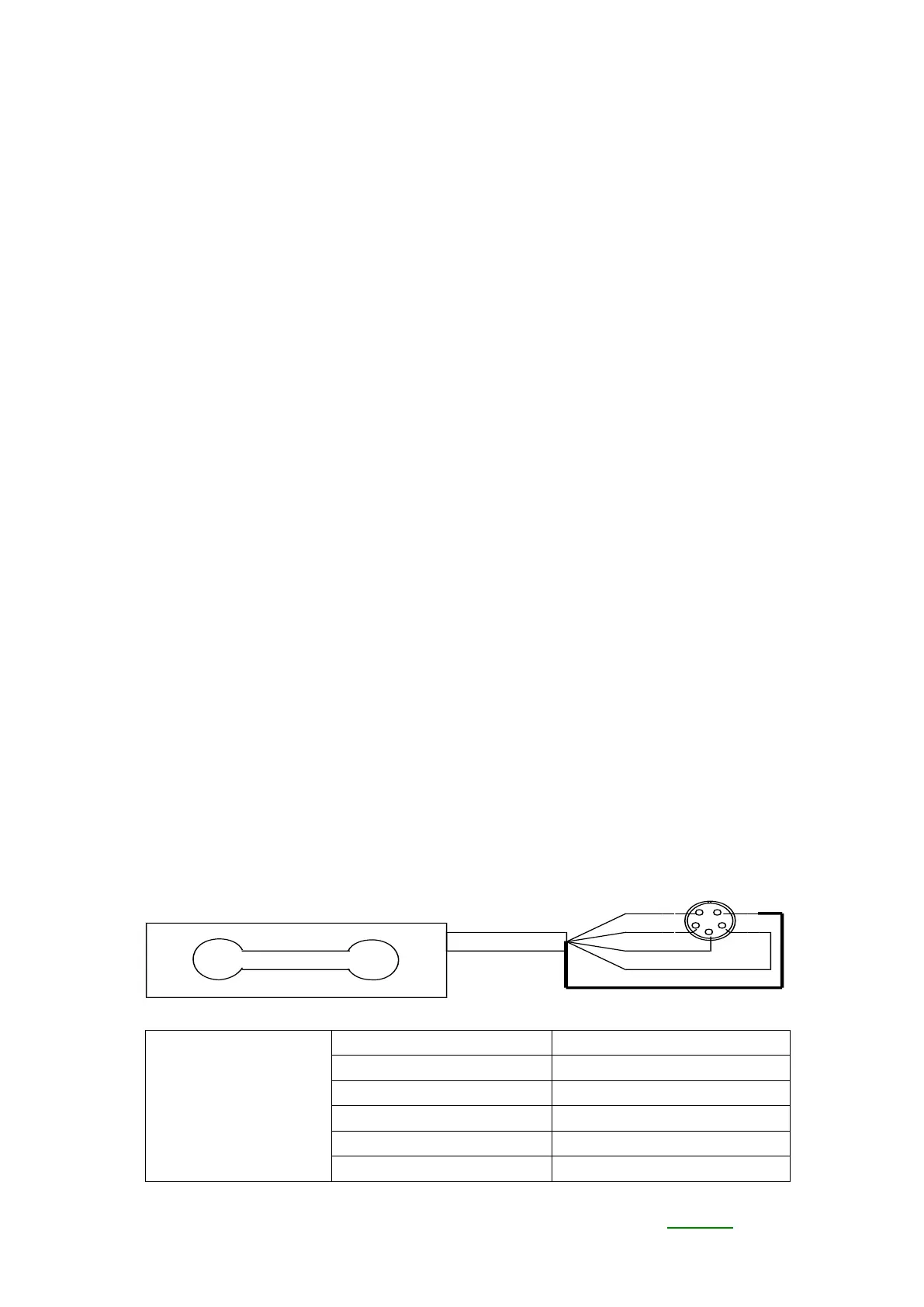

Load Cell Connection:
------------------------------------------------------------
CONN
1
2
3
4
5
E+
E-
S+
S-
LOAD-CELL
Shield
LOAD CELL
CONNECTION
PIN
SIGNAL
1
E+
2
E-
3
S+
4
S-
5
SHIELD
