JADEVER JCE/JWE Service Manual - V05
As per the right of proprietary intellectual property, may not be reproduced in any form without written permission.
4
1-5 Overview of display & keys

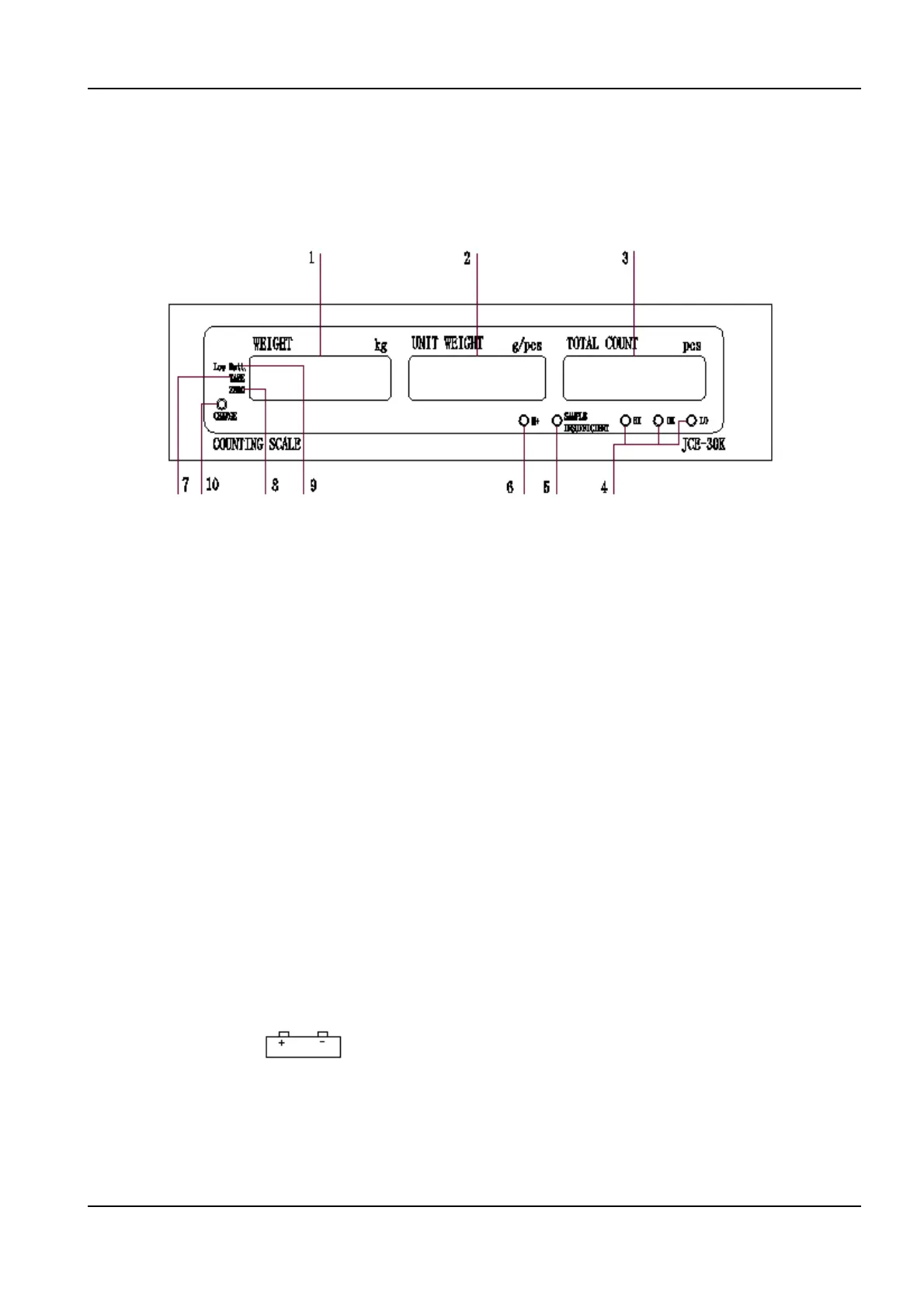

LCD DISPLAY OF JCE
1. Weight-------- Display the total weight
2. Unit weight----Display the unit weight
3.
Total count----Display the number of counting
4. HI, LO, OK----Indicators for checking function
5. Sample insufficient----- Indicate when sample is less than 10pcs
or unit weight is smaller than 4/5 of min.
weighing capacity
6. Accumulation-------------Indicate when accumulating
7. TARE---------- “TARE” shown on the display indicating tare weight is set
8. ZERO--------- “ZERO” shown on the display after reset of the
weight to zero
9. Low Batt------
Symbol shown on the display indicating battery
low, recharge the battery is required.
10. Charge-------Light in red when charging, light in green when charge is
completed.
