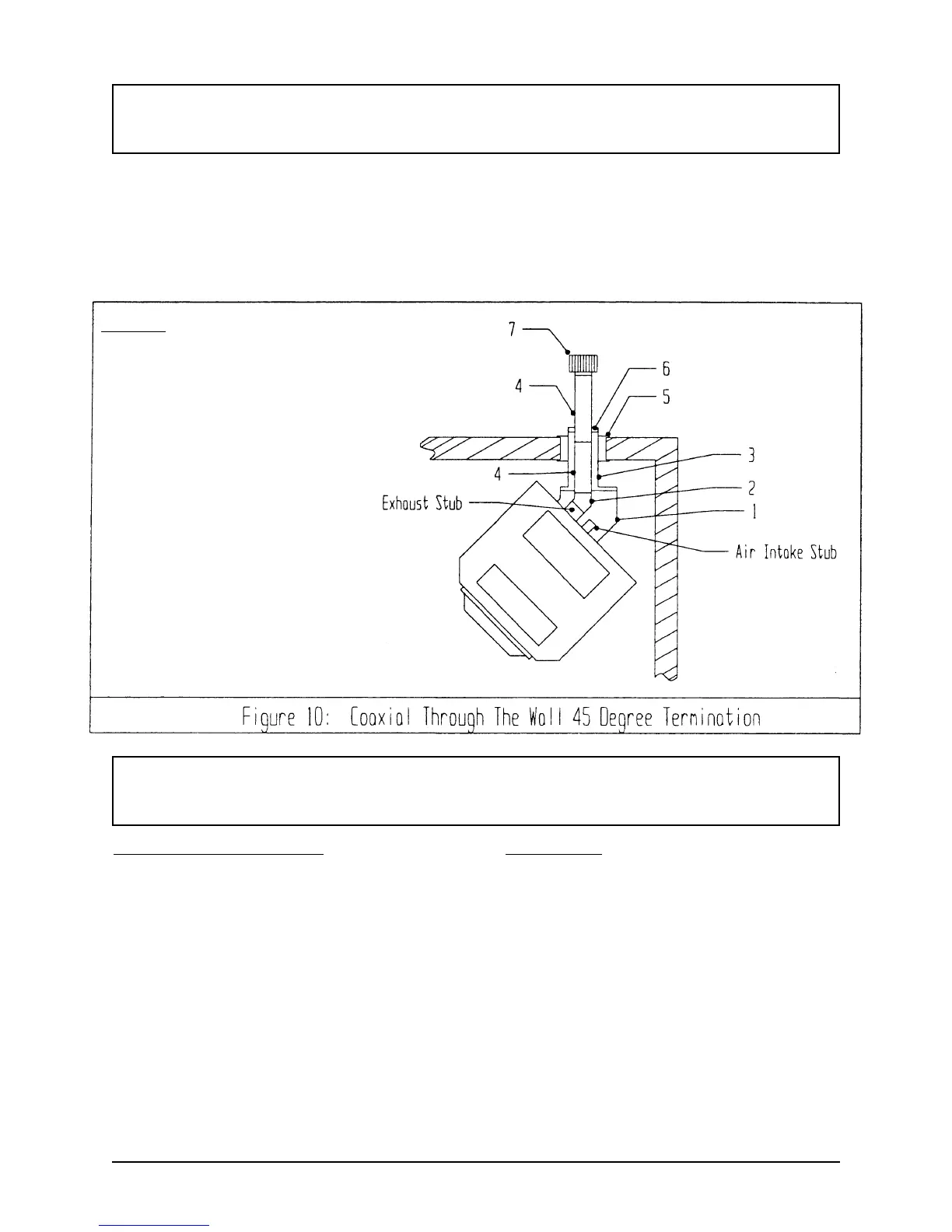

C. Coaxial Through-The-Wall 45° Horizontal Vent Termination
(Corner Installations)
Page 20
1998-2006 Edition
Coaxial Through-The-Wall 45° Vent System Installation
Instructions JAMESTOWN J3030A and J3030B KITS
If installing the pellet stove in a corner and a coaxial horizontal vent system is desired, the Jamestown
J3030A 45 Degree Vent Kit (for model J3000A) or the Jamestown J3030B 45 Degree Vent Kit (for models
J1000B and J2000T) is required in addition to the Jamestown J3020A kit. The J3030A kit or J3030B kit and
the J3020A kit, when combined, contain all the materials that are necessary to complete a coaxial through-
the-wall 45 degree horizontal vent system.
1. Determine the final position of the stove. Refer to Chapters III and IV (Clearances to Combustible Materials
Requirements) to ensure that the final position of the stove adheres to all the listed requirements.
2. Determine the vertical distance between the floor and the center of the 9" (229mm) hole that you will need to cut
in the wall by using Figure X, Table 1 on Page 14.
This kit contains the following parts:
One 45 degree housing extension (J3030B kit only)
One 3" (76mm) 45 degree elbow
One 45 degree elbow housing adapter
One 3" (76mm) exhaust pipe extension
One 4-3/4" (121mm) coupler
One 4-3/4" (121mm) air intake pipe extension
Twenty four #8 x 1/2" self drilling and tapping screws
Six #8 x 1/2" Phillips screws with matching nuts
Tools Required:
Electric drill with 1/4" hex driver
Saw to cut a 9" (229mm) diameter Hole in the wall
Phillips head screw driver
Parts List
1. 45º Adapter
2. 3” (76mm) Diameter 45º “L”
3. Air Intake Adapter with 5” (127mm) Air Pipe
4. 3” (76mm) Exhaust Pipe Extension
5. 5” (127mm) Wall Thimble
6. Air Intake Wall Thimble
7. Exhaust Cap with Rodent Screen
