Appendix B-1
1998-2006 Edition
APPENDIX B
CAST LEGS J2067T AND GOLD LEGS
J2068T KITS FOR APPLIANCE MODELS
J1000B and J2000T
Parts List
1.Four Cast Legs (Black or Gold)
2.Eight 1/4" x 1" (20nc) Bolts
3.Eight Lock Washers
Tools Required
1. Adjustable Wrench
2.Phillips Screw Driver
1. After having removed the packaging material from around the appliance, tip the unit on its back and lay it
gently on a non-abrasive surface such as carpeting.
2. Locate the Leg mounting holes according to Figure 1, 2 or 3, depending on the model you
purchased.Please note that each hole has a weld nut on the inside of the stove bottom.Locate the packages
of bolts provided with this leg kit.

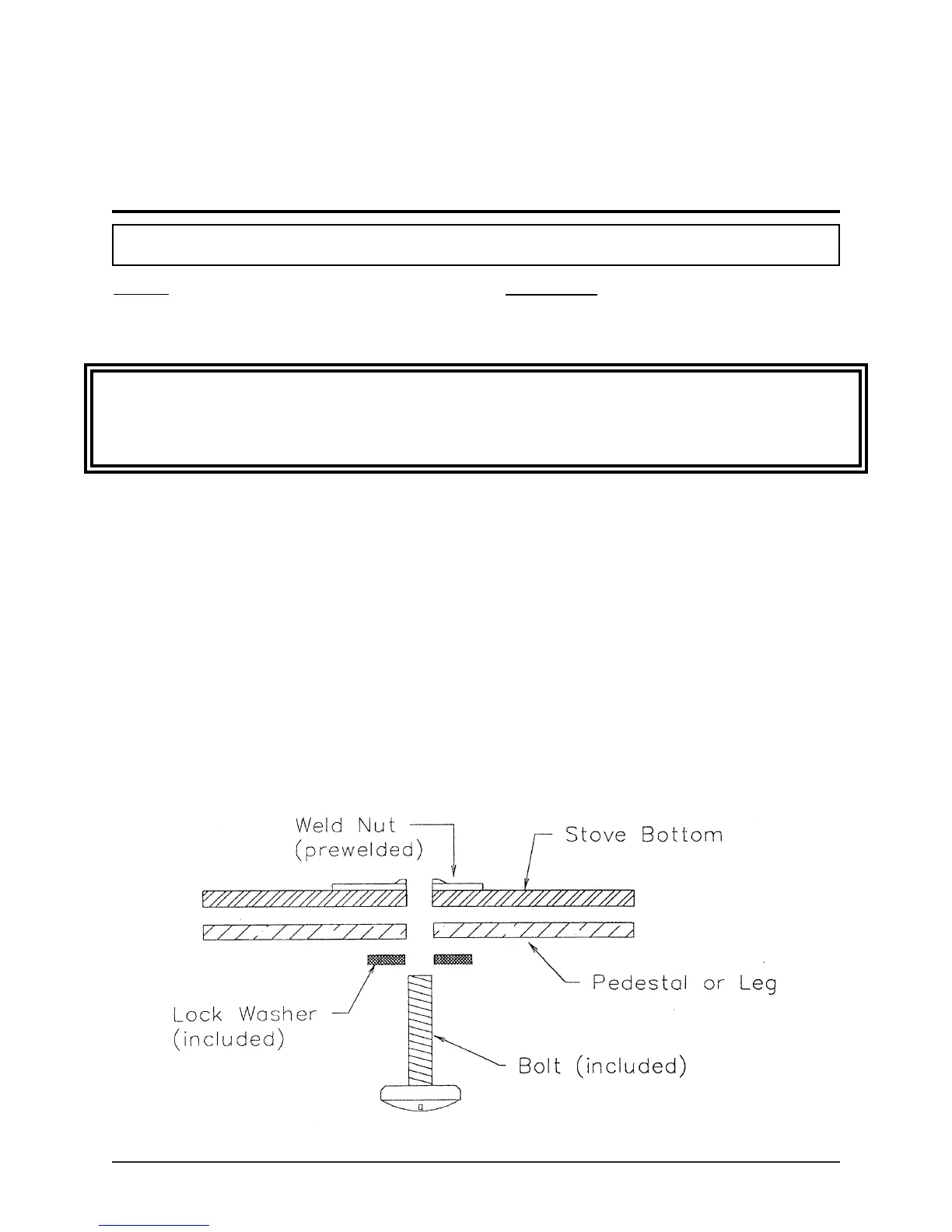

3. Attach the legs to the stove bottom using the method shown in Figure 2. Note: For the front legs, the
decorative side of the legs (polished side on gold plated legs) should be facing the front of the unit. For the
rear legs, the decorative side of the legs should be facing the rear of the unit.
4.Thread each bolt into the weld nut by hand;making sure that the bolt and nut thread pattern are not cross-
threaded.
5. Hand tighten each bolt.
6.Tighten using an adjustable wrench.
7. Lift the unit to its upright position.
Caution
If any part of the appliance is damaged during this installation, you will be responsible for the replacement costs. High
Energy Manufacturing Ltd. does not guarantee or warrant any parts that you damage during this installation.
Installation Instructions
