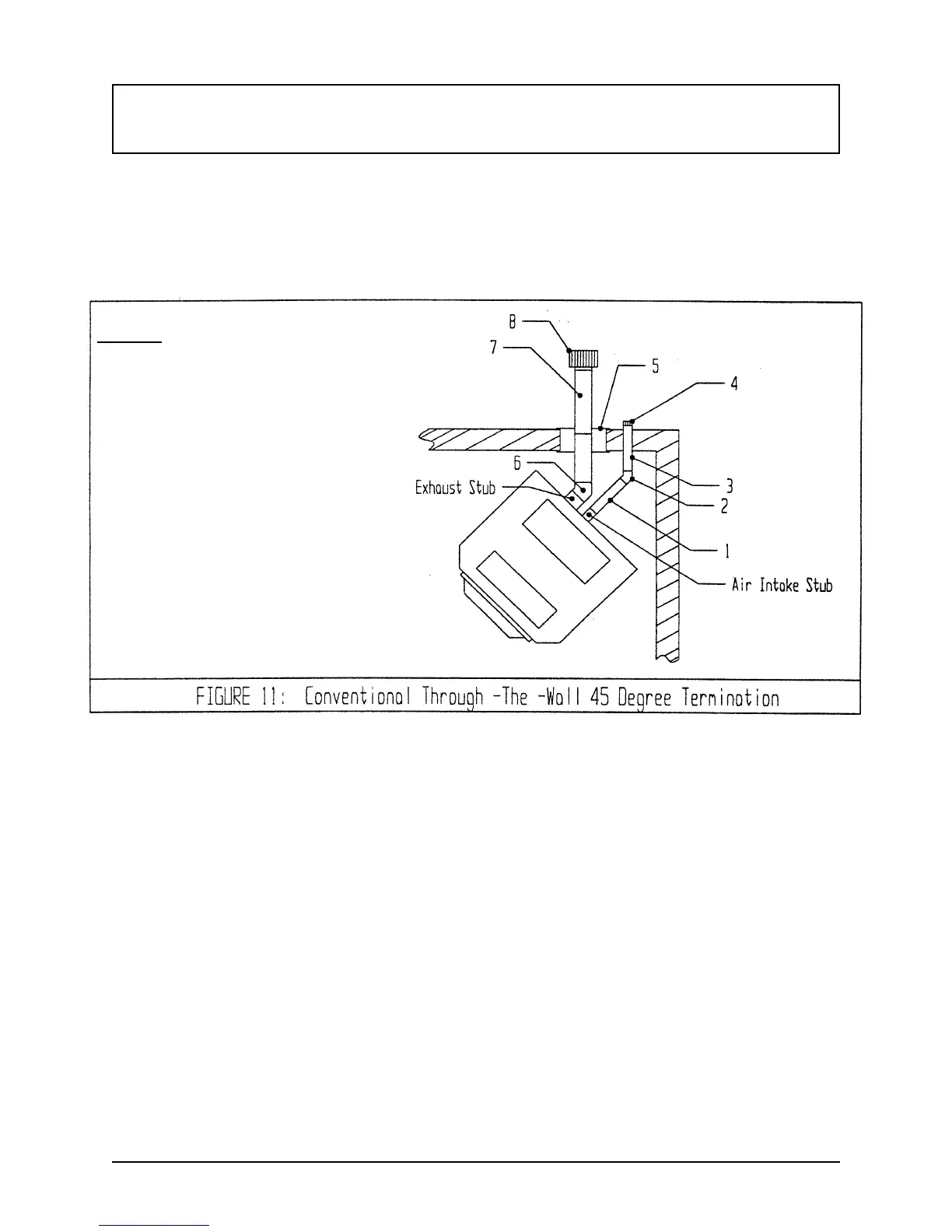

D. Conventional Through-The-Wall 45° Horizontal Termination
(Corner Installations)
Page 24
1998-2006 Edition
If a free-standing pellet stove is installed in a corner and a Conventional Through-The-Wall vent system is
desired, connect a 45 degree L (L-type) to the 3" (76mm) exhaust stub located on the back of the stove. Rotate
the 45 degree L towards the wall along which the vertical vent system is to be run. Complete the vent system
by following the Conventional Direct Through-The-Wall Vent System installation instructions under Section B.
Parts List
1. 1-5/8” (41mm) ID Pipe, Metallic,
Minimum Thickness 0.16” (4mm)
2. 1-5/8” (41mm) ID 45º Elbow (optional)
3. 1-5/8” (41mm) ID Pipe or Hose Section
4. 1-5/8” (41mm) ID Rodent Screen
5. 3” (76mm) PL-Type 45º “L”
6. 3” (76mm) PL-Type Vent Pipe
7. 3: (76mm) Exhaust Cap with Rodent Screen
