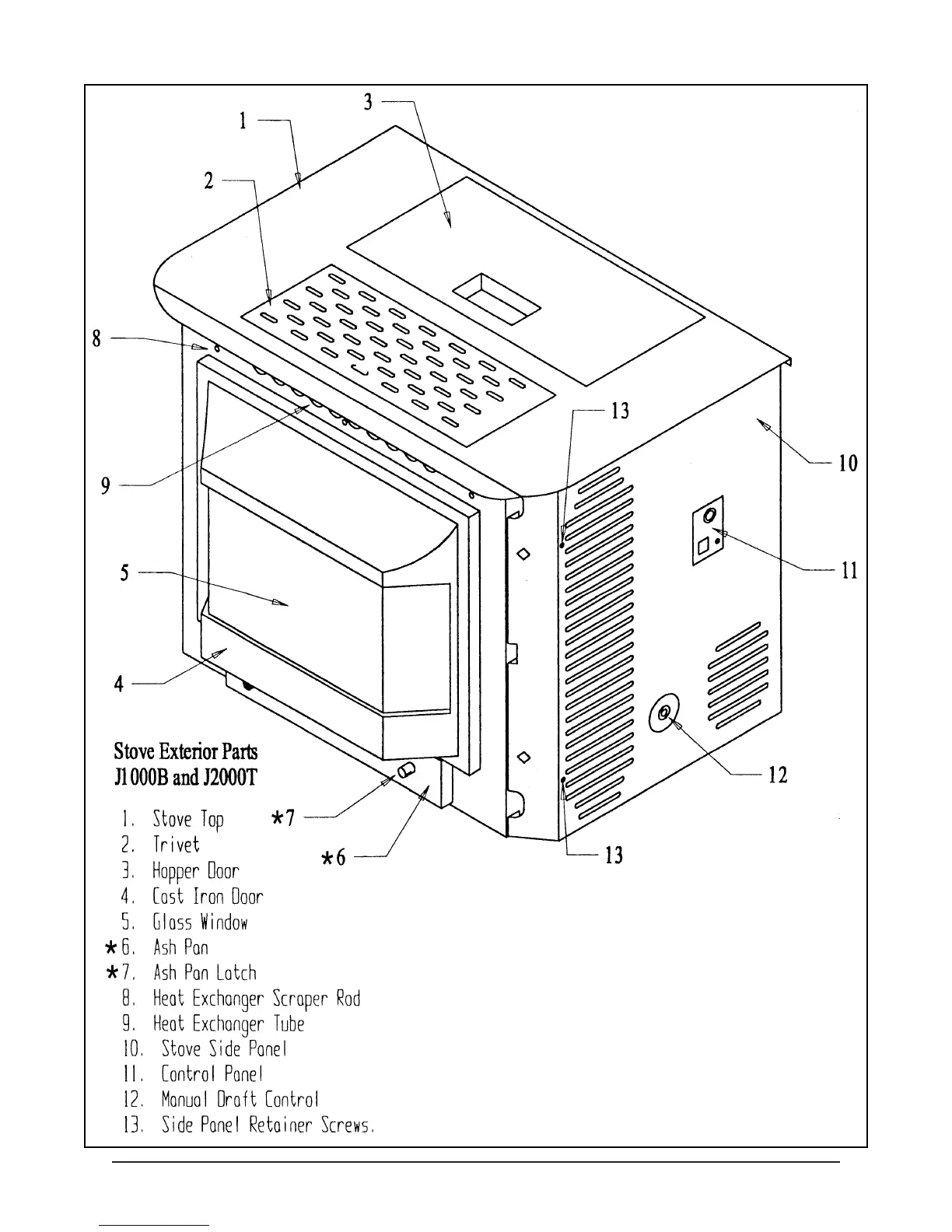

Jamestown J2000T - J1000 B and J2000 T Exterior Parts Identification; J1000 B;J2000 T Exterior Parts Diagram

Page v
1998-2006 Edition
Notes:
Drawing is not to Scale or Proportion.
*
Ash Pan (6) and Ash Pan Latch (7)
are on models J2000 AND J2001T ONLY.
REFERENCES TO THE ASH PAN AND THE ASH PAN
LATCH THROUGHOUT THIS MANUAL REFER TO
MODELS J2000 AND J2001T ONLY.
MODEL J1000 DOES NOT HAVE AN ASH PAN.
