APPENDIX G
3 PIECE MITERED GLASS KIT
INSTALLATION
Appendix G-1
1998-2006 Edition
GLASS GASKET
03HAA
CENTRE GLASS
04AAB
SIDE
GLASS
04AAA
Warning
Proper care and safety must be followed when removing broken glass. Only use factory approved
replacement glass and gasket material.
Do Not Slam The Door
Caution:
Do not attempt to clean glass while HOT! Allow sufficient time for cooling. Do Not Use Abrasive

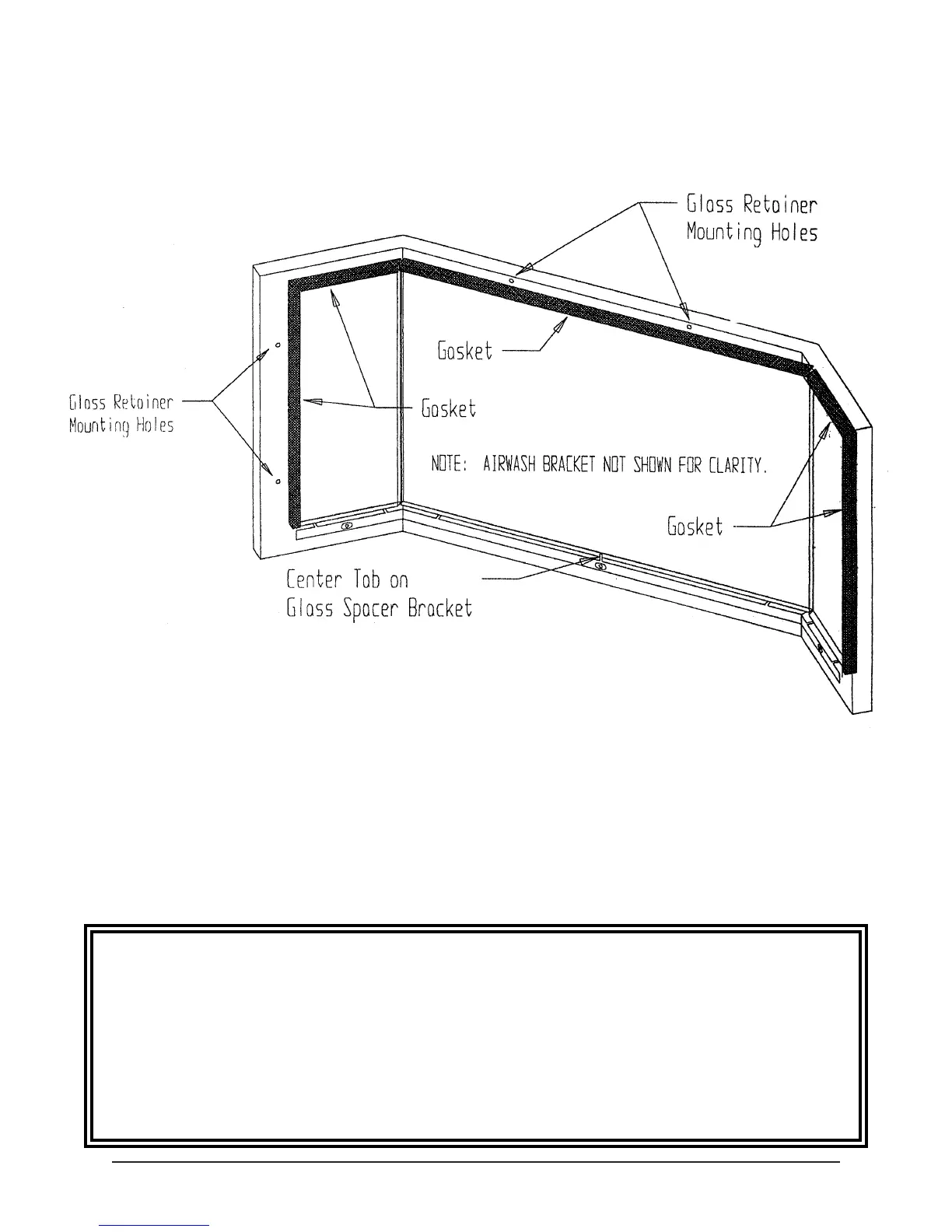

Step 1: After having installed the Glass Spacer Bracket and the “Airwash” Bracket on the windowsill,
wrap the outer edges of the pieces of glass as shown here with glass gasket material. Wrap each
glass piece using a separate piece of gasket.
Step 2: Place the larger center glass inside the doorsill cavity. Please note that the gasket must be
along the top edge of this glass piece. Also note that at the bottom, the glass must sit behind the
vertical center tab that is part of the glass spacer bracket.
Step 3:Place side glass piece inside the windowsill cavity.Please note that the mitered edge of these
two pieces must butt against the side edges of the center glass and the gasket material on these side
pieces must wrap around the outer and top edge.
(Step 4 on next page)
