Page 12
ENGLISH
Jandy
®
Pro Series, CS Single Element Cartridge Pool & Spa Filter
|
Installation & Operation Manual
Key
No. Description Part No.
1 Top Housing Assembly CS100, CS150 R0461900
1 Top Housing Assembly CS200, CS250 R0462000
2 O-Ring, Tank Top R0462700
3 Inlet Diffuser with Locking Tab R0462100
4 Cartridge Element, 100 Sq. Ft., CS100 R0462200
4 Cartridge Element, 150 Sq. Ft., CS150 R0462300
4 Cartridge Element, 200 Sq. Ft., CS200 R0462400
4 Cartridge Element, 250 Sq. Ft., CS250 R0462500
5 Tailpiece, Cap and Union Nut Set
(Set of 3), 2" x 2 1/2"
R0461800
5 Tailpiece, Cap and Union Nut Set
(Set of 3), 50mm
R0462600
6 Breather Tube, CS100, CS150 R0462801
6 Breather Tube, CS200, CS250 R0462802
7 Bottom Housing Assembly R0462900
8 Pressure Gauge, 0-60 psi R0556900
9 Clean/Dirty Snap Ring R0468200
10 Pressure Gauge Adapter R0557100
11 Air Release Valve R0557200
12 O-Ring Set R0466300
13 Universal Half Union (Set of 1) R0522900
14 Drain Cap Assy R0523000
1
8
11
2
6
4
5,13
5,14
5,13
7
3,7
10
12
12
12
12
9
Section 9. Parts List and
Exploded View
9.1 Jandy Cartridge Filter, CS Series

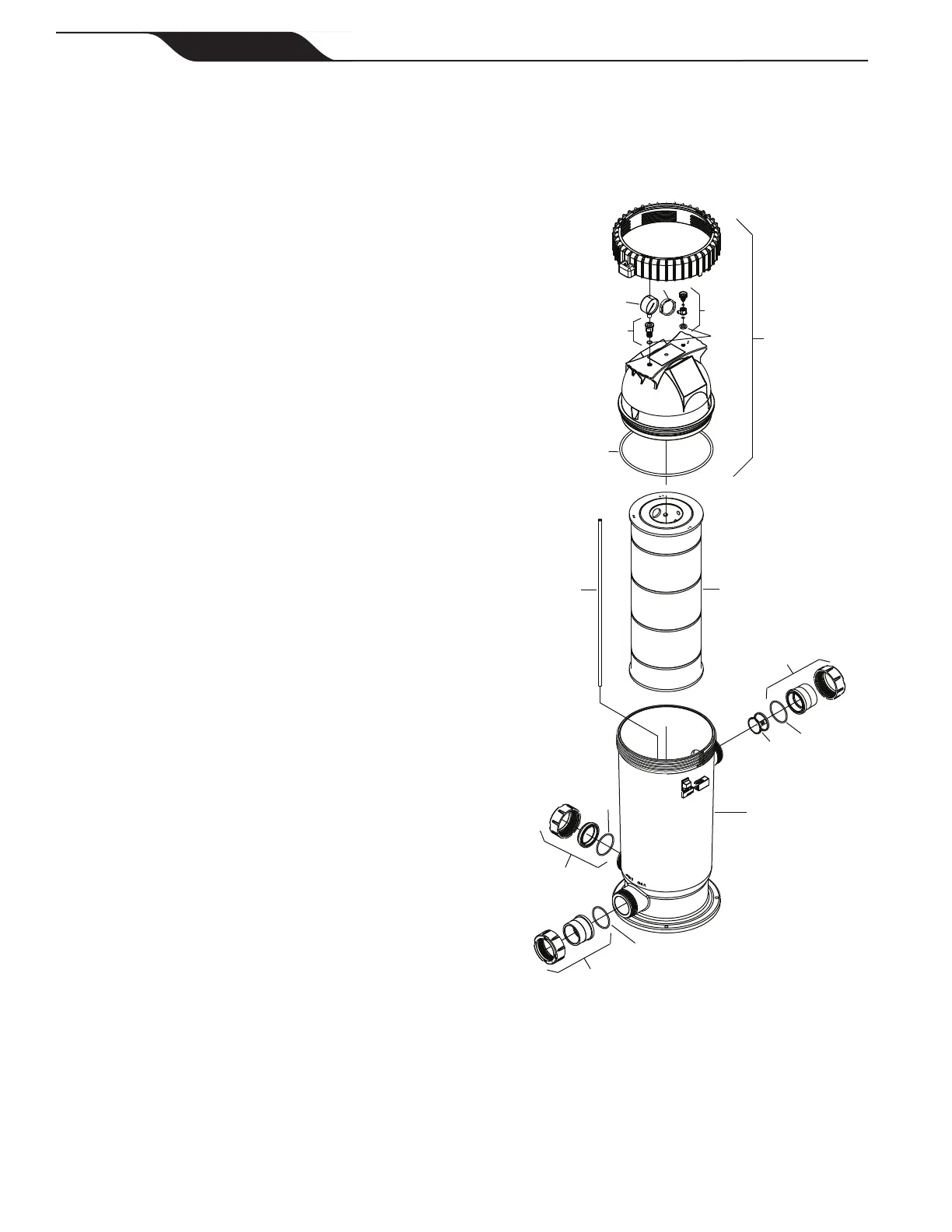

9.2 Jandy CS Cartridge Filter Exploded
View
