Nicheless Underwater LED Lights | Owner’s Manual
Nicheless Underwater LED Lights | Owner’s Manual
WARNING
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION,
which could result in serious injury or death. The Jandy Pro Series
Nicheless LED Lights are only available for 12-volt AC power.
For supply connection, use only an isolating low voltage power
supply with ungrounded output, evaluated and listed by a NRTL for
swimming pool use.
4.3 Wiring to a Switch
The Jandy
®
Pro Series Nicheless LED Lights can be wired to a switch to
manually operate the lights. Refer to Figure 4 to connect the lights into the
switch.
AquaLink
®
Aux
Black
GFCI*
120 volts to
12VAC
Transformer
White
Ground
*
If required by transformer manufacturer’s instructions
or by local code and AHJ requirements.
Line
Neutral
Ground
Black
Black
White
White
Green
Relay or Switch

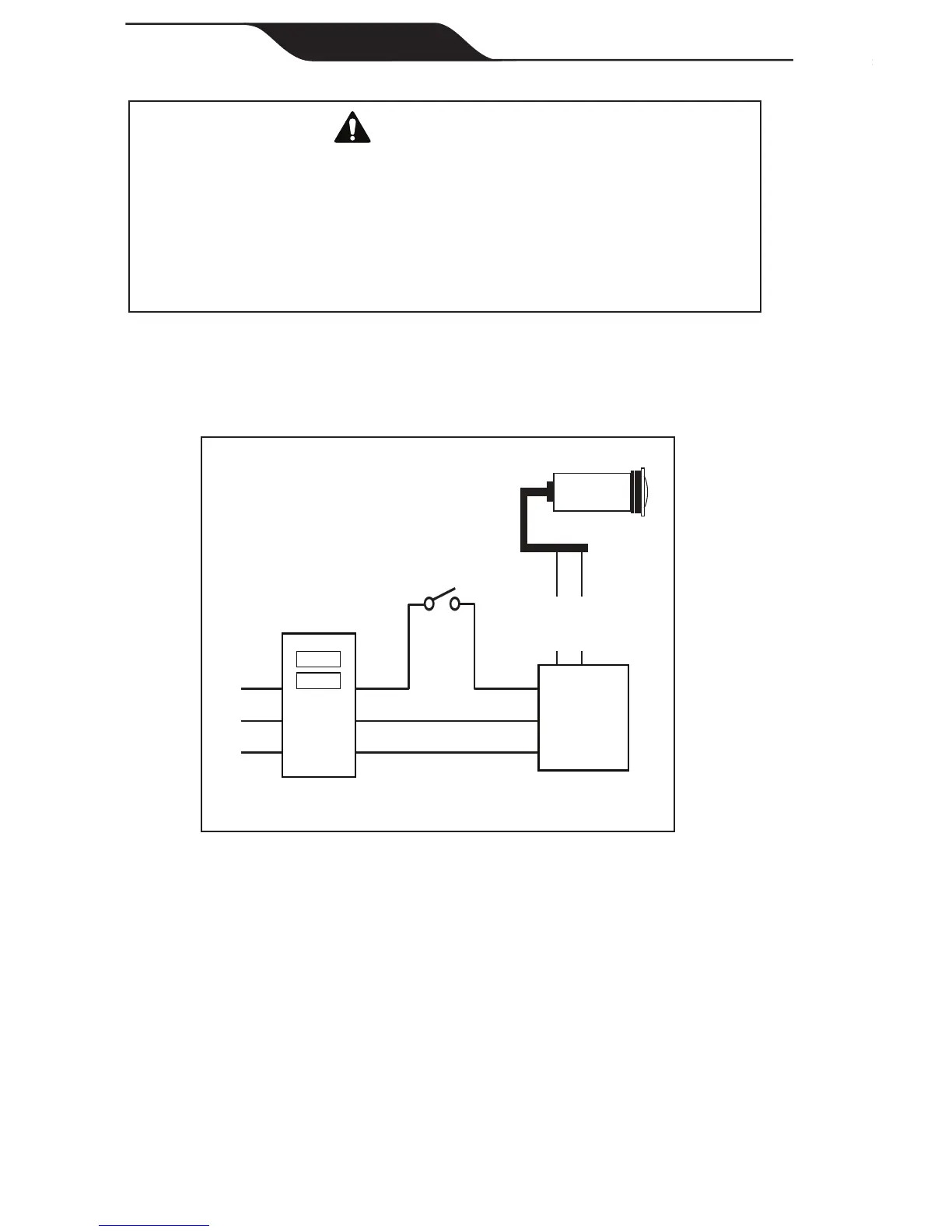

Figure 4. Wiring Jandy Pro Series Nicheless Underwater Lights
4.4 Twelve (12) Volt Installation
A 12-14 Volt AC Magnetic Transformer must be used to power all 12-Volt
lights.
NOTE For optimum performance Jandy Pro Series recommends not
exceeding the load factor specied by the instructions included with
the transformer.
To ensure maximum safety, use only a Class 2 magnetic transformer that
can supply 12-14 Volts AC to power all 12-Volt lights. The transformer
must be listed or certified by a Nationally Recognized Testing Laboratory
(NRTL) for the intended use.
