Pro Series Sand Filter SFTM22-1.5, SFTM24-2.0
|
Installation & Operation Manual
15
20
25
30
35
40
45
PRESSURE DROP - FEET

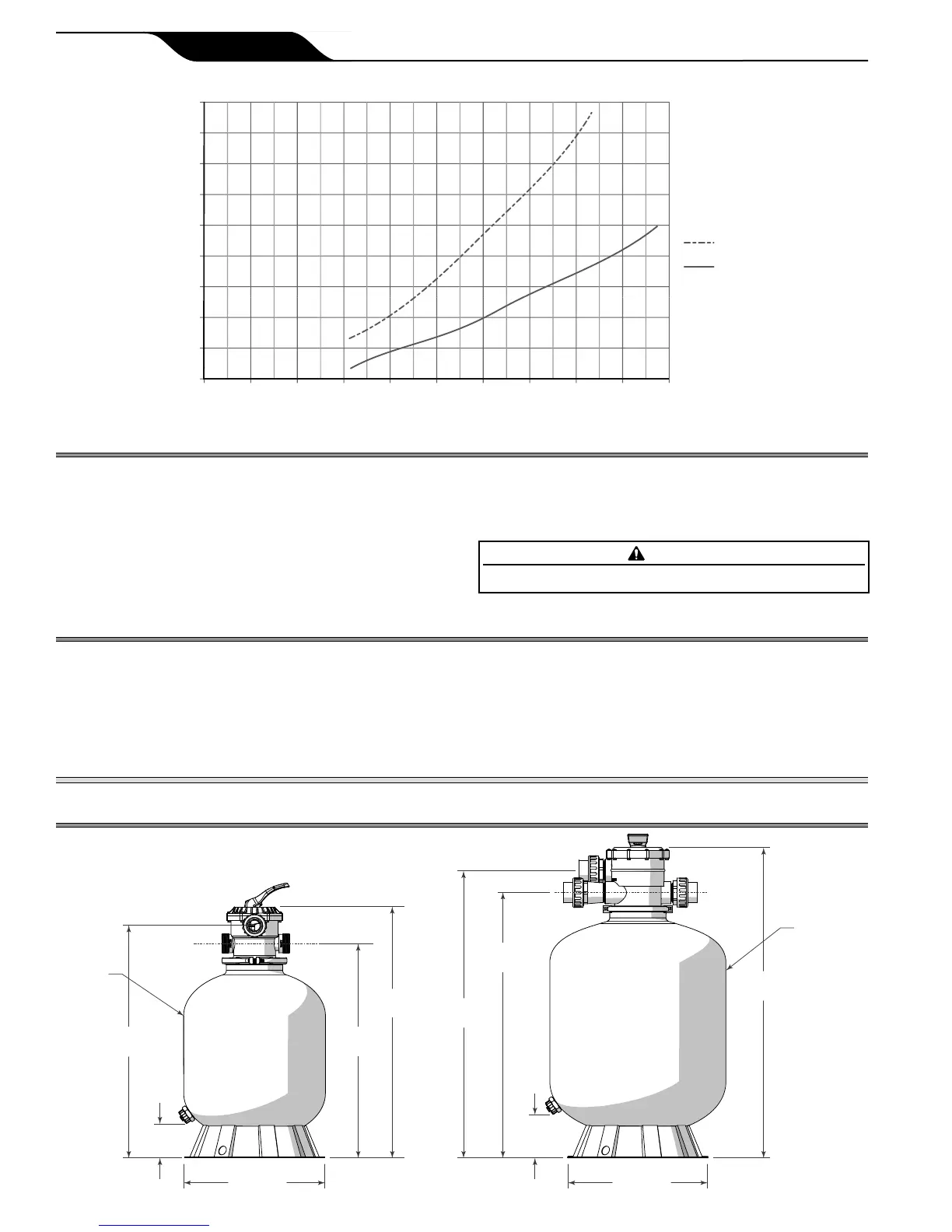

SFTM22-1.5 AND SFTM24-2.0 PERFORMANCE
SFTM24-2.0 FLOW
SFTM22-1.5 FLOW
0
5
10
0 10 20 30 40 50 60 70 80 90 100
FLOW - GPM
5.4 CHANGING THE FILTER SAND
Filter sand will need to be removed from the multiport
valve opening.
1. Loosen bolts from clamp.
2. Remove clamp.
3. Remove Multiport Valve.
4. Use a wet/dry vacuum or similar suction device to vacuum old
sand from filter tank.
5. Keep enough water in filter tank to keep sand in a semi fluid
“slurry” state
6. Using steps from “4.4 Fill With Sand” on page 6 replace the
sand in the filter.
WARNING
Besuretodisposeofusedltersandappropriately.Usedltersandisnot
appropriate for human or pet contact
5.5 WINTERIZING
Turn off the pump.
1. Move the Multiport valve handle to “Winter”.
2. Remove any drain plugs from the filter.
3. Vent the filter by removing the pressure gauge or disconnecting
one of the unions.
4. Drain system piping of all water.
5. Cover the system with a tarpaulin or plastic sheet to protect
from the weather.
SECTION 6. DIMENSIONS AND REPLACEMENT PARTS
6.1 APPROXIMATE DIMENSIONS
4”
(106mm)
4”
(98mm)
Ø
23.75”
(603mm)
Ø22”
(558mm)
35.75”
(908mm)
38.75”
(984mm)
19”
(483mm)
19”
(483mm)
41.85”
(1.06m)
31”
(783mm)
36”
(910 mm)
33”
(844mm)
SFTM22-1.5 SFTM24-2.0
