ENGLISH
Jandy
®
Variable-Speed Pumps, DV/DVS Models
|
Installation & Operation Manual
for detailed instructions on installation and programming.
1/2” NPT Threaded
Low Voltage
RS-485 Wiring Ports
(Liquid Tight
Cord Grip Included)
1/2” NPT Threaded
High Voltage
Conduit Ports
(Conduit Fittings
Not Included)
3-YELLOW
2-BLACK
4-GREEN
1-RED
RS-485 Cable (22 AWG)
Bonding Lug
Detail A
(see
Detail A)
Power and Ground
Terminal Block
RS-485
Connector
High Voltage
Section
Low Voltage
Section
Dip
Switches
3-4
Liquid Tight
Cord Grip
Wire Order:
- Ground
L2/N - Line 2/Neutral
L1 - Line1

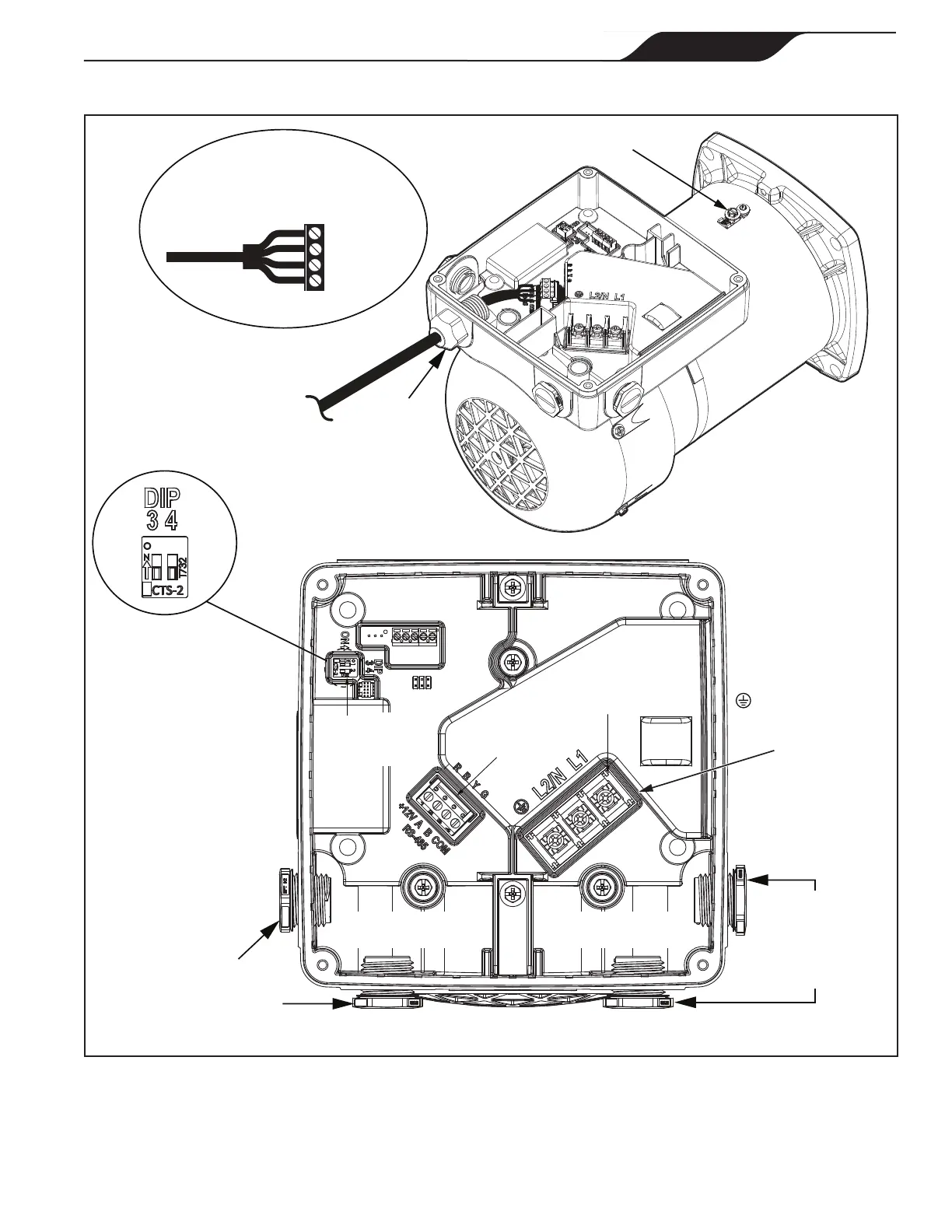

Figure 8. Wiring Diagram (115v/230v Main Power and RS-485 Connection)
